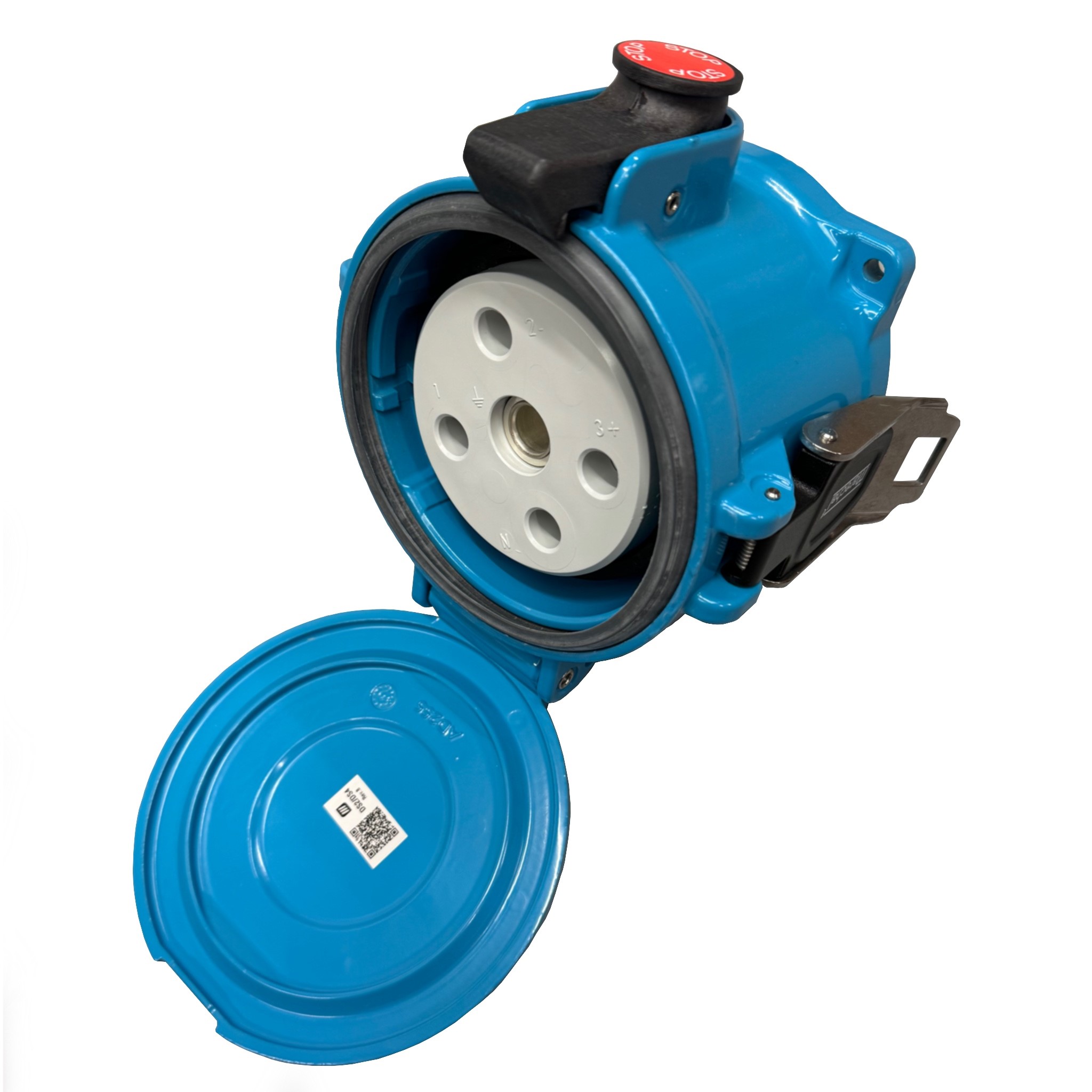

Marechal DS2 SOCKET METAL BLUE IP55 3P+N+E 250A 400V AC 3924017 (1)

Marechal DS2 SOCKET METAL BLUE IP55 3P+N+E 250A 400V AC 3924017

Call us now, with your technical specifications; Marechal products are built to order in 7 -10 days.

The DS family of decontactors offer ratings from 30 to 250 A (ratings specified by IEC 60309-1). Both sockets and inlets are available in metal version from 90 A rating.
Main advantages of industrial power supply
·         Extensive offer of current ratings
·         Waterproof electrical connectors IP66/IP67
·         AC-22 AND AC-23 breaking capacity
·         GRP or metal casing (up to IK09)
·         Simple connection
·         Long life.

Marechal products are built to order, typical build time is 7 / 10 days. Please call us to discuss your requirements.


A wealth of functions and added value

Safety

• Load-break release button

A button placed on the top of the safety socket enables you, with a single press of this button, to disconnect the equipment up to 250 A. This operation can be performed by anyone. The plug can therefore be removed in complete safety. The power outlet manoeuvre is safe and does not represent an electrical hazard.
It guarantees operating speed and saves time during installation operations or machine shutdown.

• Safety shutter

This safety shutter protects the user (IP4X/IPXXD). The live contacts are inaccessible behind this closed shutter.

Sustainability

• Crimped braiding
