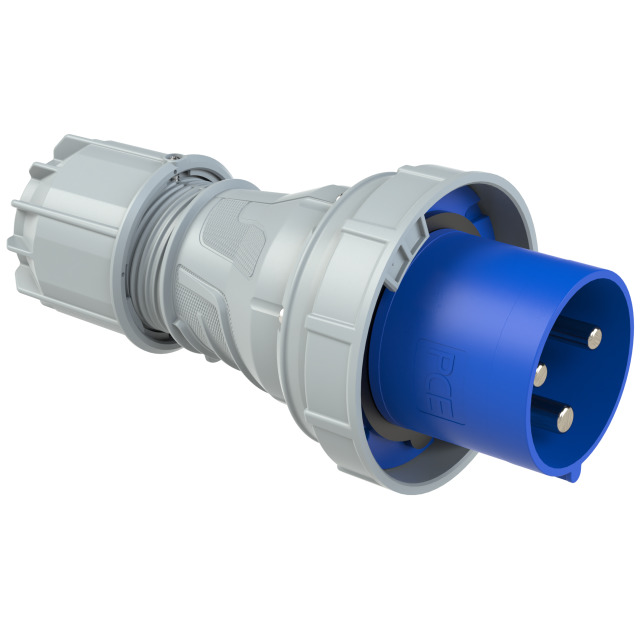

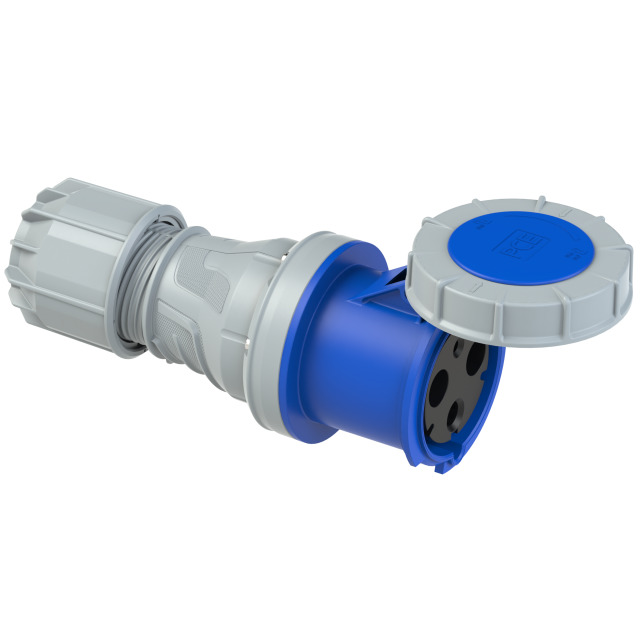

5 Metre H07RN-F 35mm² Rubber Cable with 125A 2P+E 230V Plug & Connector IP67
Our No: 4078
Manufacturer No: NULL
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £311.60 |
| 4 | 7.5% | £303.40 |
£328.00
£393.60 (inc VAT)
5 Metre Black H07RN-F Rubber 35mm with 125A 2P+E 230V Plug & Connector IP67

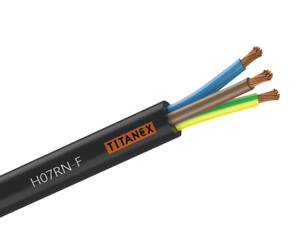

Our made-up H07RN-F extension cables are typically supplied using Nexans Lineax or Titanex black rubber BS7655 450/750V cable, assembled using PCE ( Austria ) Plugs and Sockets.
- For assemblies using Mennekes Plugs and Sockets, please call for the latest prices.
- All made up cables are supplied with full test certificates.
- All standard assemblies have Crimp Bootlace Ferrules.
- Heat Shrink for cable identification.
- Assembled in the UK.
- 12 Month Warranty
- Call for quantity orders where special pricing will be available.
.
HO7RN-F cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, building site power, stage event and audio visual equipment Etc. Also for use in drainage and water treatment, cold and severe industrial environments.
General Information on HO7RN-F Cable and its uses.
BS7919 CENELEC HD22.4 S4 Class 5 flexible plain copper to BS EN 60228:2005 (previously BS6360) EPR (Ethylene Propylene Rubber) Type EI4 to BS7655 450/750V. Conductor operating temperature -30°C to +60°C (85°C max)
Core Identification:
2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 Cores: Green/Yellow, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
6 Cores and above: Black with White numerals, Green/Yellow
Type:
Industrial Commando Extension Cable
Voltage:
230V
IP Rating:
IP67
Number Of Cores:
3 Core
Number Of Phases:
Single Phase (2P+E)
Cable Diameter:
35mm²
Length:
5m
Material:
H07RN-F Rubber
Connector Colour:
Blue
Cable Format:
Male To Female
Current Rating Range:
125A
