PCE Trailing Commando Socket 125A 3P+N+E 400V IP67 2455-6
Our No: 1470
Manufacturer No: 2455-6
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £105.75 |
| 4 | 7.5% | £102.97 |
| 6 | 10% | £100.19 |
£111.32
£133.58 (inc VAT)
CEE-connector 125A 5p 6h IP67 pilot contact POWER TWIST
CEE-connector 125A 5p 6h IP67 POWER TWIST
housing material: PA6
rated current: 125A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: frame terminals with screws
IP protection class: IP66/IP67
Extra: pilot contact with screw terminal (rated current 2A)
Brand:
PCE
Type:
Trailing Socket
Amperage:
125A
Pin Configuration:
3P+N+E (5 Pin)
Voltage:
415V
Colour:
Red
IP Rating:
IP67
Pin Position (Clock):
6H
Incoming Amperage:
125A
Current Rating Range:
125A
Connector Colour:
Red
Related Products
Our No: 1818
PCE Trailing Commando Plug 125A 3P+N+E 415V IP67 045-6
£99.03
Our No: 1457

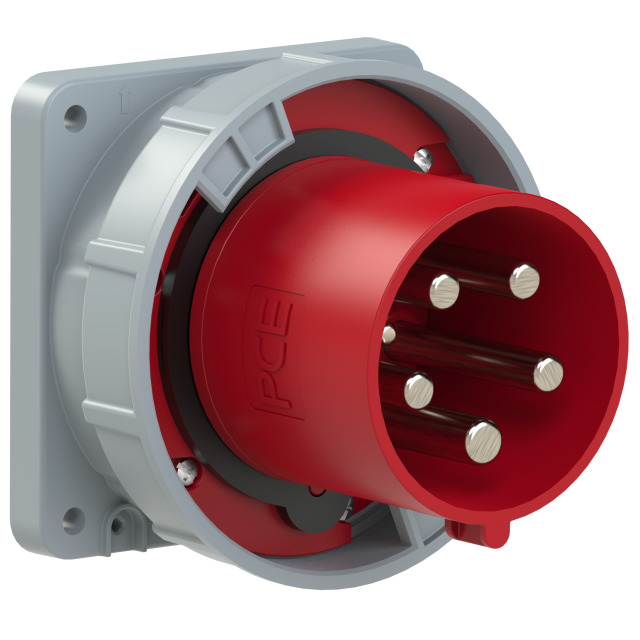

PCE Panel Mount Appliance Inlet 125A 415V 3P+N+E IP67 645-6
£89.00
Our No: 1367

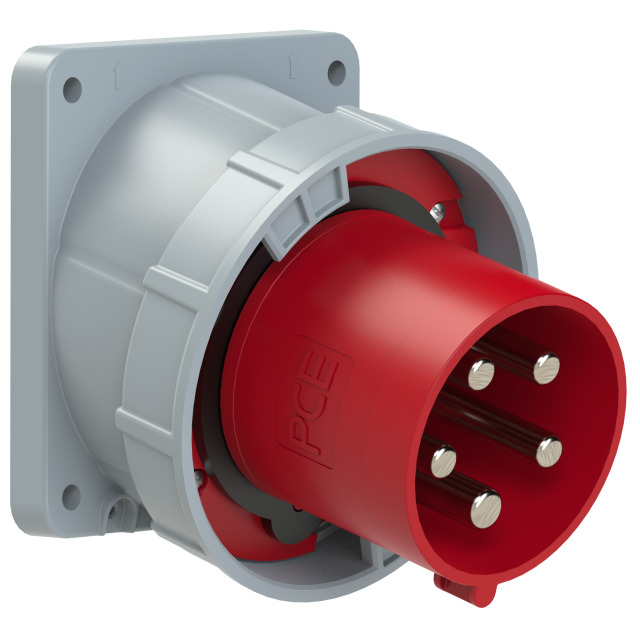

PCE Panel Mount Angled Appliance Inlet 125A 415V 3P+N+E IP67 745-6
£118.83
Our No: 1384

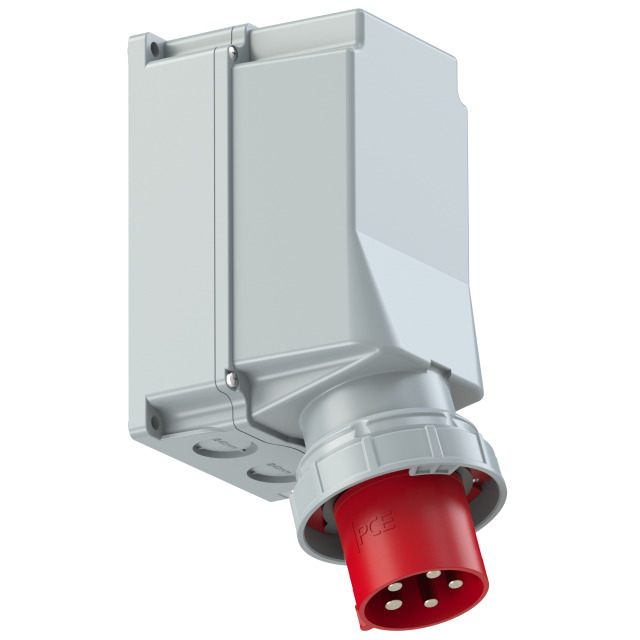

PCE Wall Mount Appliance Inlet 125A 3P+N+E 400V IP67 545-6
