Purchase options available:

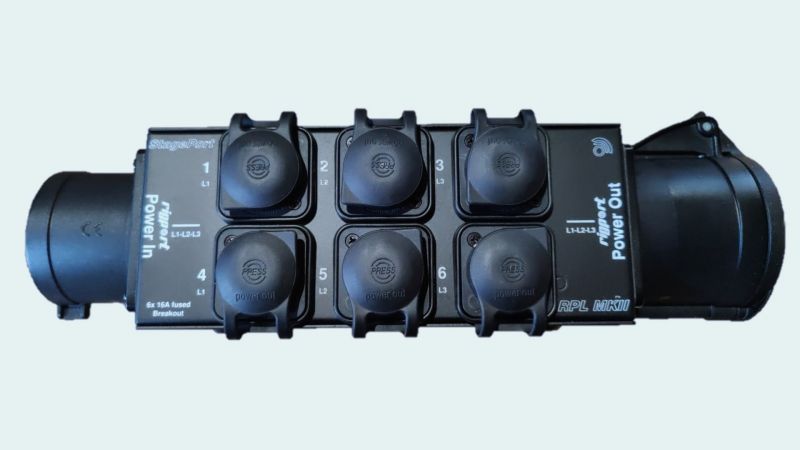

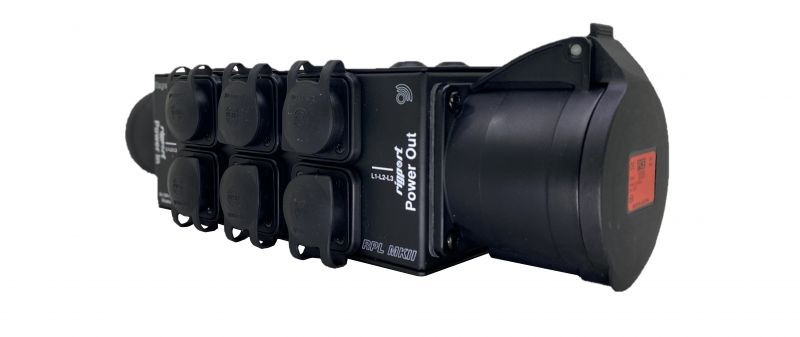

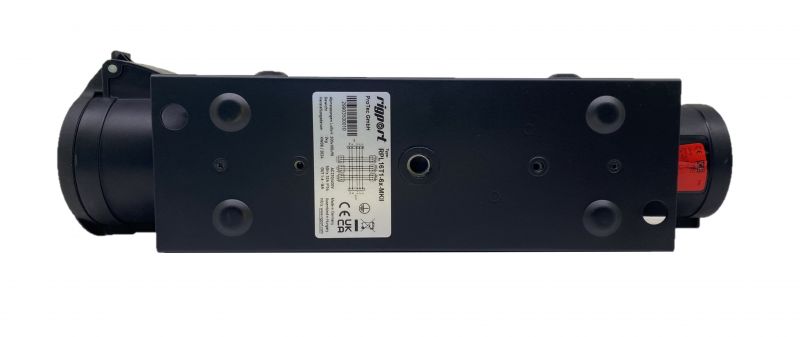

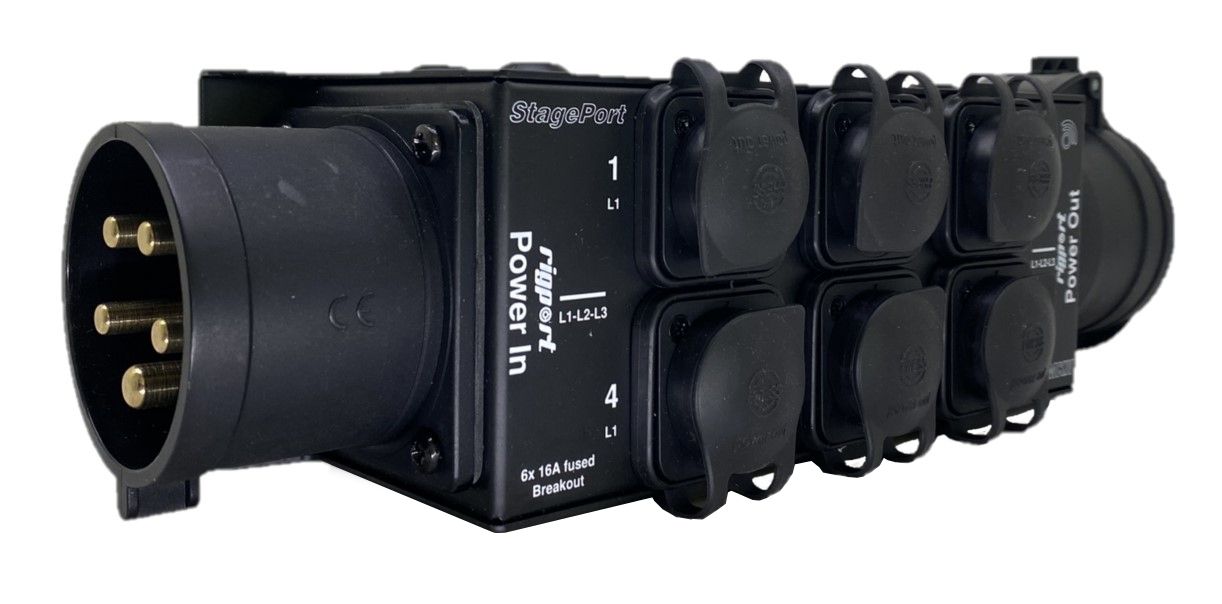

RigPort 1 x CEE16A-3P+N+E 400V to 6 x PowerCon-True1 + Loop out
Our NO: 12229
Manufacturer NO: RPL16T1-6x-MKII
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £179.55 |
| 4 | 7.5% | £174.83 |
£189.00
£226.80 (inc VAT)
Product information "RPL16T1-6x-MKII"
The RPL16T1-6 x-MKII is a CEE16A 3P+N+E 400V, 3-phase power distributor with 6 side outlets/breakouts.
6 x Powercon-T1 taps for all three phases.
16A CEE --> Powercon-T1 BreakoutBox
Specific features:
- CEE in-line 16A 3P+N+E 400V & Through Out.
- small maintenance-free on-stage power distributions
- completely black for the most inconspicuous installation possible

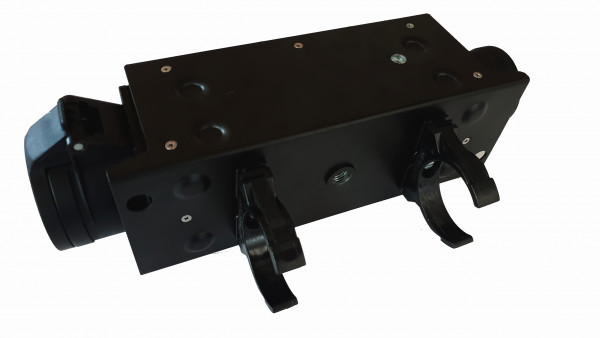

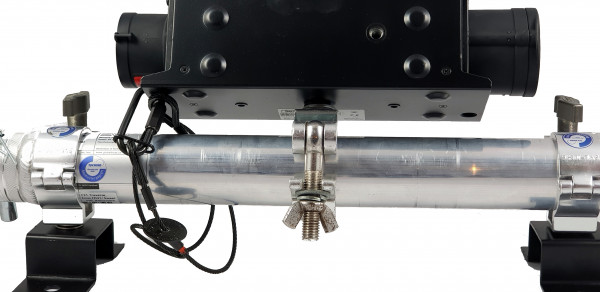

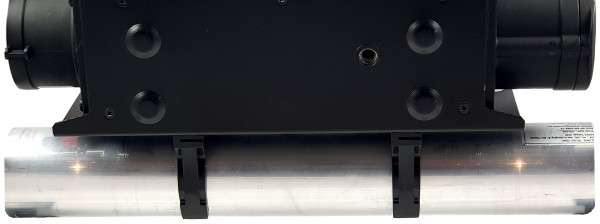

- Can be mounted in the traverse with RPL-Clamp50
- M10 screw mount for attaching couplers, trigger clamps or similar.
- 2 x M4 mount
- suitable for outdoor use
Connections:
- 1 x CEE16-5p-In 16A 3P+N+E 400V
- 6 x TrueOne-Out (2x per phase)
- 1 x CEE16-5p through out 16A 3P+N+E 400V
Technical data:
| Conductor cross-section: | 6mm² |
|---|---|
| HS Code: | 85369010 |
| Material: | Stahlblech |
| Maximum current: | 3x16A out, 3x32A Thru |
| Maximum temperature: | 55°C |
| Measurements: | 321 x 90 x 100mm |
| Protection class: | IP54 |
| Weight: | 2kg |
