PowerBOX 125Amp 3pH+N+E 400V “CASE RACK 19” 15U 4 x Socapex 19 Pin Panel Sockets

Power distribution box, ideal for the stage and events environment, supplied with PCE Midnight Series (Black) plugs and sockets.

• Professional standard 19" rack case, 15U height, made of 10mm thick plywood with black scratch-resistant outer foil.
• 2 front / rear covers.
• 8 handles with rubber grips
• 8 butterfly closures
• 8 rounded corners
• 4 wheels Ø 100 mm in rubber (2 with brake) mounted on skate.
• 2 component-holder panels (front/rear) in PVC-CAW black color 10mm thickness (V0-UL 94) with sealing gaskets.
• Dimensions: W535 x H1070 x D820mm. about (included lids).
• Weight: 90kg. about (equipped).

• PowerBOX 125amp 3pH+N+E 400V “CASE RACK 19” 15U”, p/n PBF125P15U

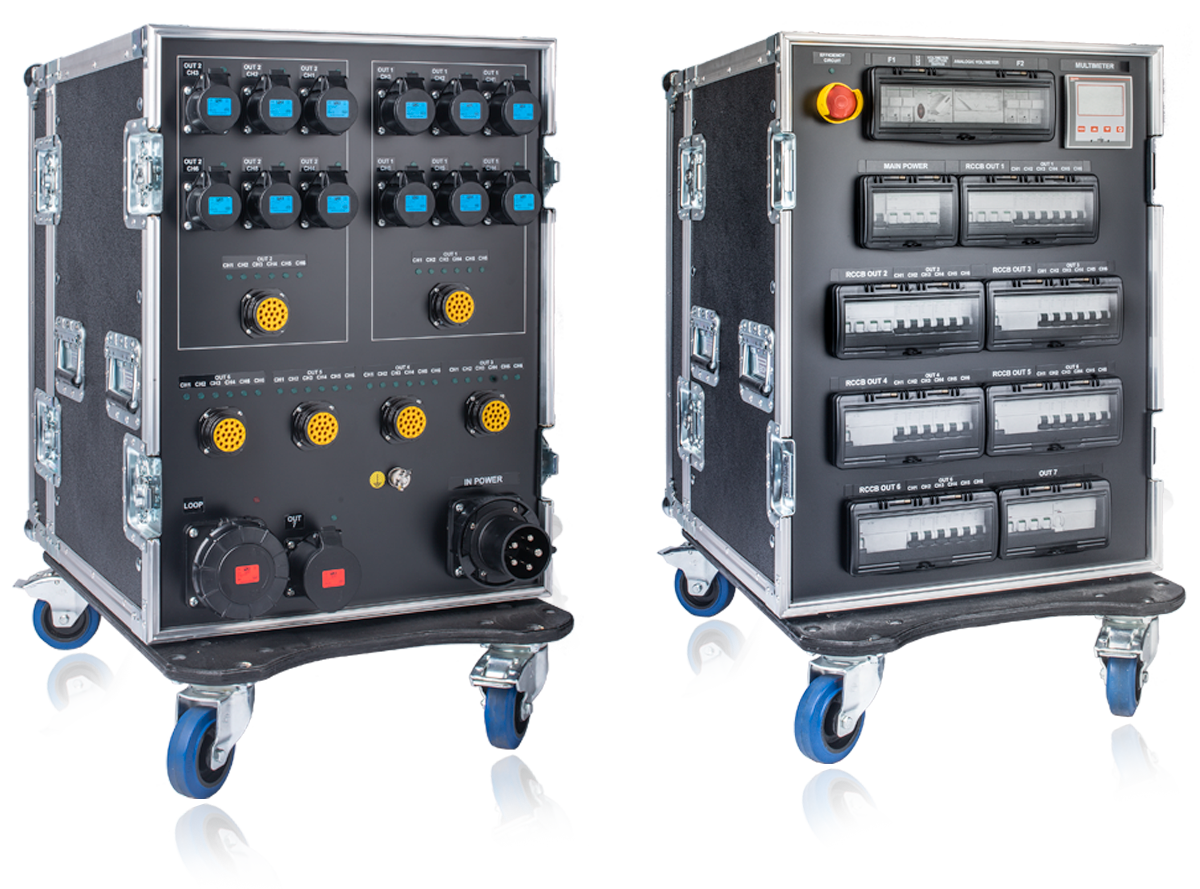

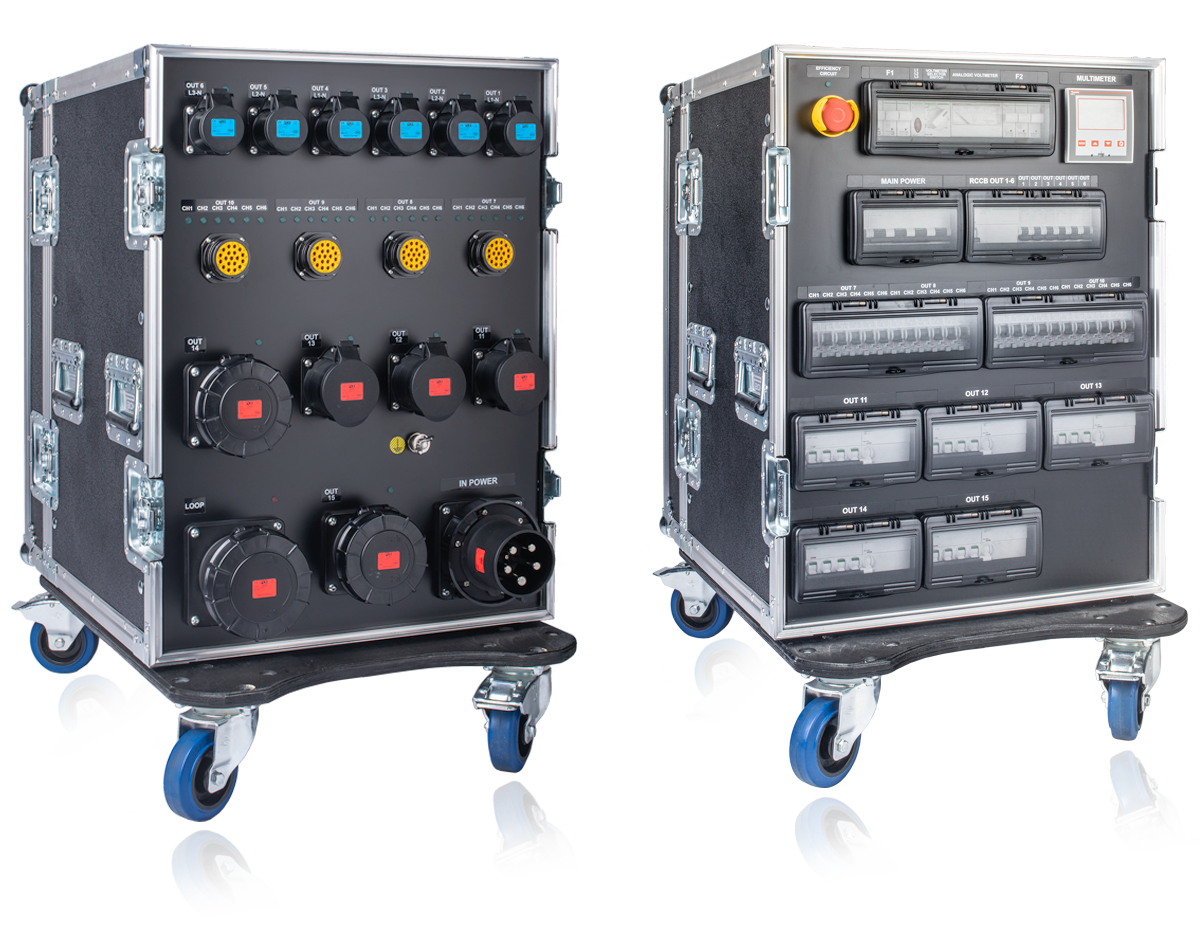

  FRONT  (protection devices & instrumentation):
  1 analogic voltmeter + 1 voltmeter selector switch (control IN voltage)
  1 MCB 125amp 4p-C 10.000A (MAIN) + 1 shunt release + 1 panic button
  1 digital multimeter 96x96mm. with LCD graphic display.
  1 RCCB 40amp 4p IΔn 0,03A Type A  + 6 x MCB 16amp 1pN-C (6 x C-FORM 16amp single-phase)
  24 x RCBO 16amp 1pN-C 6.000A IΔn 0,03A Type A  (4 x SYNTAX SSX 19p)
  3 x RCBO 32amp 4p-C IΔn 0,03A Type A  (4 x C-FORM 32amp three-phase)
  2 x RCBO 63amp 4p-C IΔn 0,3A Type A  (2 x C-FORM 63amp three-phase)

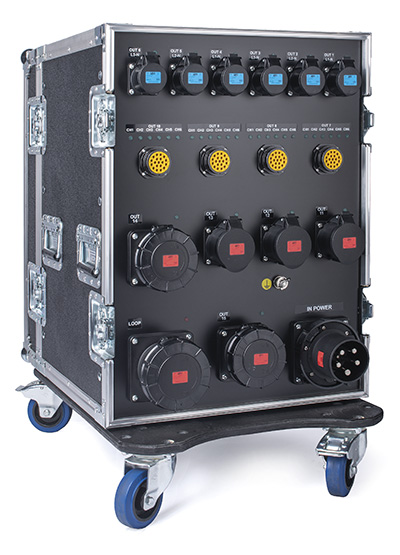

  REAR (incoming & outgoing):
  1 C-FORM 125amp 3pH+N+E  6h 400V IP67 (IN)
  1 C-FORM 125amp 3pH+N+E  6h 400V IP67 (LOOP)
  6 x C-FORM 16amp 1pH+N+E  6h 230V IP44 (OUT)
  4 x SYNTAX SSX 19p IP67 (OUT; Socapex 419 compatible)
  3 x C-FORM 32amp 3pH+N+E  6h 400V IP44 (OUT)
  2 x C-FORM 63amp 3pH+N+E  6h 400V IP67 (OUT)
•
  Nominal data: IEC 61439-1 & 2, Ue=400V 3pH+N+E, fn=50Hz, InA=125amp, Icc=6.000A, IP=44, RDF=50%.

  Note:
  - Schneider Electric brand fuse switch, MCB, RCD and RCBO.
  - wired, tested and ready for the final installation.

  CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Available in many differennt configurations, built to your individual specifications. Call us to build yours.
