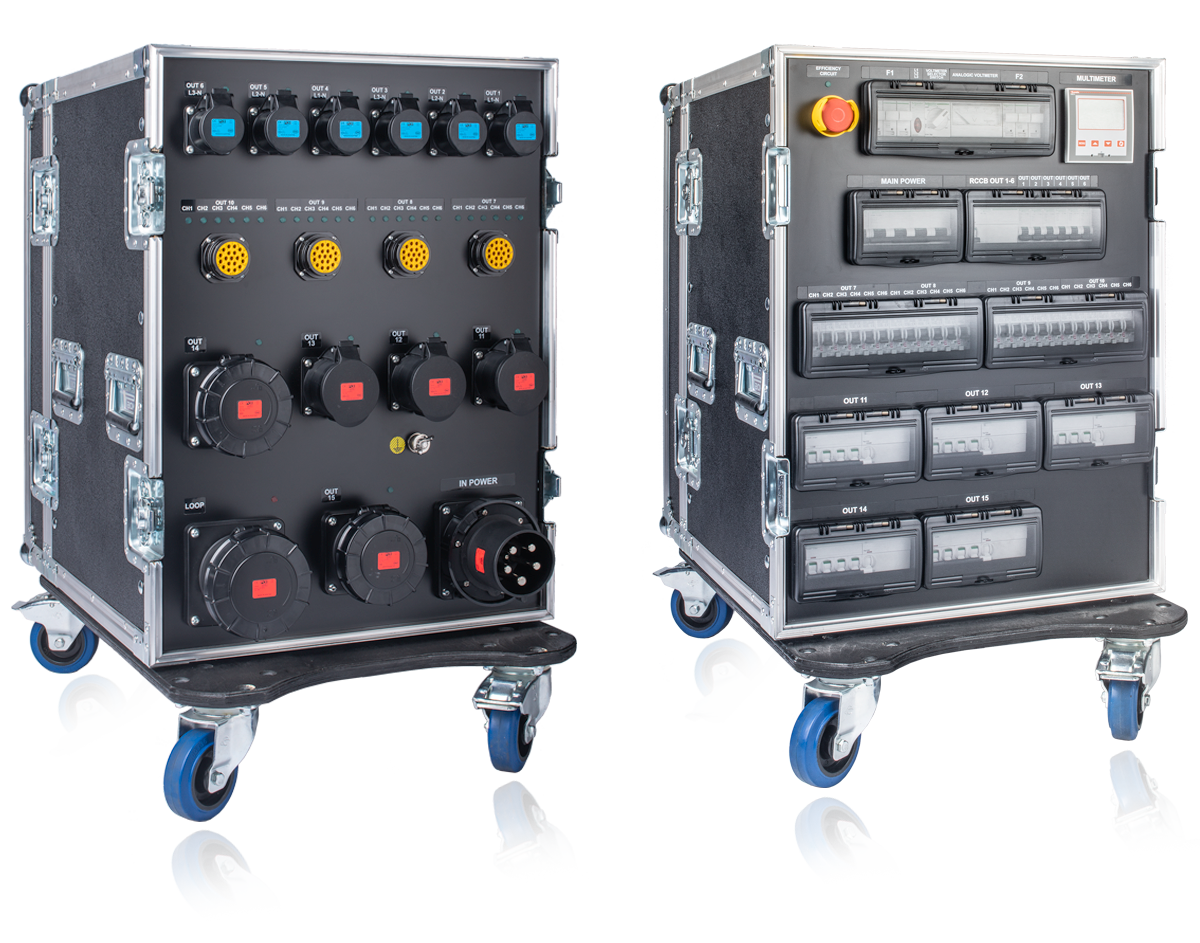

PowerBOX 125Amp 3pH+N+E 400V CASE RACK 19” 18U on Wheels.

PowerBOX 125Amp 3pH+N+E 400V CASE RACK 19” 18U MCB 125Amp 4p-C 10.000A (MAIN OUT) + 1 shunt release + 1 E-STOP (front / F2; L1n).

• Professional standard 19" rack case, 18U height, made of 10mm thick plywood with black scratch-resistant outer foil.
• 2 front / rear covers.
• 8 handles with rubber grips
• 8 butterfly closures
• 8 rounded corners
• 4 wheels Ø 100 mm in rubber (2 with brake) mounted on skate.
• 2 component-holder panels (front/rear) in PVC-CAW black color 10mm thickness (V0-UL 94) with sealing gaskets.
• Dimensions: W535 x H1070 x D820mm. about (included lids).
• Weight: 90kg. about (equipped).

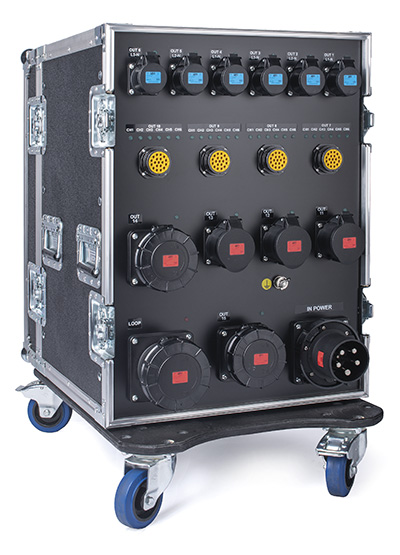

REAR (incoming & outgoing):
1 x C-Form 125Amp 3pH+N+E  6h 400V IP67 black appliance inlet (IN POWER / C-Form 125/3).
18 x C-Form 16Amp 1pH+N+E  6h 230V IP44 black panel socket + 18 green leds (OUT / 18 x C-Form 16/1).
3 x C-Form 32Amp 1pH+N+E  6h 230V IP44 black panel socket + 3 green leds (OUT / 3 x C-Form 32/1).
1 x  C-Form 32Amp 3pH+N+E  6h 400V IP44 black panel socket + 1 green led (OUT / 1 C-Form 32/3).
2 x C-Form 63Amp 3pH+N+E  6h 400V IP67 black panel socket + 2 green leds (OUT / 2 x C-Form 63/3).
FRONT (protection devices & instrumentation):
1 fuse switch 3pN 10,3x38mm. (F1) + 1 selector switch + 1 analogic voltmeter + 1 three-phase led red color (IN).
1 MCB 125Amp 4p-C 10.000A (MAIN OUT) + 1 shunt release + 1 E-STOP (front / F2; L1n).
1 fuse switch 3pN 10,3x38mm. (F2) + 1 LCD multimeter.
18 x RCBO 16Amp 1pN-C 6.000A Idn 0,03A Type A  (OUT / 18 x C-Form 16/1).
3 x RCBO 32Amp 1pN-C 6.000A Idn 0,03A Type A (OUT / 3 x C-Form 32/1).
1 x  MCB 32Amp 4p-C 6.000A + 1 shunt release + 1 earth leakage Idn / delay adjustable (OUT / 1 C-Form 32/3).
2 x MCB 63Amp 4p-C 6.000A + 1 shunt release + 1 earth leakage Idn / delay adjustable (OUT / 2 x C-Form 63/3).


Nominal data: IEC 61439-1 & 2, Ue: 400V 3pH+N+E, fn: 50Hz, InA: 400amp, Icc: 6.000A, RDF: 61%, IP: 44, Insulation class: I.

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Available in many differennt configurations, built to your individual specifications. Call us to build yours.
