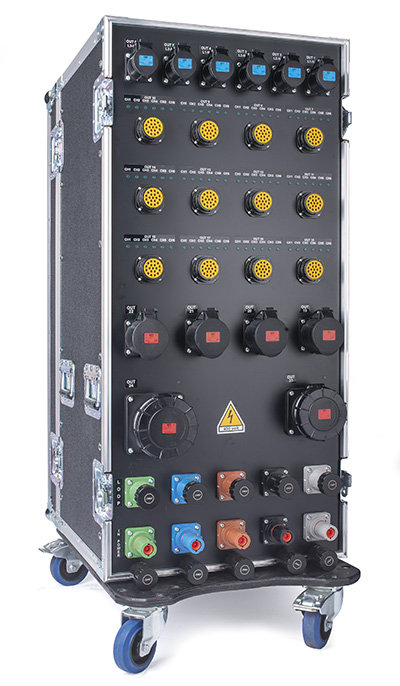

PowerBOX 400Amp 3pH+N+E 400V CASE RACK 19” 24U on Wheels.

PowerBOX 400Amp 3pH+N+E 400V set of Powerlocks on case rack 19” 24U 1 MCCB 400amp 4p (MAIN) + 1 shunt release + 1 panic button +1 x analogic voltmeter + 1 voltmeter selector switch

• Professional standard 19" rack case, 24U height, made of 10mm thick plywood with black scratch-resistant outer foil.
• 2 front / rear covers.
• 8 handles with rubber grips
• 8 butterfly closures
• 8 rounded corners
• 4 wheels Ø 100 mm in rubber (2 with brake) mounted on skate.
• 2 component-holder panels (front/rear) in PVC-CAW black color 10mm thickness (V0-UL 94) with sealing gaskets.
• Dimensions: W535 x H1070 x D820mm. about (included lids).
• Weight: 90kg. about (equipped).

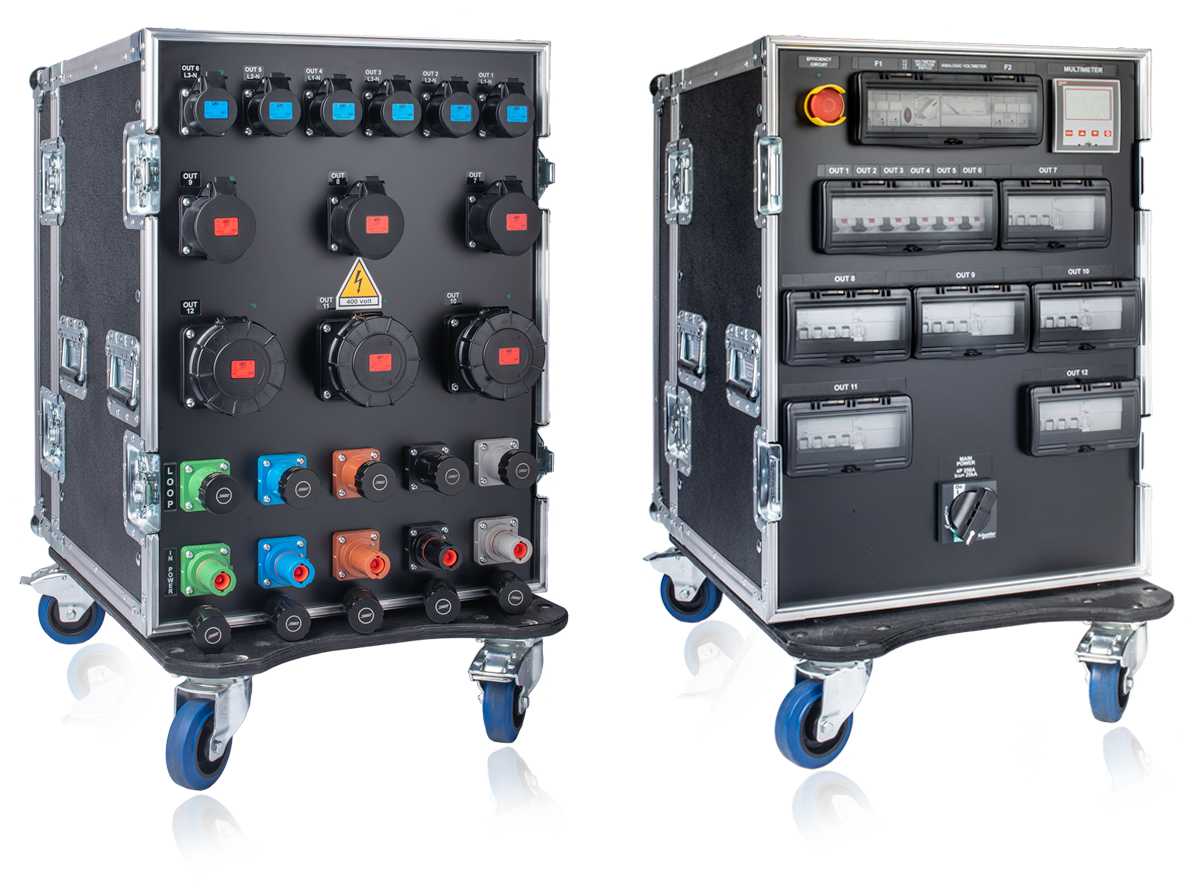

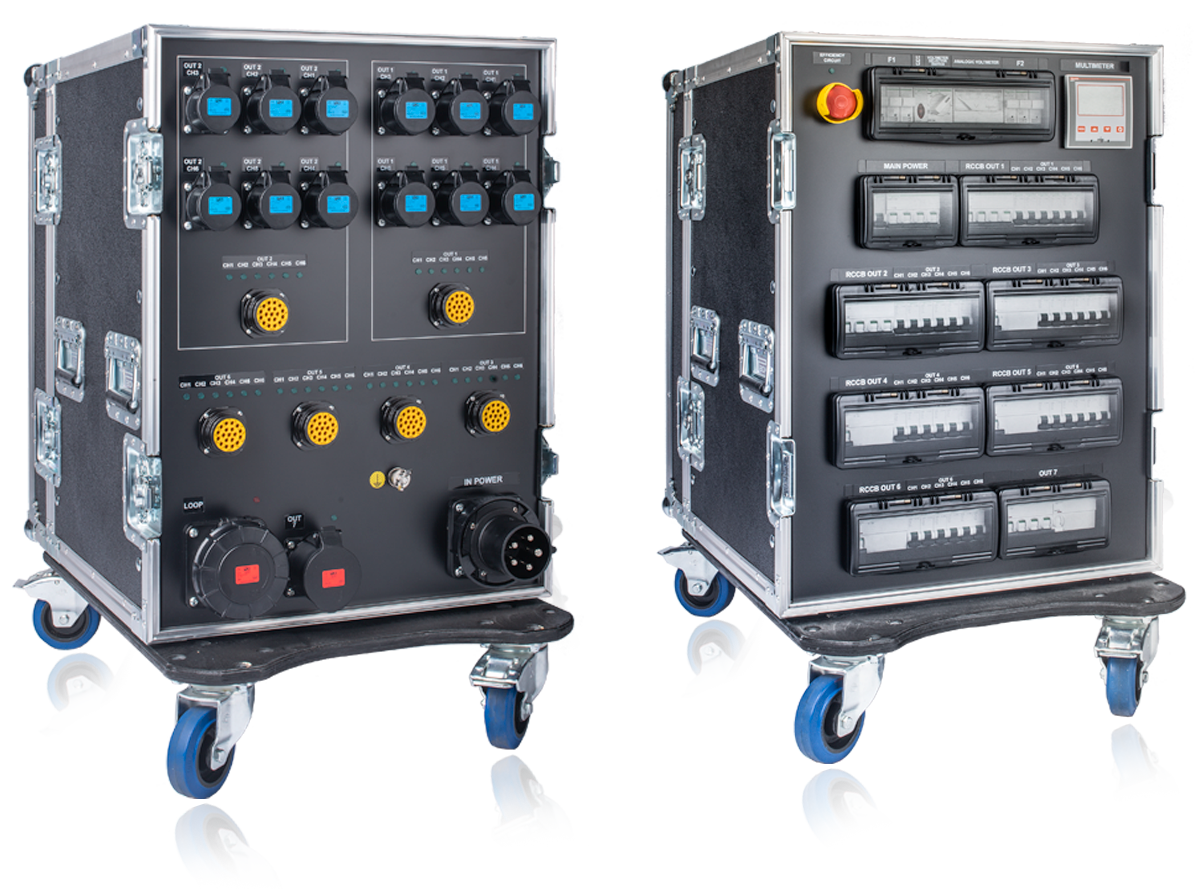

• FRONT  (protection devices & instrumentation):
• 1 analogic voltmeter + 1 voltmeter selector switch + 1 modular three-phase led red color (F1 / fuse switch 3pN 10,3x38mm.; control IN voltage).
• 1 MCCB 400Amp 4p (MAIN) + 1 shunt release + 1 panic button
• 1 LCD multimeter 96x96mm. (F2 / fuse switch 3pN 10,3x38mm.).
• 6 x RCBO 16Amp 1pN-C 6.000A IΔn 0,03A Type A (6 x C-FORM 16amp single-phase).
• 4 x RCBO 32Amp 4p-C IΔn 0,03A Type A  (4 x C-FORM 32amp three-phase)
• 72 x RCBO 16Amp 1pN-C IΔn 0,03A Type A (12 x SYNTAX® SSX 19p)
• 1 RCD MCB 63Amp 4p-C IΔn 0,3A  Type A (1 C-FORM 63amp three-phase)
• 1 RCD MCB 125Amp 4p-C IΔn 0,3A Type A (1 C-FORM 125amp three-phase)

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Available in many differennt configurations, built to your individual specifications. Call us to build yours.
