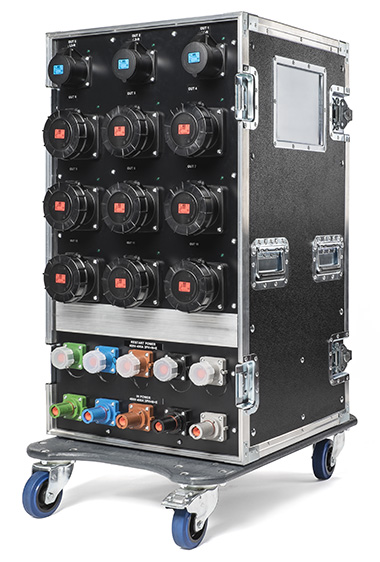

PowerBOX 400Amp 3pH+N+E 400V CASE RACK 19” 27U on Wheels.

PowerBOX 400Amp 3pH+N+E 400V set of Powerlocks on case rack 19” 27U  1 MCCB 400A 4p 36kA + 1 shunt release 1 E-STOP "pull to release" (F2; front), 1 earth stud

• Professional standard 19" rack case, 27U height, made of 10mm thick plywood with black scratch-resistant outer foil.
• 2 front / rear covers.
• 8 handles with rubber grips
• 8 butterfly closures
• 8 rounded corners
• 4 wheels Ø 100 mm in rubber (2 with brake) mounted on skate.
• 2 component-holder panels (front/rear) in PVC-CAW black color 10mm thickness (V0-UL 94) with sealing gaskets.

INCOMING: 5 x PowerlockSYNTAX (powerlock 400A) 480A “L1-L2-L3-N-E” 400V IP67

LOOP (THROUGH): 5 x Powerlock SYNTAX (powerlock 400A) 480A “L1-L2-L3-N-E” 400V IP67 with dust caps IP53.

MAIN OUTGOING: 1 MCCB 400A 4p 36kA + 1 shunt release.

• OUTGOING:

• 6 x CEE 16A 1pH+N+E  6h 230V IP44 + 6 green leds

  Protection: 6 x RCBO 16A 1pN-C 6.000A 30mA Type A

• 9 x CEE 32A  1pH+N+E 6h 230V IP44 + 9 green leds

• Protection:9 x RCBO 32A 1pN-C 6.000A 30mA  Type A

• 2 x CEE 32A 3pH+N+E 6h 400V IP44 + 2 green leds

  Protection: 2 x MCB 32A 4p-C 6.000A & RCCB 40amp 4p 30mA Type A.

• 6 x CEE 63A 1pH+N+E  6h 230V IP67 + 6 green leds

  Protection: 3 x MCB 63A 4p-C 6.000A & earth leakage 63A 2p 30mA Type A

• 3 x CEE 125A 3pH+N+E  6h 230V IP67 + 3 green leds

  Protection: 3 x MCB 125A 2p-C 10.000A & earth leakage 125A 2p Idn 300mA Type A

INSTALLED ACCESSORIES: 1 three-phase red led + 1 voltmeter selector switch + 1 analogic voltmeter (IN; 1 fuse switch 3pN 10,3x38mm. / F1), 1 LCD multimeter (1 fuse switch 3pN 10,3x38mm. / F2), 1 E-STOP "pull to release" (F2; front), 1 earth stud.

TECHNICAL DATA: IEC 61439-1 & 2 / PSC, Ue: 400V 3pH+N+E, fn: 50Hz, InA: 400amp, Icc: 6.000A, RDF: 50% (IN) – 90% (MAIN OUTGOING), IP: 44, Electrical insulation class: I.

REMARKS: IN & LOOP connectors and sockets mounted on the rear side. Switches and instrumentation mounted on the front side

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Available in many differennt configurations, built to your individual specifications. Call us to build yours.
