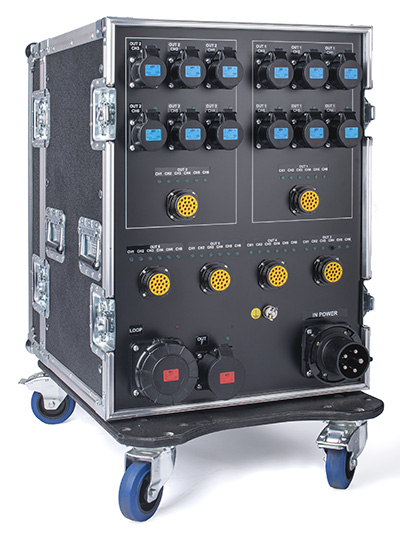

PowerBOX 63Amp 3pH+N+E 400V “CASE RACK 19” 15U 3 x Socapex 19 Pin Panel Sockets

Power distribution box, ideal for the stage and events environment, supplied with PCE Midnight Series (Black) plugs and sockets.

PowerBOX 63amp 3pH+N+E 400V 19” RACK FLIGHTCASE 12U,


• Professional standard 19" rack case, 15U height, made of 10mm thick plywood with black scratch-resistant outer foil.
• 2 front / rear covers.
• 8 handles with rubber grips
• 8 butterfly closures
• 8 rounded corners
• 4 wheels Ø 100 mm in rubber (2 with brake) mounted on skate.
• 2 component-holder panels (front/rear) in PVC-CAW black color 10mm thickness (V0-UL 94) with sealing gaskets

INCOMING : 1 C-Form 63amp 3pH+N+E  6h 400V IP67 appliance inlet black.
LOOP / THROUGH : 1 C-Form 63amp 5p 6h 400V IP67 panel socket black.
MAIN OUT: 1 MCB 63amp 4p-C 6.000A + 1 shunt-release + 1 earth leakage (Idn and delay adjustable).
OUTGOING :
18 x C-Form 16amp 1pH+N+E  6h 230V IP44 panel socket linked to
3 x SYNTAX SSX 19p IP67 panel female connector
Protection:
18 x RCBO 16amp 1pN-C 6.000A Idn 0,03A Type A
INSTALLED ACCESSORIES : 1 three-phase red led (1 fuse switch 3pN 10,3x38mm. / F1), 18 green leds (OUT), 1 earth stud.
TECHNICAL DATA : IEC 61439-1 & 2, Ue: 400V 3pH+N+E, fn: 50Hz, InA: 63amp, Icc: 6.000A, RDF: 50%, IP: 44, Electrical insulation class: I (first).

•
  Note:
  - Schneider Electric brand fuse switch, MCB, RCD and RCBO.
  - wired, tested and ready for the final installation.

  CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Available in many differennt configurations, built to your individual specifications. Call us to build yours.
