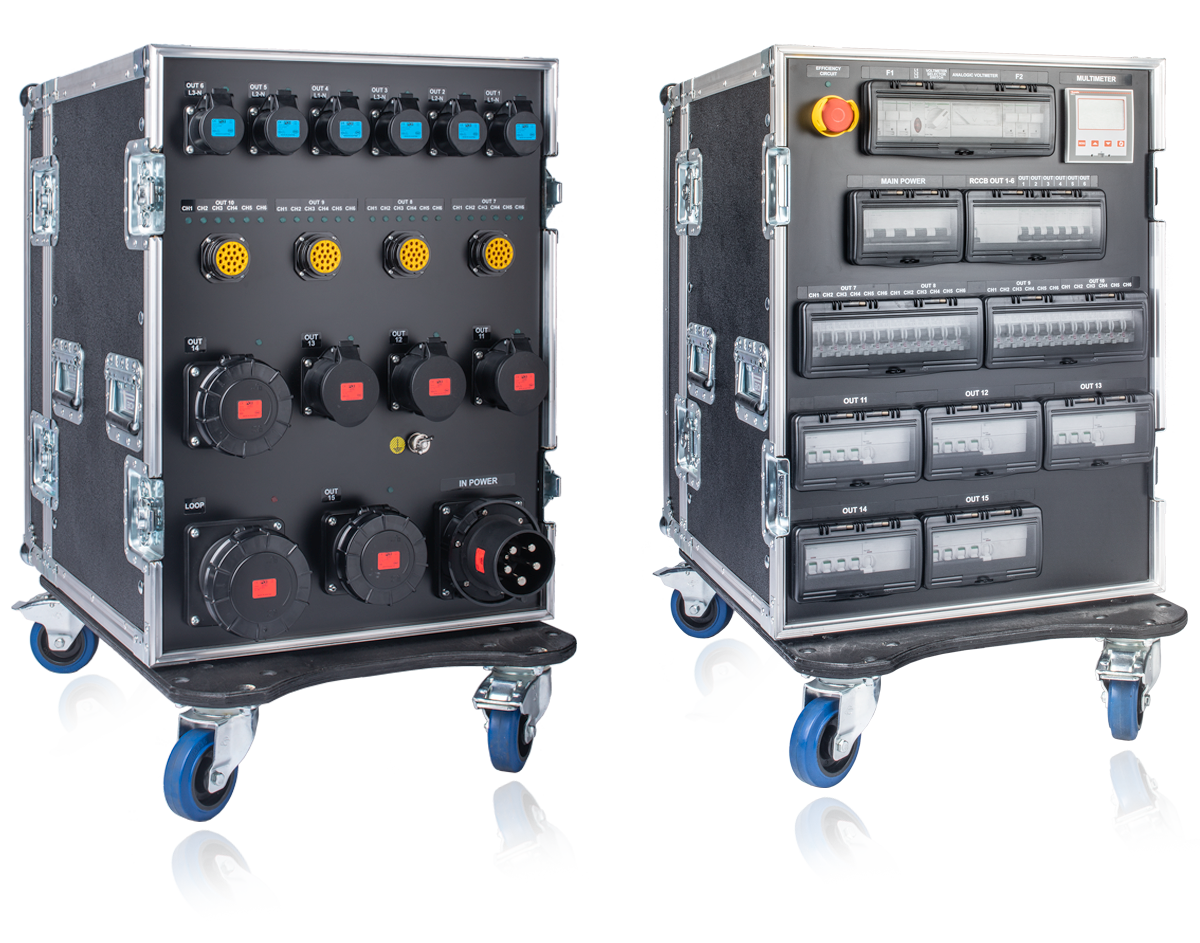

PowerBOX 63Amp 3pH+N+E 400V CASE RACK 19” 15U 4 x Socapex

PowerBOX 63Amp 3pH+N+E 400V “CASE RACK 19” 15U 4 x Socapex

Made in Italy.


• Professional standard 19" rack case, 15U height, made of 10mm thick plywood with black scratch-resistant outer foil.
• 2 front / rear covers.
• 8 handles with rubber grips
• 8 butterfly closures
• 8 rounded corners
• 4 wheels Ø 100 mm in rubber (2 with brake) mounted on skate.
• 2 component-holder panels (front/rear) in PVC-CAW black color 10mm thickness (V0-UL 94) with sealing gaskets.

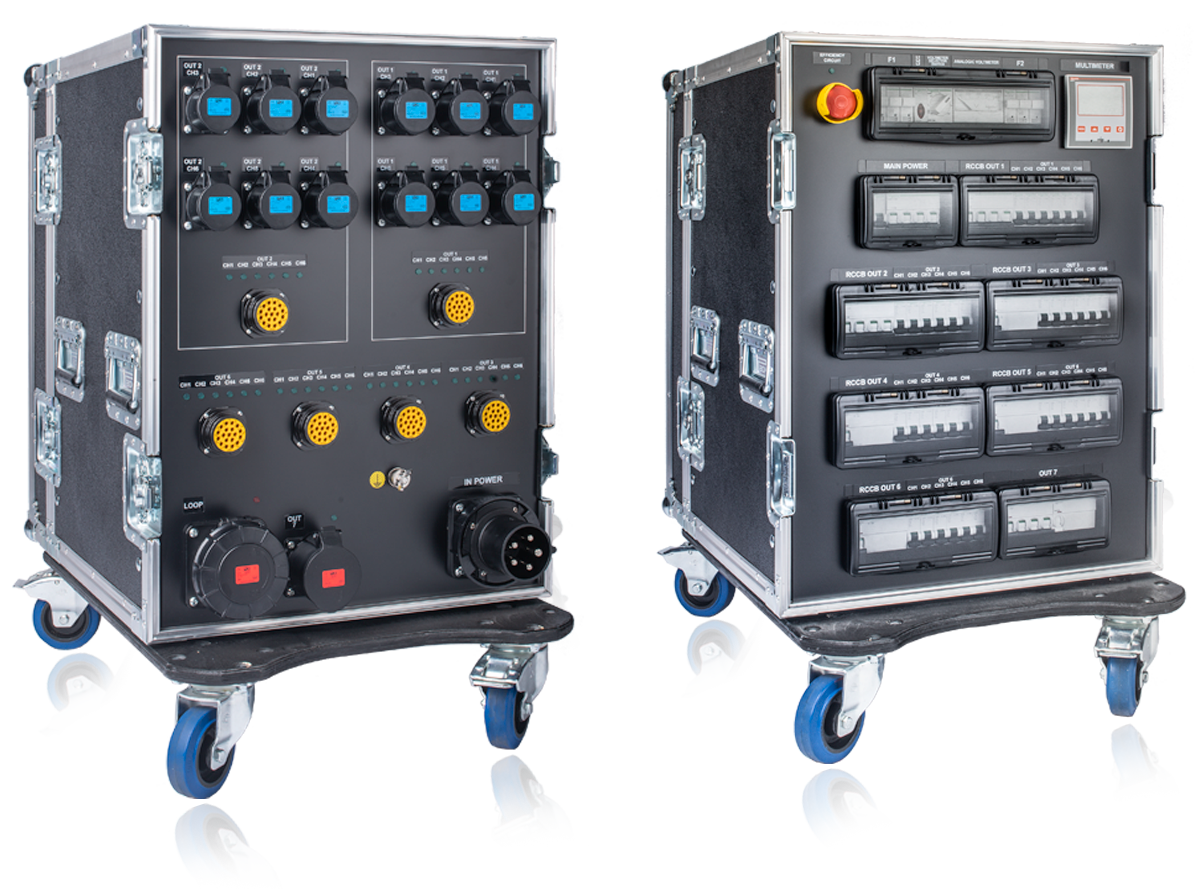

PowerBOX 63Amp 3pH+N+E 400V “CASE RACK 19” 15U”, p/n PBF63P15U
FRONT (protection devices & instrumentation):
1 x Analogic voltmeter + 1 voltmeter selector switch (control IN voltage).
1 x MCB 63Amp 4p-C 6.000A (MAIN) + 1 shunt release + 1 panic button.
1 x Digital multimeter 96x96mm. with LCD graphic display.
2 x RCCB 40Amp 4p IΔn 0,03A AC type + 12 x MCB 16amp 1pN-C (12 x C-FORM 16amp single-phase / 2 x SYNTAX® SSX 19p).
4 x RCCB 40Amp 4p IΔn 0,03A AC type + 24 x MCB 16amp 1pN-C 4.500A (4 x SYNTAX® SSX 19p).
1 RCBO 32Amp 4p-C IΔn 0,03A AC type (C-FORM 32amp three-phase).
REAR (incoming & outgoing):
1 x  C-FORM 63Amp 5p 6h 400V IP67 (IN).
1 x  C-FORM 63Amp 5p 6h 400V IP67 (LOOP).
6 x Schuko 16Amp 3p 6h 230V IP44 linked 1 x Socapex SYNTAX SSX 19p IP67
6 x PowerCON True 1 16Amp 3p 6h 230V IP44 linked 1 Socapex x SYNTAX SSX 19p IP67
4 x SYNTAX SSX 19p IP67 (OUT; Socapex 419 compatible).
1 x C-FORM 32Amp 5p 6h 400V IP44 (OUT).
Nominal data: IEC 61439-1 & 2, Ue: 400V 3pH+N+E, fn: 50Hz, InA: 63amp, Icc: 6.000A, IP: 44, RDF: 50%, Insulation class: I.

•
  Note:
  - Schneider Electric brand fuse switch, MCB, RCD and RCBO.
  - wired, tested and ready for the final installation.

  CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Available in many differennt configurations, built to your individual specifications. Call us to build yours.
