PowerBOX 63Amp 3pH+N+E 400V “CASE RACK 19” 15U 4 x Socapex 19 Pin Panel Sockets

Power distribution box, ideal for the stage and events environment, supplied with PCE Midnight Series (Black) plugs and sockets.

Made in Italy.

• PowerBOX 63amp 3pH+N+E 400V “CASE RACK 19” 15U”, p/n PBF63P15U

• Professional standard 19" rack case, 15U height, made of 10mm thick plywood with black scratch-resistant outer foil.
• 2 front / rear covers.
• 8 handles with rubber grips
• 8 butterfly closures
• 8 rounded corners
• 4 wheels Ø 100 mm in rubber (2 with brake) mounted on skate.
• 2 component-holder panels (front/rear) in PVC-CAW black color 10mm thickness (V0-UL 94) with sealing gaskets.

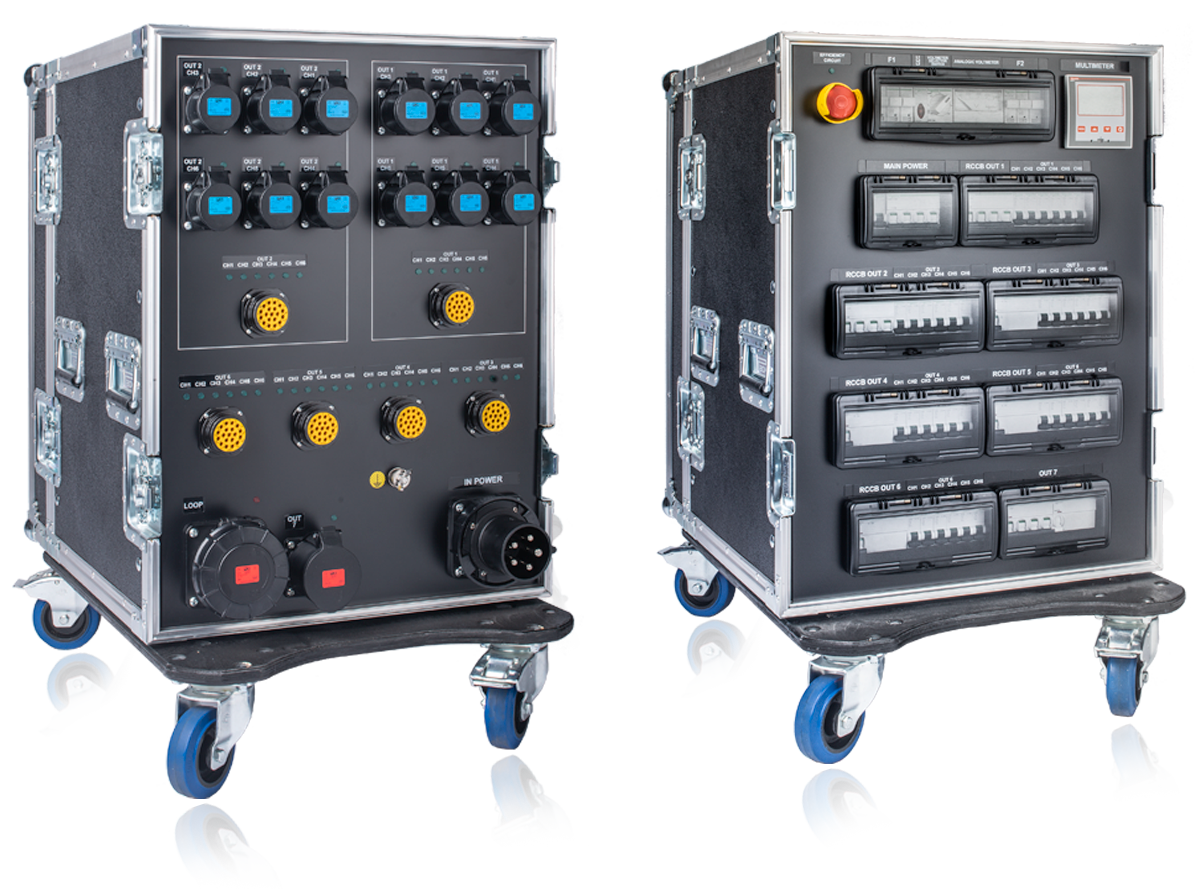

• FRONT (protection devices & instrumentation)
• 1 analogic voltmeter + 1 voltmeter selector switch (control IN voltage).
• 1 MCB 63amp 4p-C 6.000A (MAIN) + 1 shunt release + 1 panic button.
• 1 digital multimeter 96x96mm. with LCD graphic display.
• 2 x RCCB 40amp 4p IΔn 0,03A Type A  + 12 x MCB 16amp 1pN-C (12 x C-FORM 16amp single-phase / 2 x SYNTAX® SSX 19p).
• 4 x RCCB 40amp 4p IΔn 0,03A Type A + 24 x MCB 16amp 1pN-C 4.500A (4 x SYNTAX® SSX 19p).
• 1 RCBO 32amp 4p-C IΔn 0,03A Type A  (C-FORM 32amp three-phase).
• REAR (incoming & outgoing):
• 1 C-FORM 63amp 3pH+N+E  6h 400V IP67 (IN).
• 1 C-FORM 63amp 3pH+N+E  6h 400V IP67 (LOOP).
• 6 x Schuko 16amp 1pH+N+E  6h 230V IP44 linked 1 x Socapex SYNTAX SSX 19p IP67
•
  6 x PowerCON True 1 16amp 3p 6h 230V IP44 linked 1 Socapex x SYNTAX SSX 19p IP67
•
  4 x SYNTAX SSX 19p IP67 (OUT; Socapex 419 compatible).
• 1 C-FORM 32amp 3pH+N+E  6h 400V IP44 (OUT).
• Nominal data: IEC 61439-1 & 2, Ue: 400V 3pH+N+E, fn: 50Hz, InA: 63amp, Icc: 6.000A, IP: 44, RDF: 50%, Insulation class: I.

Note:
- Schneider Electric brand fuse switch, MCB, RCD and RCBO.
- wired, tested and ready for the final installation.
  CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market

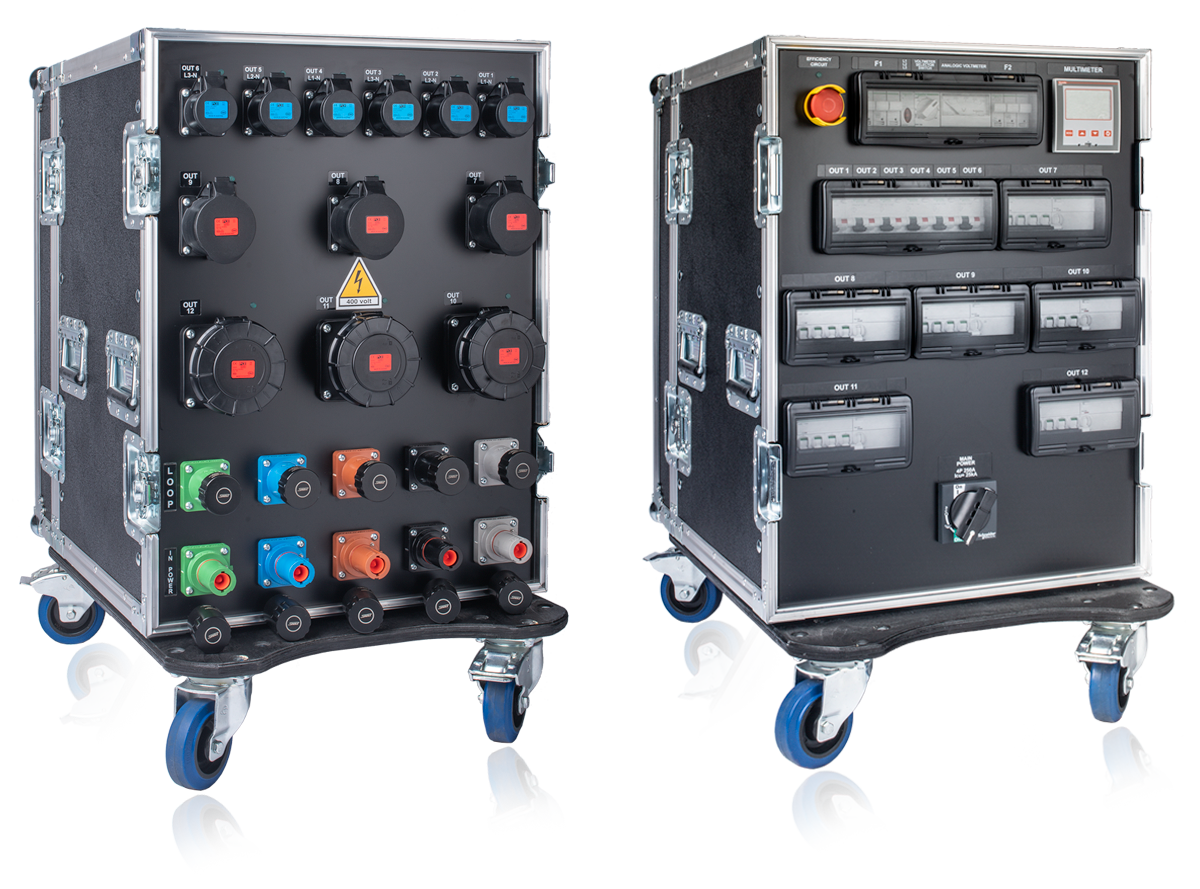

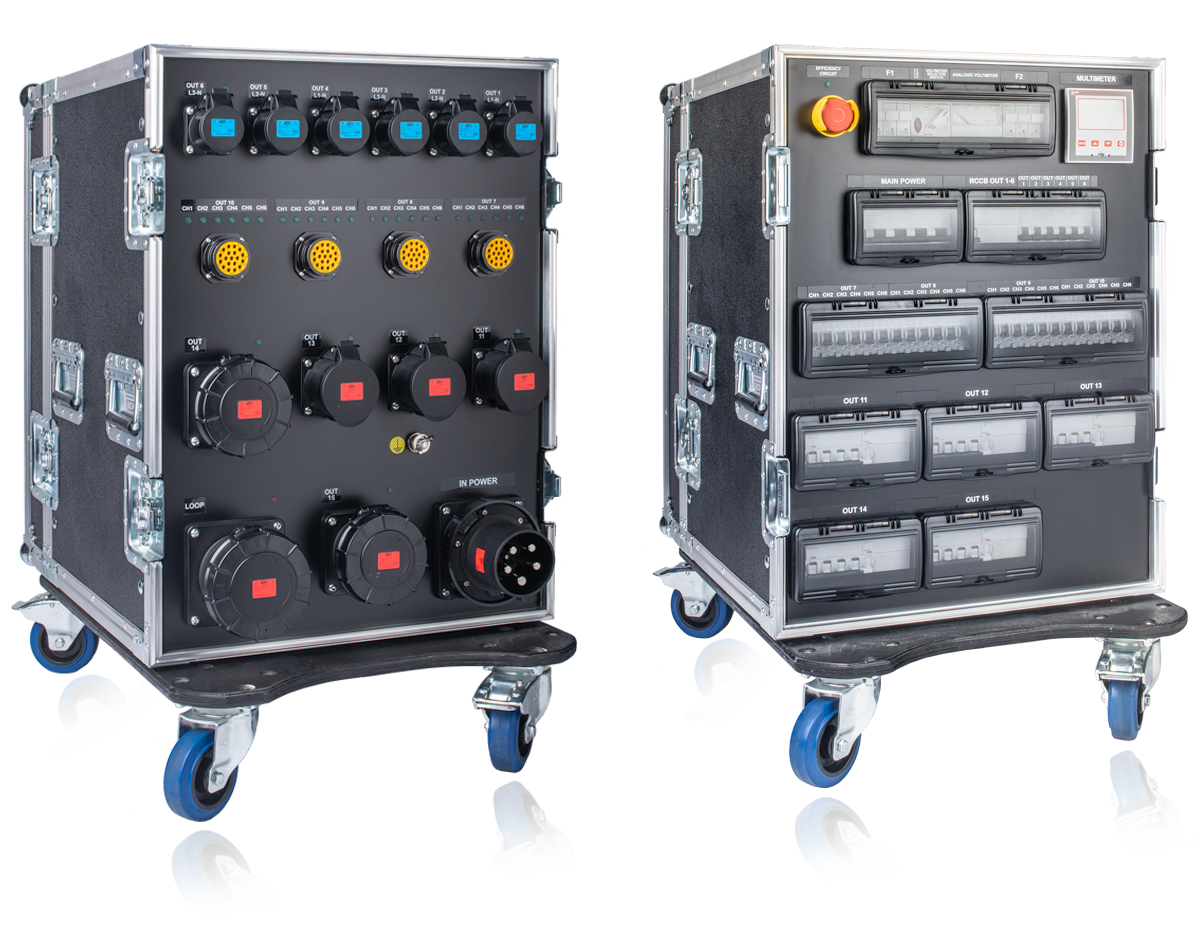

Available in many differennt configurations, built to your individual specifications. Call us to build yours.
