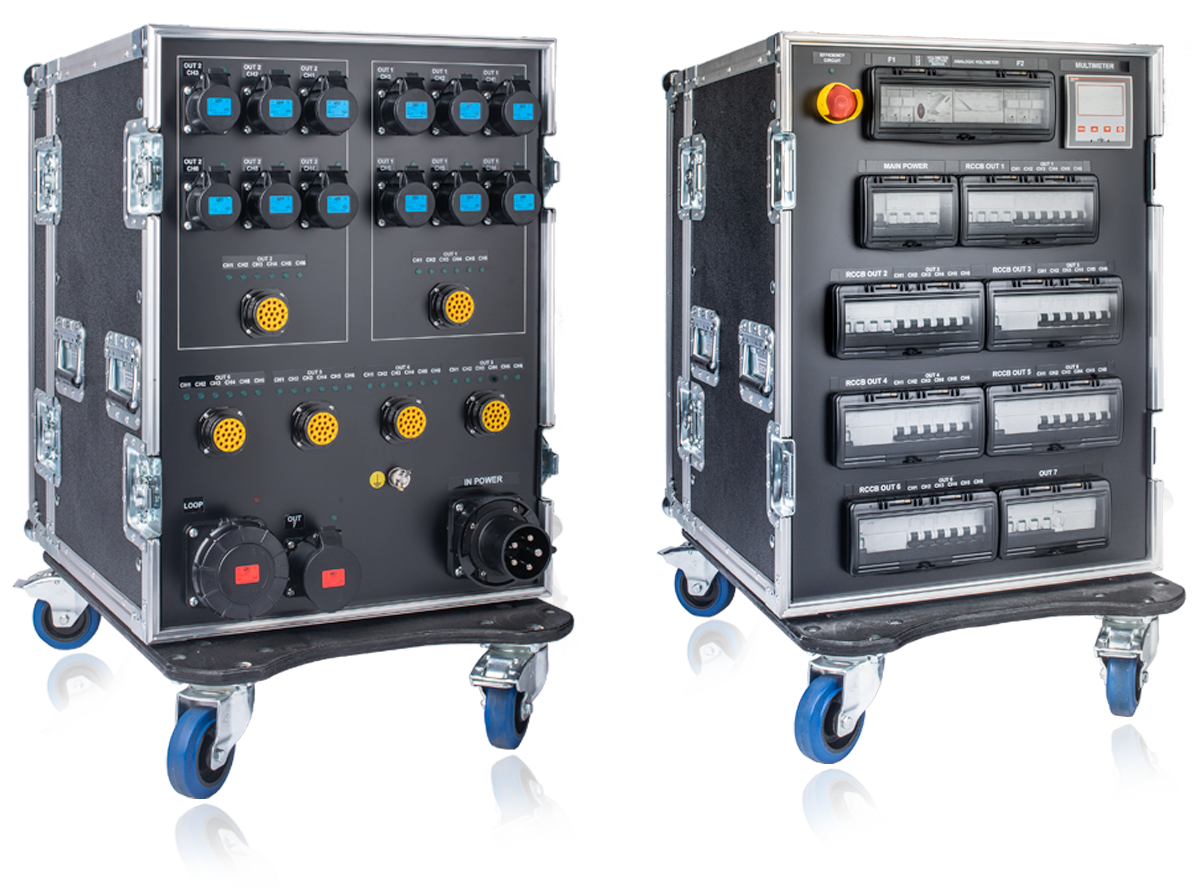

PowerBOX 63Amp 3pH+N+E 400V “CASE RACK 19” 15U 6 x Socapex 19 Pin Panel Sockets

Power distribution box, ideal for the stage and events environment, supplied with PCE Midnight Series (Black) plugs and sockets.

Made in Italy.

BOX: 1 professional standard rack 19" flightcase, 12U height, made of 10mm thick plywood with black scratch-resistant outer foil, 2 front / rear covers, 8 handles with rubber grips, 4 butterfly closures, 8 rounded corners, 4 wheels Ø 100mm. in rubber (2 with brake) mounted on skate.
2 component-holder panels (front/rear) in PVC-CAW black color 10mm. thickness (V0-UL 94) with sealing gaskets.
REAR (incoming & outgoing):
1 C-Form 63amp 3pH+N+E  6h 400V IP67 appliance inlet black (IN POWER 63/3).
12 x C-FORM 16amp 1pH+N+E  6h 230V IP44 panel socket black (12 x C-Form 16/1).
6 x SYNTAX SSX Socapex 19p IP67 female panel connector (6 x SOCA 6 channels).
2 x BS 13amp 1pH+N+E  230V IP44 panel socket (SERVICE).
1 free unit for DMX buffer installation.
FRONT  (protection devices & instrumentation):
1 fuse switch 3pN 10,3x38mm. (F1) + 1 three-phase led red color (IN; L1-L2-L3).
1 MCB 63amp 4p-C 6.000A (MAIN OUT).
12 x RCBO 16amp 1pN-C 6.000A Idn 0,03A Type A (12 x C-Form 16amp single-phase).
36 x RCBO 16amp 1pN-C 6.000A Idn 0,03A Type A (6 x SYNTAX SSX 19p / SOCA 6 channels).
1 RCBO 16amp 1pN-C 6.000A Idn 0,03A Type A  (2 x BS 13amp single-phase).
1 free unit for DMX buffer installation.
TECHNICAL DATA: IEC 61439-1 & 2, Ue: 400V 3pH+N+E, fn: 50Hz, InA: 63amp, Icc: 6.000A, RDF: 26%, IP: 32, Insulation class: I.

 Note:
- Schneider Electric brand fuse switch, MCB, RCD and RCBO
- wired, tested and ready for the final installation.   CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Available in many differennt configurations, built to your individual specifications. Call us to build yours.
