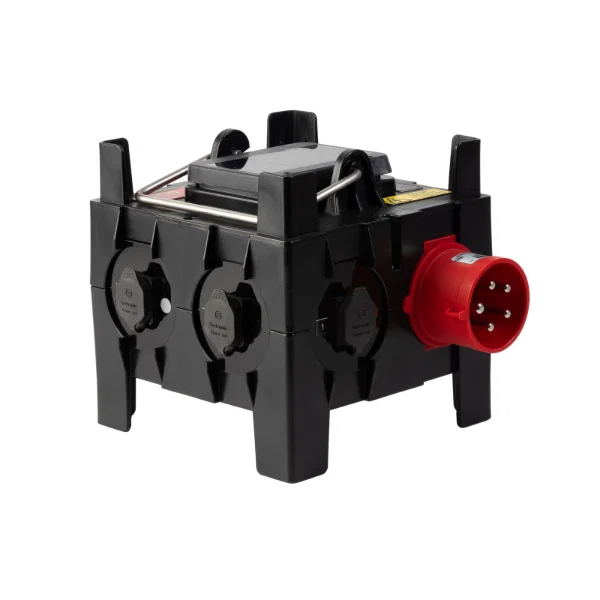

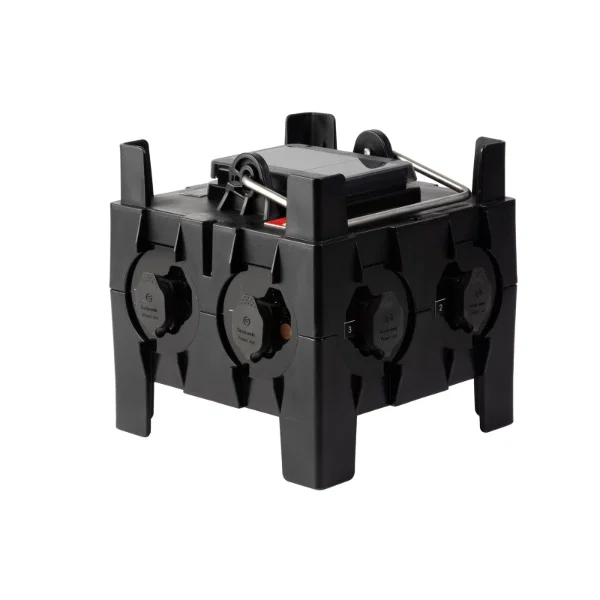

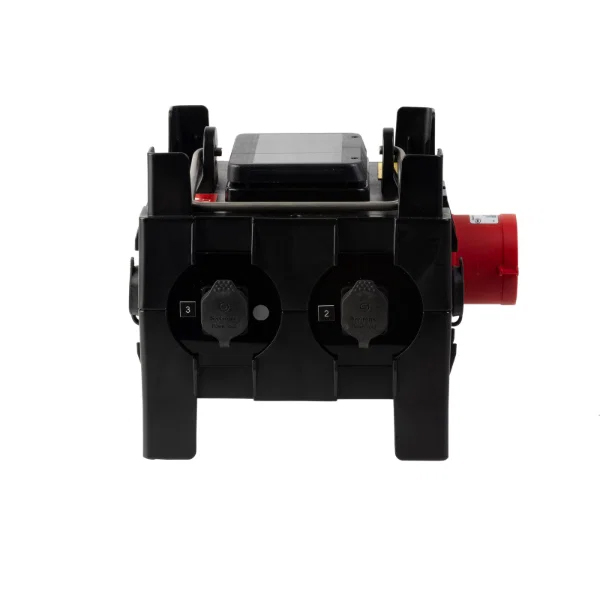

PCE IMST Distro Box 32A 3pH+N+E 400V In/Out to 6 x PowerCON True 1 x MCB + 6 x RCBO's

Mobile Thermoplastic Insulated Distribution Boxes – IMST Series 9030656

Example Video Only: We have produced this short video to show you the design and build quality, the specification in this video is different from the product on this page​

INPUT:
   • 1 x 32A 400V 3pH+N+E 400V IP44 Appliance Inlet
   • Incoming Protection 1 x 32A MCB Type C

OUTPUT:
   • 1 x 32A 400V 3pH+N+E 400V Panel Socket (Loop Through - No Protection)
   • 6 x 16A 2P+E 230V PowerCON TRUE1 Original IP65 Sockets
   • Outgoing Protection: 6 x 30mA RCBO Type A

IMST Series Details:
   • 12 month warranty
   • Handy, robust distribution box made of shock-resistant polyamide
   • Dimensions: W x H x D = 197 x 200 x 197 mm
   • Carrying handle made of high-grade steel
   • Maximum rated current of 32A
   • 8 modules under window
   • IP44 splashproof
   • Ready wired for connection
   • For distributing electricity to powered equipment or lighting systems on building sites
   • Ideal for craft business, the building trades, farmers, etc.
   • Housing colours: black or red
   • Stackable, with take-up device for the connecting cable

Available in other different configurations; 16A or 32A, Single Phase or 3 Phase.

Please give us a call if you require a bespoke configuration.
