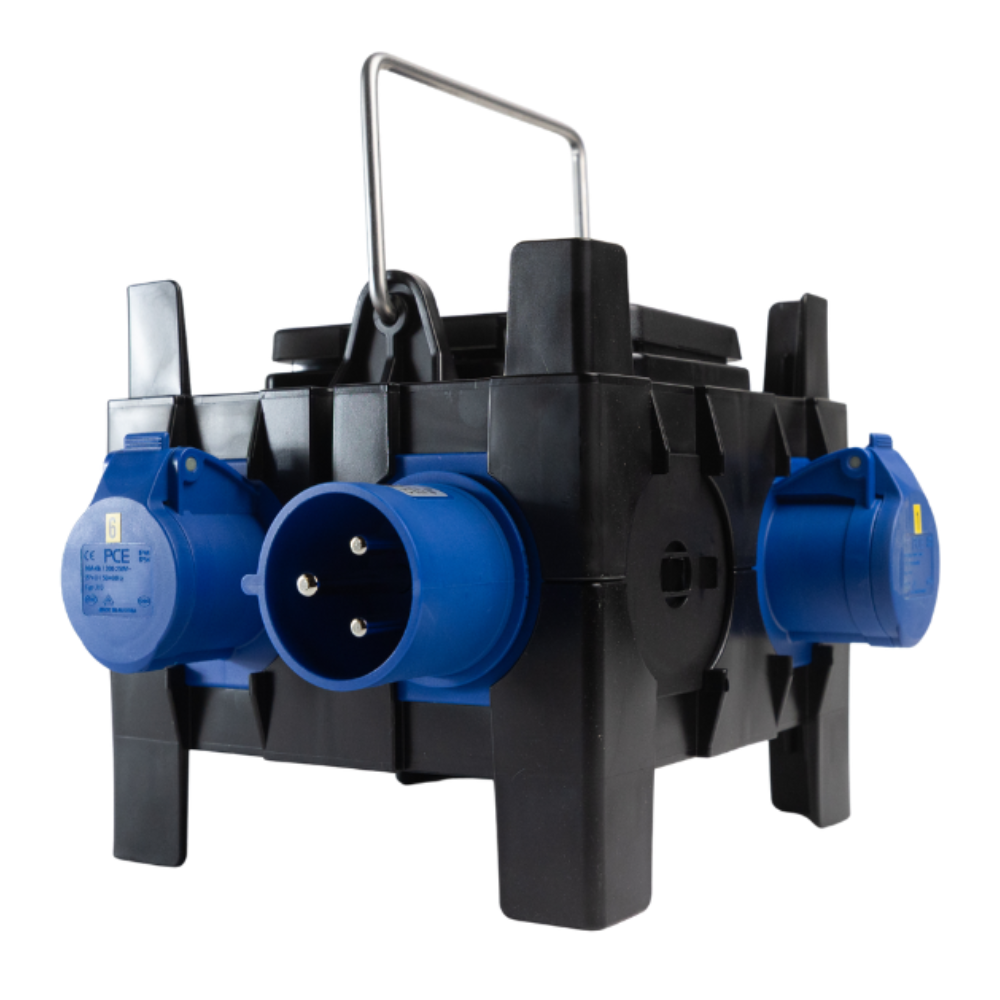

PCE IMST Distro Box 32A 3pH+N+E 400V to 6 x 16A 1pH+N+E 230V 6 x MCB's

PCE IMST Distribution Box 32A 3P+N+E 400V to 6 x 16A 2P+E 230V 6 x MCB's

Example Video Only: We have produced this short video to show you the design and build quality, the specification in this video is different from the product on this page​

PCE IMST Mobile thermoplastic distribution boxes are suitable for in- and outdoor areas. The boxes are available in different sizes and configurations, single phase or 3phase, 16Amp or 32Amp.

PCE IMST Mobile thermoplastic distribution boxes are well suited for all applications. Especially in those areas that depend on high-quality, a robust enclosure and total reliability, such as in industry, trade, workshops, agriculture, household, public buildings, leisure, sport, marinas, camping, etc.

For the price, the very best portable distro boxes you’ll find anywhere!

This unit

Mobile - Thermoplastic insulated distribution boxes - Series IMST

Series IMST

·         handy, robust distribution box made of shock-resistand polyamide
·         dimensions: WxHxD = 197x200x197 mm
·         with carrying-handle made of high-grade steel
·         maximum rated current of 32A
·         8 modules under window
·         IP44 splashproof, ready wired for connection
·         for distributing electricity to powered equipment or lighting systems on building sites
·         ideal for craft business, the building trades, farmers, etc.
·         housing colours: black or red

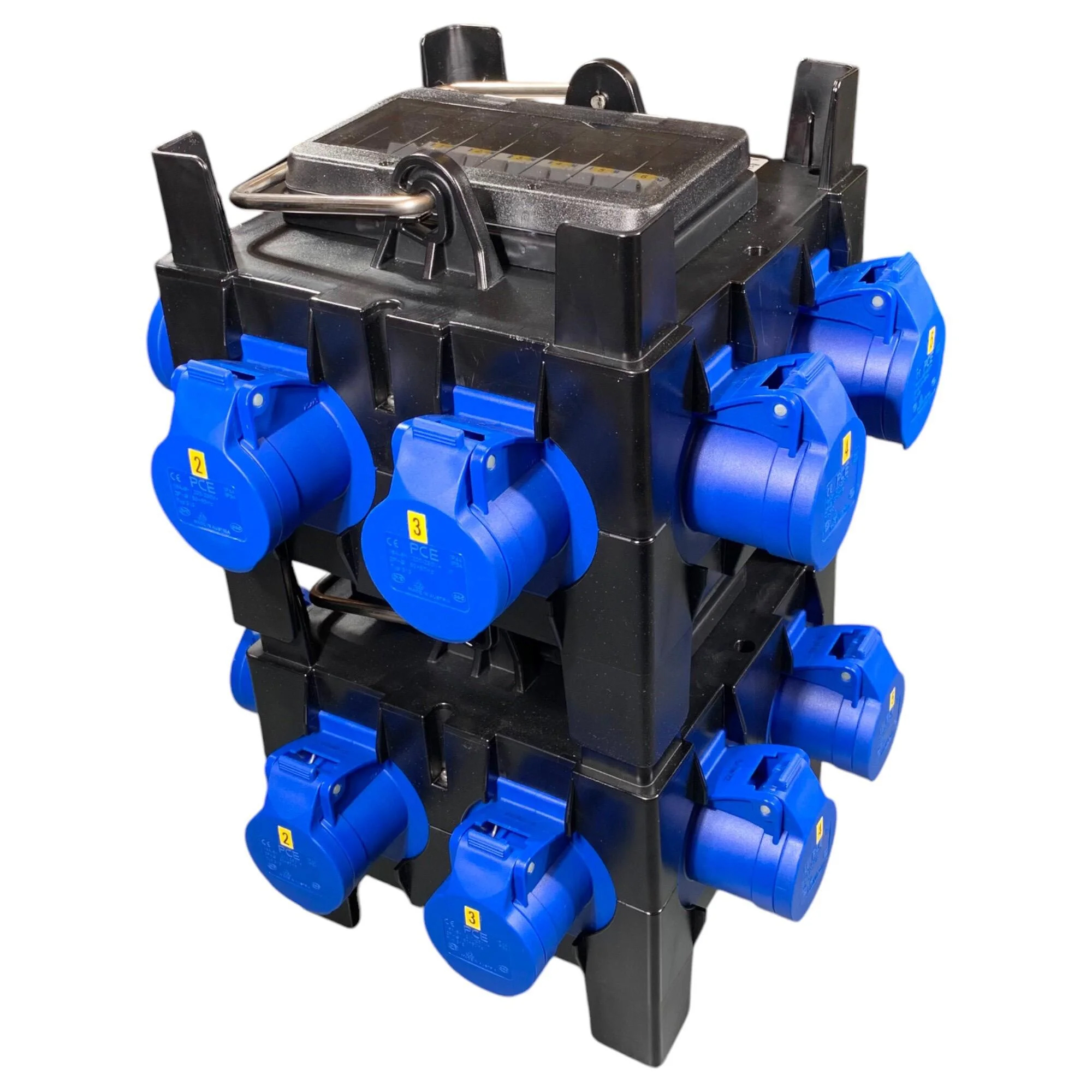

·         stackable, with take-up device for the connecting cable


• INPUT
• 32A 400V 3P+N+E IP44 APPLIANCE INLET IP44
• Through Socket: 32A 400V 3P+N+E IP44 Panel Socket
• No protection on incoming.
• OUTPUT
• 6 x 16A 230V 2P+E IP44 SOCKETS IP44

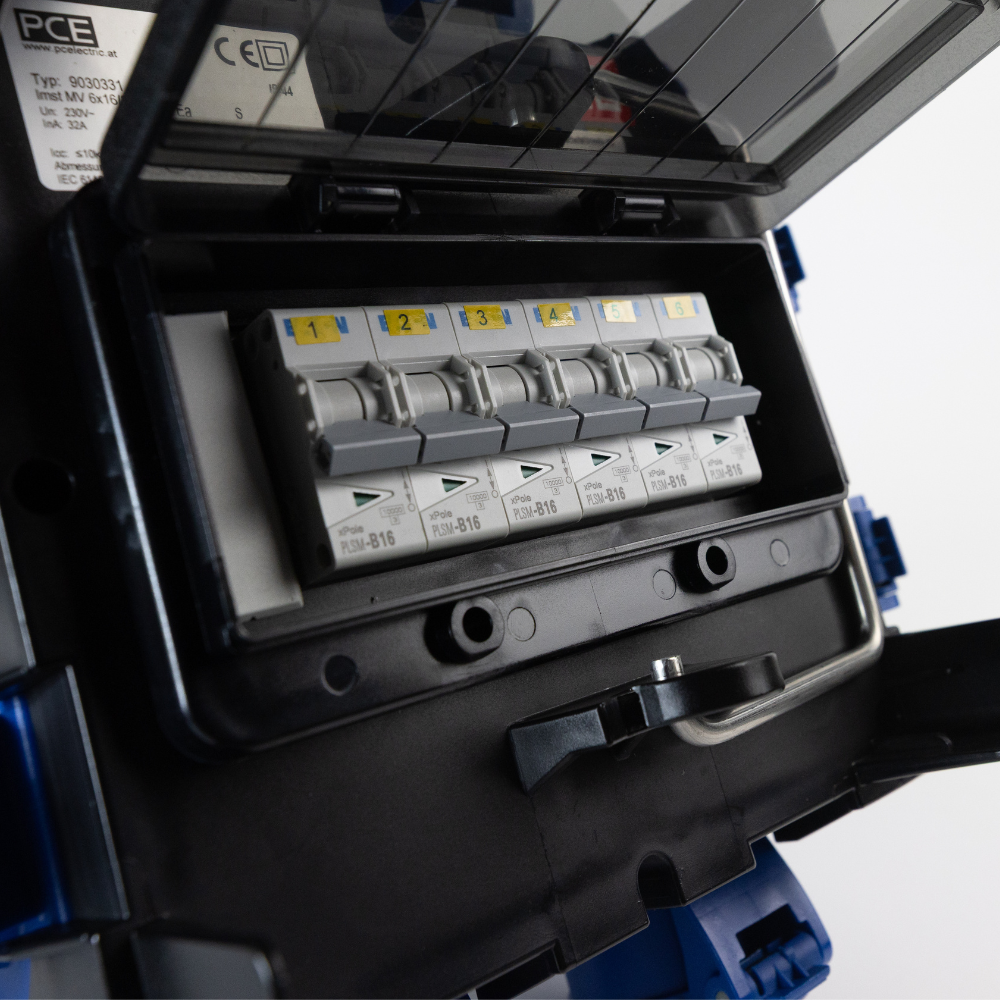

• Protection: 6 x 16A 1P MCB TYPE C
• 12 Months Warranty

Available in many other different configurations; 16a or 32a, single phase or 3 phase. Call us to build yours.
