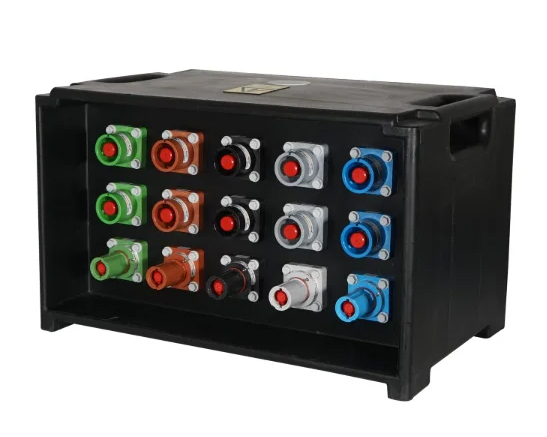

PowerBOX 400A 3pH+N+E 400V Powerlock Drain In to 2 x Powerlock Source Out ( L1 L2 L3 N-Blue E-Green )

PowerBOX 400A L1 L2 L3 N-Blue E-Green ) 400V Powerlock Drain In to 2 x Powerlock Source Out  L1 L2 L3 N-Blue E-Green )

PowerBOX 400amp 3PH+N+PE 400V Splitter Box Only

Box: enclosure in solid black LLDPE (GWT, IP54, insulated), transportable, stackable.

Incoming:

1 x Set of Powerlock 500A Panel Drain “L1-br L2-bk L3-gy N-bl E-gn” 400V IP67.

Outgoing:  Loop (without protection):

2 x Sets of Powerlock 500A Sanel Source “L1-br L2-bk L3-gy N-bl E-gn” 400V IP67 with IP67 caps.

nstalled accessories: 1 fuse carrier 3pN (F1) + 3 red leds (IN/LOOP), 2 green leds (OUT), 1 earth stud.

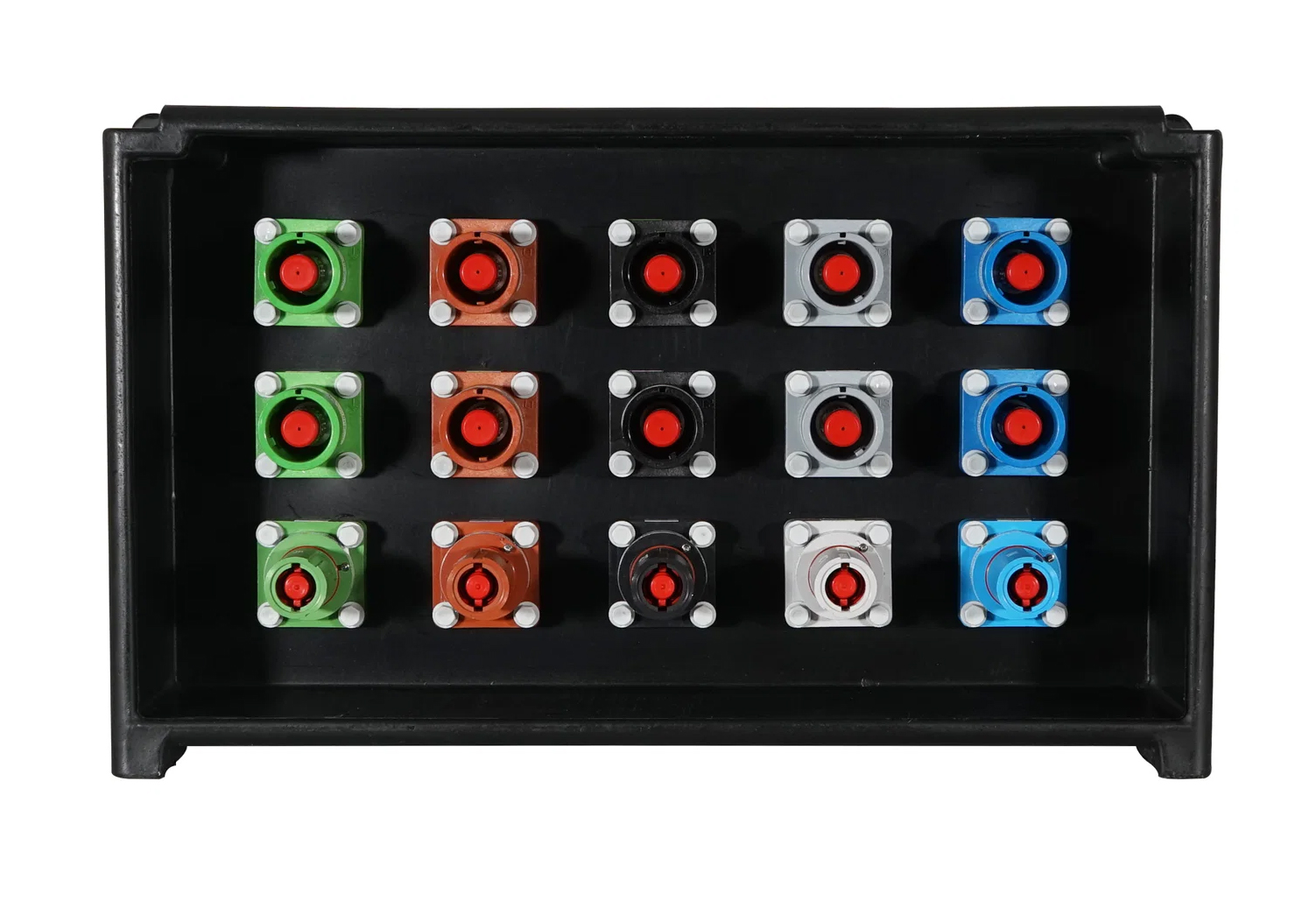

Components arrangement: rear side box / Powerlock connectors (IN / LOOP),(OUT) with leds and earth terminal.

Front side box / protection switches, N/A for this box, Splitter Only.

Other notes: box dimensions W600 x D400 x H670mm, weight 30,00 kg approx.

Technical data: IEC 61439-1 & 2 / PSC, CE / UKCA marking, Ue 400V ca 3PH+N+PE, fn 50 Hz, InA 400 A, Icc 10kA, RDF 60/100, IP 54, Electrical insulation class I (first).

CE DECLARATION OF CONFORMITY

IEC 61439-1 & 2 / PSC, CE / UKCA marking, Ue 400/230V 3PH+N+PE, fn 50Hz, InA 125A, Icc 6.000A, RDF 65/100, IP44, Electrical insulation class I (first).

LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

40% lighter than Rubber and yet super shock resistant

The PowerBox Cube Series is available in multiple sizes, each model being different just for the overall dimensions. The Cube boxes are molded in black insulating thermoplastic material, very resistant to shocks and the mechanical stress that these items will normally go through in their everyday usage (moving, constant handling etc.). They are easy to stack and to carry, with strong in-built handles. The total weight of our Cube boxes is 40% less than the standard rubber molded ones.



The CE UKCA marking is required for many products, it:

• shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
• is an indicator of a product’s compliance with EU legislation
• allows the free movement of products within the European market

Available in many different configurations, built to your individual specifications. Call us to build yours.

Made in Italy.
