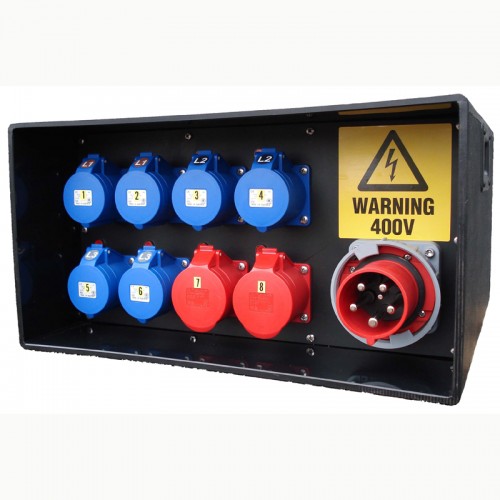

Event Power Distro Box 63A 3pH+N+E 400V 2 x 32 3pH+N+E + 6 x 32A 1pH+N+E MCB + RCBO's

Incoming:
63A 3P+N+E 400v Panel Inlet  IP44
Incoming Protection:
63A 4P Type C MCB
Phase present indication neons.
Outgoing:
6 x 32A 1P+N+E 230V Sockets IP44
2 x 32A 3P+N+E 400V Sockets IP44
Outgoing Protection:
6 x 32A 2P 30mA RCBO
2 x 32A 4P 30mA RCBO

Primarily designed and manufactured for use within the events industry our range of portable event power distribution units provide all of the essential requirements for a successful installation.

• Easy to install.
• Reliable in operation
• Suitable for indoor or outdoor use
• All switchgear is protected by hinged polycarbonate windows to allow access for operation and inspection of protection devices
• Sockets, switchgear & handles are all recessed to afford mechanical protection during transportation
• Integrated handles for easy transportation
• Integrated feet to facilitate stacking
• Tested to ensure compliance with BS7671. All are issued with full test certification (12 month warranty)
• Manufactured from 300-grade medium density black polypropylene sheet and of a fully welded construction
• Sockets / Switchgear access windows and handles are all recessed to afford mechanical protection
• All fixings are stainless steel

These units can be built to your individual specification, please call or email us with your requirements.
