Purchase options available:

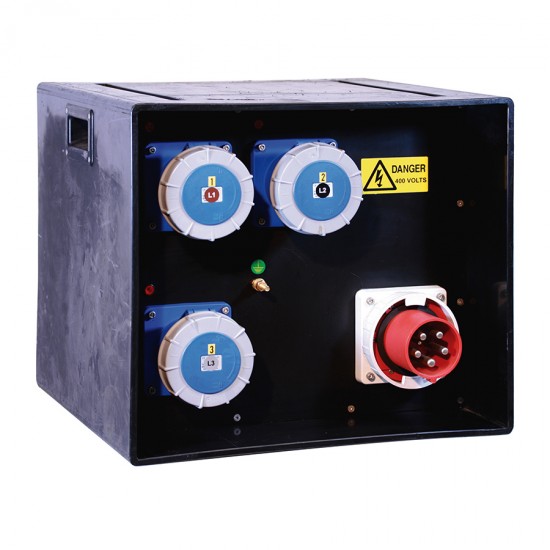

Event Power Distro Box 63A 3pH+N+E 400V 3 x 63A 1pH+N+E 230V MCB + RCD
Our No: 9212
Manufacturer No: PBF63P3P33
£1,499.00
£1,798.80 (inc VAT)
PowerBOX 63amp 3PH+N+PE 400/230V (Siemens).
Box: enclosure in solid black LLDPE (GWT, IP54, insulated), transportable, stackable.
Incoming: 1 C-Form 63A 3pH+N+E 6h 400V IP67 flanged plug PCE Midnight Series
Outgoing:
3 x CEE-17 63amp 3p 6h 230V IP67 panel socket PCE Midnight Series
Protection:
3 x MCB 63A 2p-C 6.000A & earth leakage Idn 0,03A Type A
Installed accessories:
1 fuse carrier 3pN 10,3x38mm 3M Din (F1) +
1 three-phase voltage indicator light 1M Din, 3 green leds (OUT),
1 earth stud 63A.
Components arrangement: rear side box / flanged plug (IN), with green leds and earth terminal. Front side box / Main switch and protection switches.
Other notes: box dimensions W600 x D400 x H670mm, weight 30,00kg approx.
Technical data: IEC 61439-1 & 2 / PSC, CE / UKCA marking, Ue 400/230V 3PH+N+PE, fn 50Hz, InA 63A, Icc 6.000A, RDF 50/100, IP44, Electrical insulation class I (first).
Brand:
Custom
Type:
Industrial Commando
Housing Material:
Polypropylene
Format:
Portable
Incoming Amperage:
63A
Number Of Phases (Incoming):
Three Phase (3P+N+E)
Outgoing Sockets:
63A (Single Phase 2P+E)
Incoming Protection:
MCB
Outgoing Protection:
RCBO
Additional Features:
Earth Stud
