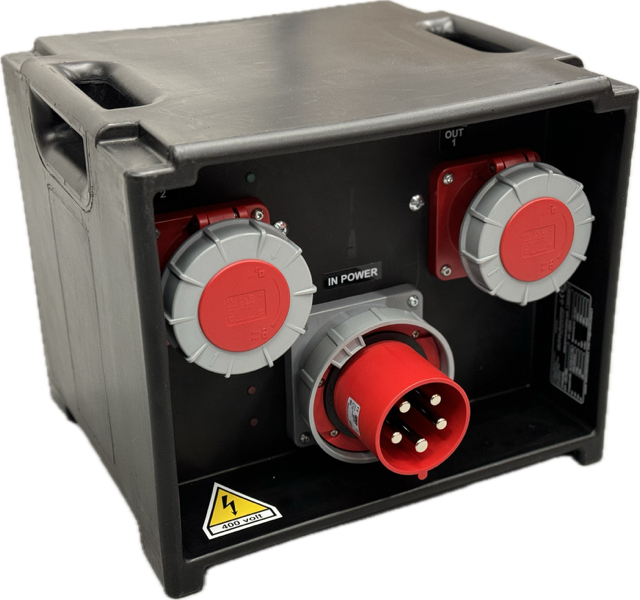

PowerBOX 125A 3pH+N+E 400V To 2 x 63A 3pH+N+E 400V MCB's

PowerBOX 125A 3pH+N+E 400V To 2 x 63A 3pH+N+E 400V MCB's

Incoming:
1 x 125Amp 3P+N+E 6h 400V IP67 Appliance inlet
Power Indicators 3 x LEDs red colour (F1)
Incoming Protection:
N/A
Outgoing:
2 x 63A 3P+N+E 400V 6h 400V IP67 Panel Sockets
Power Indicators 2 x LEDs green color
Outgoing Protection:
2 MCBs 63Amp 4p-C 6kA 4U (2 CEE 63A 5p sockets)
Additional Information:
1 hinged window 12U IP54
Power indicators
Standard RED Colour 400V Appliance Inlet & Sockets
Product Dimensions:
400x340x350mm
CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

40% lighter than Rubber and yet super shock resistant

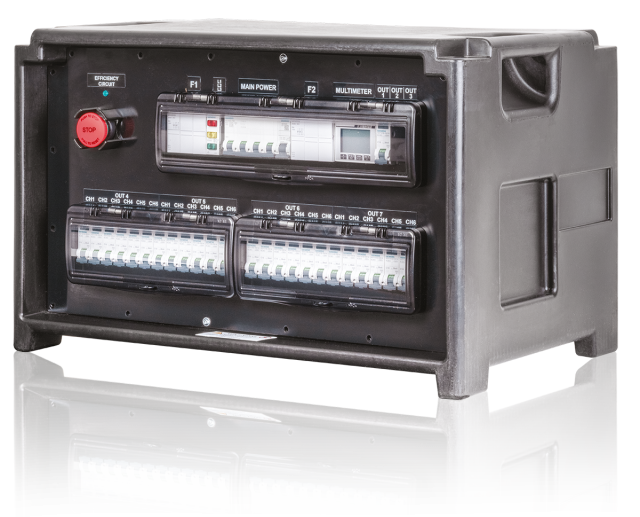

The PowerBox Cube Series is available in multiple sizes, each model being different just for the overall dimensions. The Cube boxes are molded in black insulating thermoplastic material, very resistant to shocks and the mechanical stress that these items will normally go through in their everyday usage (moving, constant handling etc.). They are easy to stack and to carry, with strong in-built handles. The total weight of our Cube boxes is 40% less than the standard rubber molded ones.



The CE UKCA marking is required for many products, it:

• shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
• is an indicator of a product’s compliance with EU legislation
• allows the free movement of products within the European market

Available in many different configurations, built to your individual specifications. Call us to build yours.

Made in Italy.
