PowerBOX 125A 3pH+N+E 400V To 2 x 63A 3pH+N+E + 2 x 32A 3pH+N+E 400V MCB's RCBO's

PowerBOX 125A 3pH+N+E 400V To 2 x 63A 3pH+N+E 400V MCB's

• Incoming:
  1 x 125Amp 3P+N+E 6h 400V IP67 Appliance inlet PCE Midnight Series
  Power Indicators 3 x LEDs red colour (F1)
  Incoming Protection:
  N/A
  Outgoing:
  2 x 32A 3P+N+E 400V 6h 400V IP44 Panel Sockets PCE Midnight Series
• 2 x 63A 3P+N+E 400V 6h 400V IP67 Panel Sockets PCE Midnight Series
  Power Indicators 4 x LEDs green color
  Outgoing Protection:
• 2 x RCBO C32 4p 6kA Idn 0,03A A 4M Din Type A
  2 MCBs 63Amp 4p-C 6kA 4U (2 CEE 63A 5p sockets)
  Additional Information:
  1 hinged window 12U IP54
  Power indicators
  Black Colour 400V Appliance Inlet & Sockets PCE Midnight Series

• Installed accessories: 1 fuse carrier 3pN 10x38mm 3M Din (F1) + 3 red led (IN, F1), 4 green leds (OUT), 1 earth stud 63A.


  Product Dimensions:
  box dimensions W600 x D400 x H380mm
  CE DECLARATION OF CONFORMITY

• IEC 61439-1 & 2 / PSC, CE / UKCA marking, Ue 400/230V 3PH+N+PE, fn 50Hz, InA 125A, Icc 6.000A, RDF 65/100, IP44, Electrical insulation class I (first).


  LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
  WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

40% lighter than Rubber and yet super shock resistant

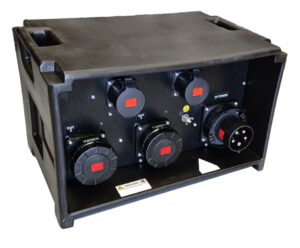

The PowerBox Cube Series is available in multiple sizes, each model being different just for the overall dimensions. The Cube boxes are molded in black insulating thermoplastic material, very resistant to shocks and the mechanical stress that these items will normally go through in their everyday usage (moving, constant handling etc.). They are easy to stack and to carry, with strong in-built handles. The total weight of our Cube boxes is 40% less than the standard rubber molded ones.



The CE UKCA marking is required for many products, it:

• shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
• is an indicator of a product’s compliance with EU legislation
• allows the free movement of products within the European market

Available in many different configurations, built to your individual specifications. Call us to build yours.

Made in Italy.
