Purchase options available:

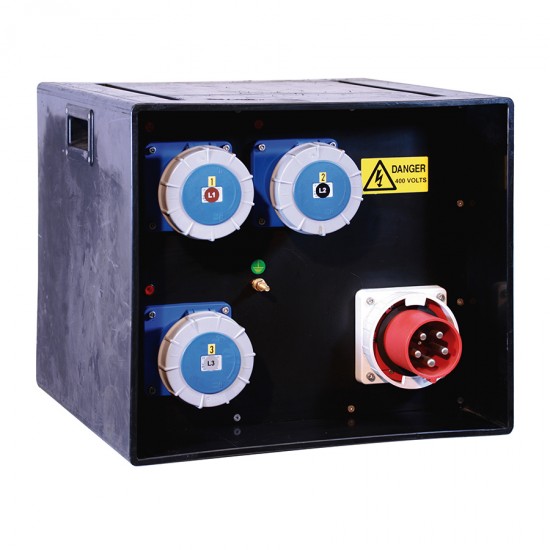

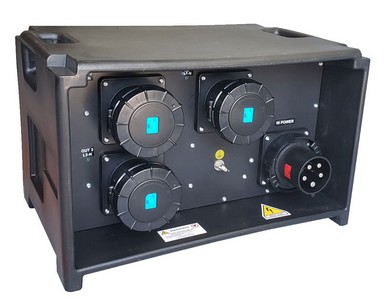

PowerBOX 125Amp 3pH+N+E 400V “CUBe” 3 x 125A 1pH+N+E 230V 3 x MCB's
Our No: 10907
Manufacturer No: PBF125P3M438
£1,599.00
£1,918.80 (inc VAT)
PowerBOX 125A 3PH+N+PE 400/230V CUBE64H38, p/n (PBF125P3M438).
Box: enclosure in solid black LLDPE (GWT 960°C, IP54, IK10), transportable, stackable, dimensions W600 x D400 x H380mm.
Incoming: 1 C-Form 125A 5p 6h 400V IP67 Red flanged plug.
Outgoing: 3 x C-Form 125A 3p 6h 230V IP67 Blue panel socket
Protection: 3 x MCB C125 2p 10.000/10kA 3M Din.
Installed accessories:
1 fuse carrier 3pN 10,3x38mm 3M Din
1 three-phase red led 1M Din +
1 compact multifunction network analyser 3M Din with miniature CTs + THD,
3 green leds (OUT),
1 earth stud.
Technical data:
IEC 61439-1 & 2 / PSC, Ue 400V 3PH+N+E, fn 50Hz, InA 125A, Icc 10.000A, RDF 100/100, IP54,
Electrical insulation class I (first).
Components arrangement:
rear side box / flanged plug (IN), sockets (OUT) with green leds and earth terminal.
Front side box / switches and instrumentation.
Box: enclosure in solid black LLDPE (GWT 960°C, IP54, IK10), transportable, stackable, dimensions W600 x D400 x H380mm.
Incoming: 1 C-Form 125A 5p 6h 400V IP67 Red flanged plug.
Outgoing: 3 x C-Form 125A 3p 6h 230V IP67 Blue panel socket
Protection: 3 x MCB C125 2p 10.000/10kA 3M Din.
Installed accessories:
1 fuse carrier 3pN 10,3x38mm 3M Din
1 three-phase red led 1M Din +
1 compact multifunction network analyser 3M Din with miniature CTs + THD,
3 green leds (OUT),
1 earth stud.
Technical data:
IEC 61439-1 & 2 / PSC, Ue 400V 3PH+N+E, fn 50Hz, InA 125A, Icc 10.000A, RDF 100/100, IP54,
Electrical insulation class I (first).
Components arrangement:
rear side box / flanged plug (IN), sockets (OUT) with green leds and earth terminal.
Front side box / switches and instrumentation.
Type:
Industrial Commando
Housing Material:
Polypropylene
Format:
Portable
Incoming Amperage:
125A
Number Of Phases (Incoming):
Three Phase (3P+N+E)
Outgoing Sockets:
125A (Single Phase 2P+E)
Incoming Protection:
None
Outgoing Protection:
MCB
Additional Features:
Earth Stud
Metering
