PowerBOX 125amp 3PH+N+PE 400 CUBE 6 x 32A 5p 3 x 32A 3p 6h 400V IP67
Our No: 12006
Manufacturer No: PBF125P 3M2 6P2 67-S (Siemens).
£2,499.00
£2,998.80 (inc VAT)
PowerBOX 125amp 3PH+N+PE 400/230V CUBE6467, p/n PBF125P 3M2 6P2 67-S (Siemens).
Box: enclosure in solid black LLDPE (GWT, IP54, insulated), transportable, stackable.
Incoming: 1 C-Form 125A 5p 6h 400V IP67 Appliance Inlet
Main OUT: 1 MCB C125 4p 10kA 6M Din.
Outgoing:
3 x C-Form 32A 3p 6h 230V IP67 panel sockets PCE Midnight Series
6 x C-Form 32A 5p 6h 400V IP67 panel sockets PCE Midnight Series
Protection:
3 x RCBO C32 1pN 4.5kA Idn 0,03A A 2M Din (Siemens).
6 x RCBO C32 4p 6kA Idn 0,03A A 4M Din (Siemens).
Installed accessories: 1 fuse carrier 3pN 10x38mm 3M Din (F1) + 1 three-phase voltage indicator light 1M Din, 9 green leds (OUT), 1 earth stud 63A.

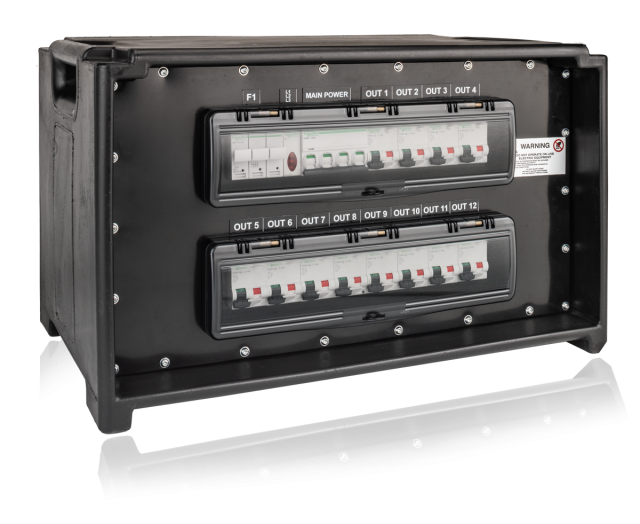

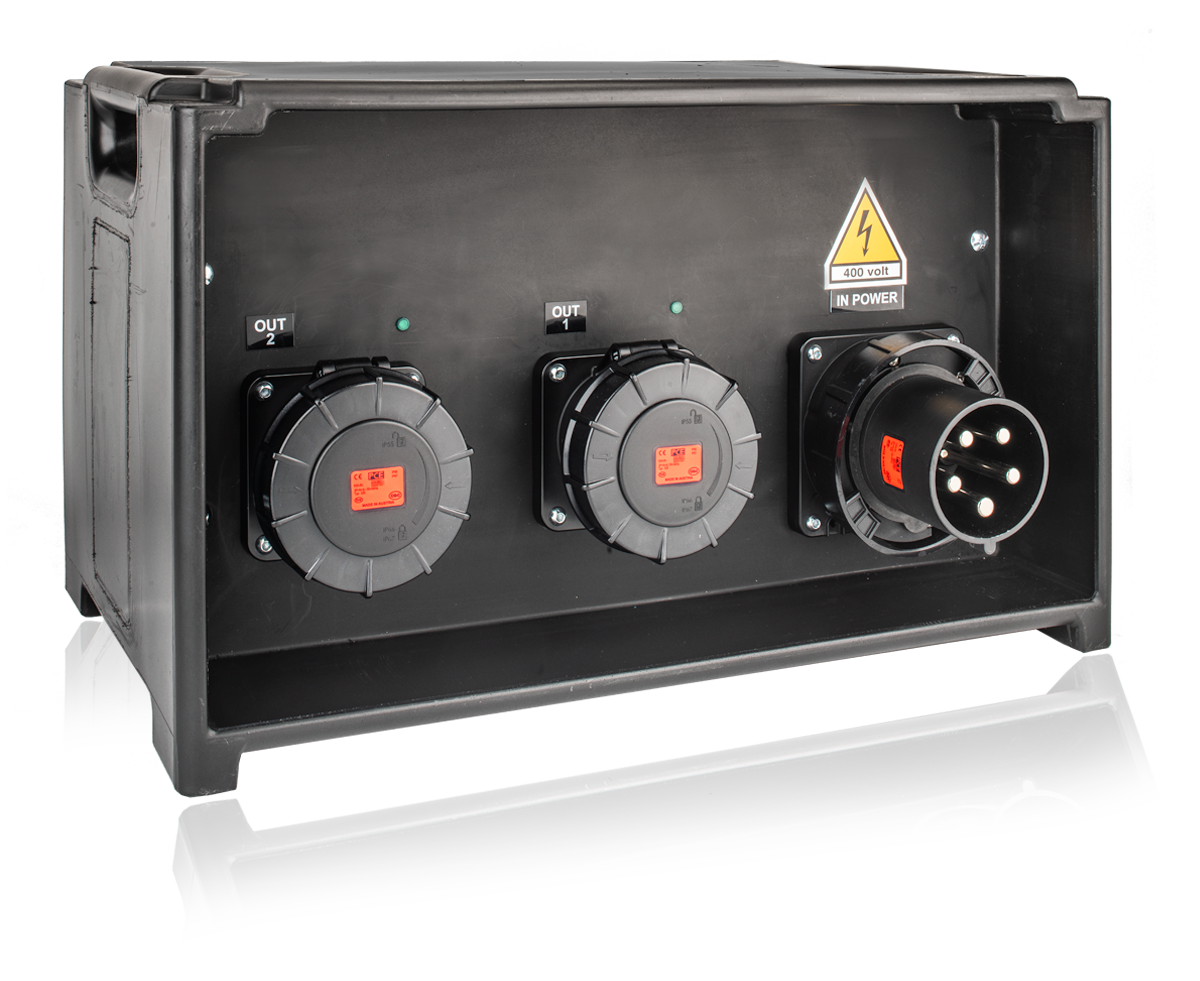

Components arrangement: rear side box / flanged plug (IN), panel socket (OUT) with green leds and earth terminal. Front side box / Main switch and protection switches.
Other notes: box dimensions W600 x D400 x H670mm, weight 30,00kg approx.
Technical data: IEC 61439-1 & 2 / PSC, CE / UKCA marking, Ue 400/230V 3PH+N+PE, fn 50Hz, InA 125A, Icc 6.000A, RDF 50/100, IP54, Electrical insulation class I (first).
Brand:
Custom
Type:
Industrial Commando
Housing Material:
Polypropylene
Format:
Portable
Incoming Amperage:
125A
Number Of Phases (Incoming):
Three Phase (3P+N+E)
Outgoing Sockets:
32A (Single Phase 2P+E)
32A (Three Phase 3P+N+E)
Incoming Protection:
MCB
Outgoing Protection:
RCBO
Additional Features:
Earth Stud
