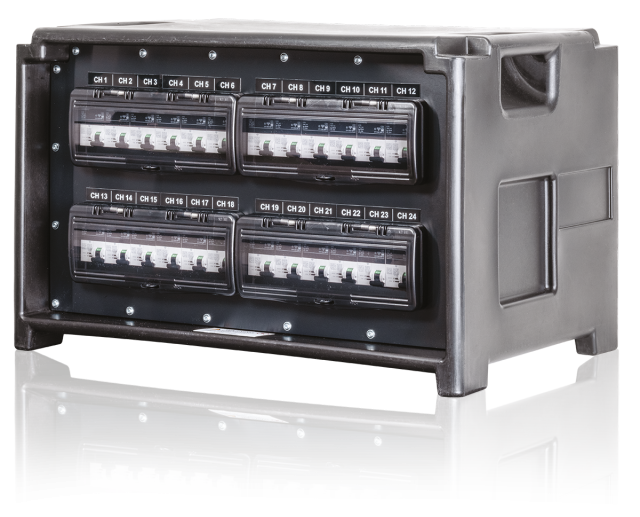

PowerBOX 63Amp 1pH+N+E 230V “CUBe3” 4 x Socapex 19Pin Panel Sockets RCBO

PowerBOX 63Amp 1pH+N+E 230V “CUBe3” 4 x Socapex 19Pin Panel Sockets 24 x RCBO


Made of special insulating material mixes (respondent GLOW WIRE TEST), we have reduced the weight by 50% and eliminated the risk of rupture of the installed components, making it so light that you'll forget old rubber panels. Stackable and transportable.

Power distribution box, ideal for the stage and events environment, supplied with PCE Midnight Series (Black) plugs and sockets with MCB Type C on the incoming & RCBO breakers on each outgoing socket.

Made in Italy.

PowerBOX 63amp 1pH+N+E 230V CUBe3

• INCOMING : 1 CEE-17 63amp 3p 6h 230V IP67 appliance inlet.
• MAIN OUT : 1 MCB 63amp 2p-C 6.000/10kA.

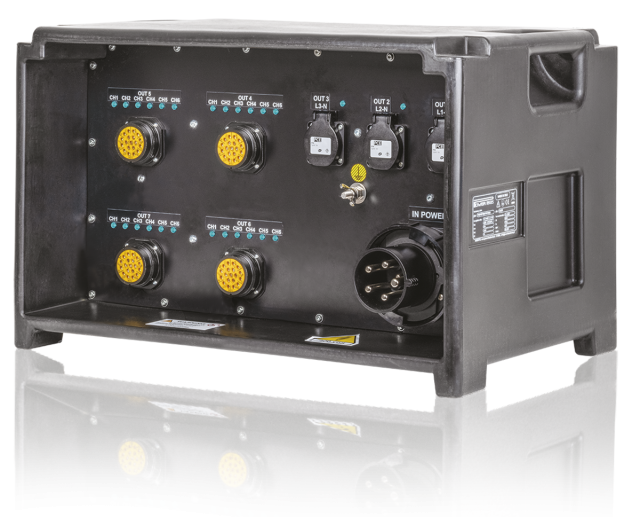

• OUTGOING : 4 x SYNTAX SSX 19-pin IP67 (SOCA) with IP67 Caps
• Protection:
• 24 x RCBO 16amp 1pN-C 6.000A Idn=0,03A A type.
• INSTALLED ACCESSORIES :
• 1 x red led (IN ;
• 1 x fuse switch 1pN 10,3x38mm (F1),
• 24 x green leds (OUT),
• 1 x earth stud.

TECHNICAL DATA : IEC 61439-1 & 2 / PSC, Ue : 230V 1pH+N+PE, fn : 50Hz, InA : 63amp, Icc : 6.000A, RDF : 16/100, IP : 54,
Electrical Insulation class : I (first).




CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Available in many different configurations, built to your individual specifications. Call us to build yours.
