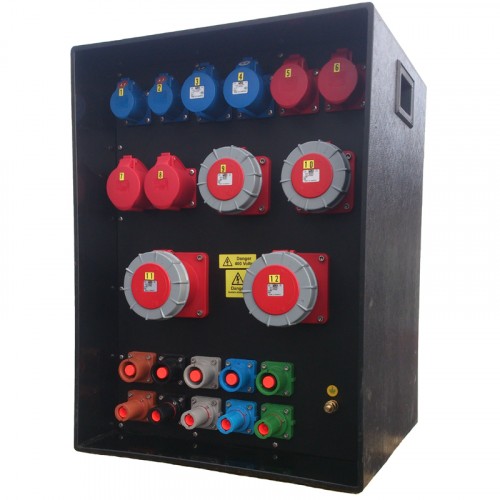

Powerlock Event Distro Box 400Amp 3pH+N+E In/Thru with Variable Earth Leakage Protection

Primarily designed and manufactured for use within the events industry our range of bespoke portable event power distribution units provide all of the essential requirements for a successful installation.

Manufactured from a 300-grade medium density black polypropylene sheet and of a fully welded construction, this range of unit provides the perfect solution to a wide range of applications where reliable power distribution is required.  Sockets / access windows and handles are all recessed to afford mechanical protection. All units within this range are suitable for indoor or outdoor use and can be designed and manufactured to suit individual customer requirements.
Manufactured using only quality materials and components, wherever possible sourced locally ensures the reliability which is crucial when powering up events.

These units are fully tested by NAPIT approved electricians prior to despatch to ensure compliance with BS7671 and are issued with full test certification.
We can also manufacture distribution boards from most materials and design the equipment to meet individual customer specifications.

These units can be built to your individual specification, please call or email us with your requirements.
Technical info for this unit

• Incoming Circuit:
• 400A 400V 3P+N+E  Powerlock Set
•  Incoming Protection:
• 400A 4P MCCB
• Outgoings Circuits:
• 1 x 400A 400V 3P+N+E Powerlock Set ( Feed Through)
• Outgoings Circuits:
• 2 x 125A 400V 3P+N+E IP67
• Protection: 2 x 125A 4 Pole "C" MCB + Variable Earth Leakage
• Outgoings Circuits:
• 2 x 63A 400V 3P+N+E 1P67
• Protection: 2 x 63A 4 Pole "C" MCB + Variable Earth Leakage.
• Outgoings Circuits:
• 2 x 32A 400V 3P+N+E
• Protection:3 x 32A 30ma 4 Pole "C" RCBO
• Outgoings Circuits:
• 2 x 32A 230V 1P+N+E
• Protection: 2 x 32A 30ma 2 Pole "C" RCBO
• Outgoings Circuits:
• 2 x 16A 230V 1P+N+E
• Protection: 2 x 16A 2 Pole "C" RCBO
• Outgoings Circuits:
• 2 x 16A 400V 3P+N+E
• Protection: 2 x 16A 4 Pole "C" RCBO

These distribution units are manufactured here in the UK and are tested to ensure compliance with BS7671. All are issued with full test certification (12 month warranty).

These units can be built to your individual specification, please call us to build yours.
