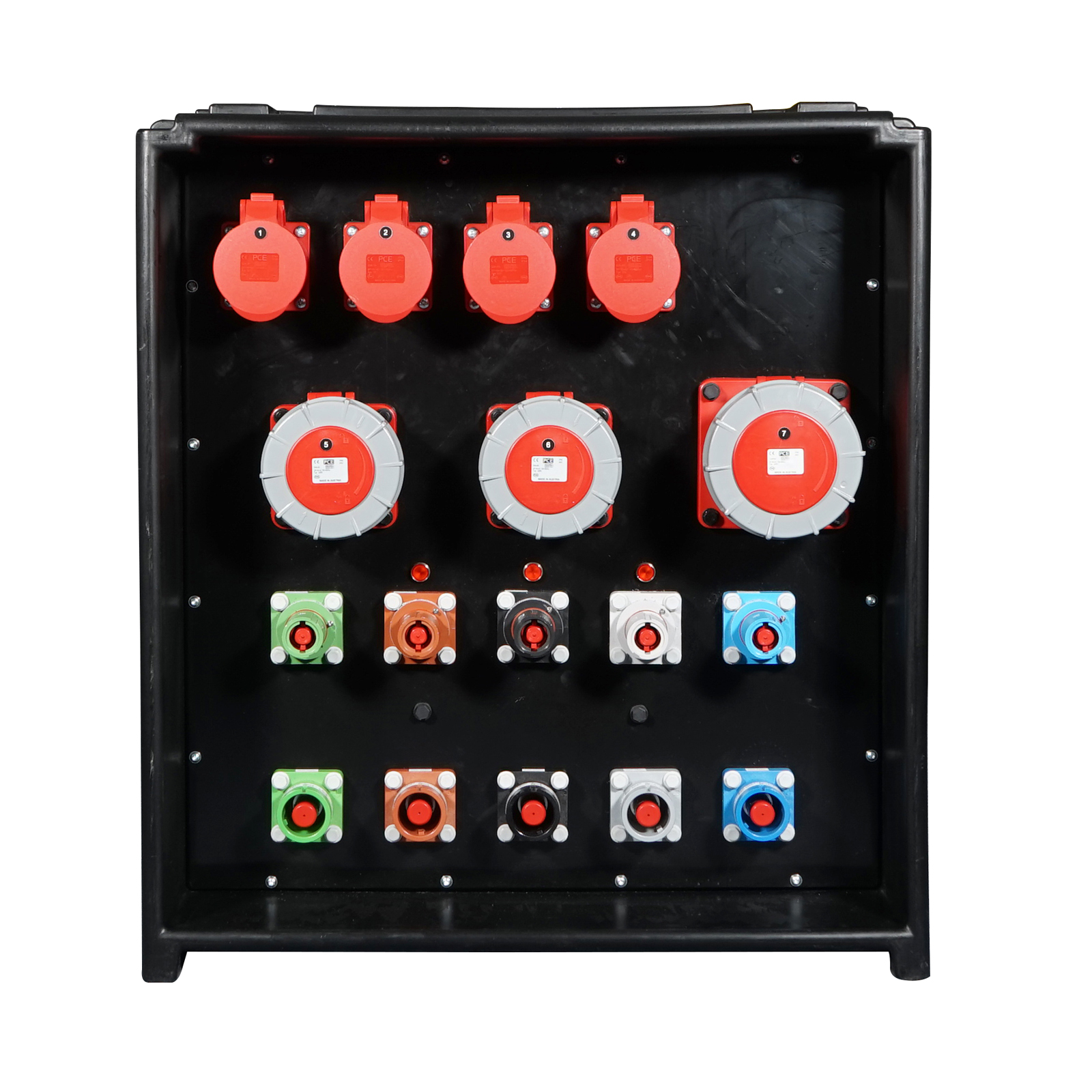

PowerBOX 400Amp 3pH+N+E 400V IP67 Powerlock Loop Through

Made of special insulating material mixes (respondent GLOW WIRE TEST), we have reduced the weight by 50% and eliminated the risk of rupture of the installed components, making it so light that you'll forget old rubber panels. Stackable and transportable.

Power distribution box, ideal for the stage and events environment, supplied with PCE Midnight Series (Black) plugs and sockets with MCB Type C on the outgoing sockets.
Made in Italy.


PowerBOX 400A 3pH+N+PE 400V CUBe42,

Incoming :
5 x Powerlock PowerSYNTAX (powerlock 400A) 480A “L1-L2-L3-N-PE” 400V IP67.

Loop / Through : 5 x powerSYNTAX (powerlock 400A) 480A “L1-L2-L3-N-PE” 400V IP67
with dust caps IP53.

Outgoing :
4 x CEE-17 32A 3pH+N+E  6h 400V IP44 black panel sockets.
Protection:
4 x MCB 32A 4p-C 6.000A.

2 x CEE-17 63A 3pH+N+E  6h 400V IP67 black panel sockets.
Protection:
2 x MCB 63A 4p-C 6.000A.

1 CEE-17 125A 3pH+N+E  6h 400V IP67 black panel socket
Protection:
1 x MCB 125A 4p-C 10.000A.

Installed accessories : 1 fuse-switch 3pN 10,3x38mm (F1) + 1 set incoming leds.

Technical data : IEC 61439-1 & 2 / PSC, Un: 400V 3pH+N+PE, fn : 50Hz, InA: 400A, Icc : 10.000A, RDF: 51/100, IP : 44, Electrical insulation class : I (first).







CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is 4, Electrical insulation class : I (first

required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Available in many differennt configurations, built to your individual specifications. Call us to build yours.
