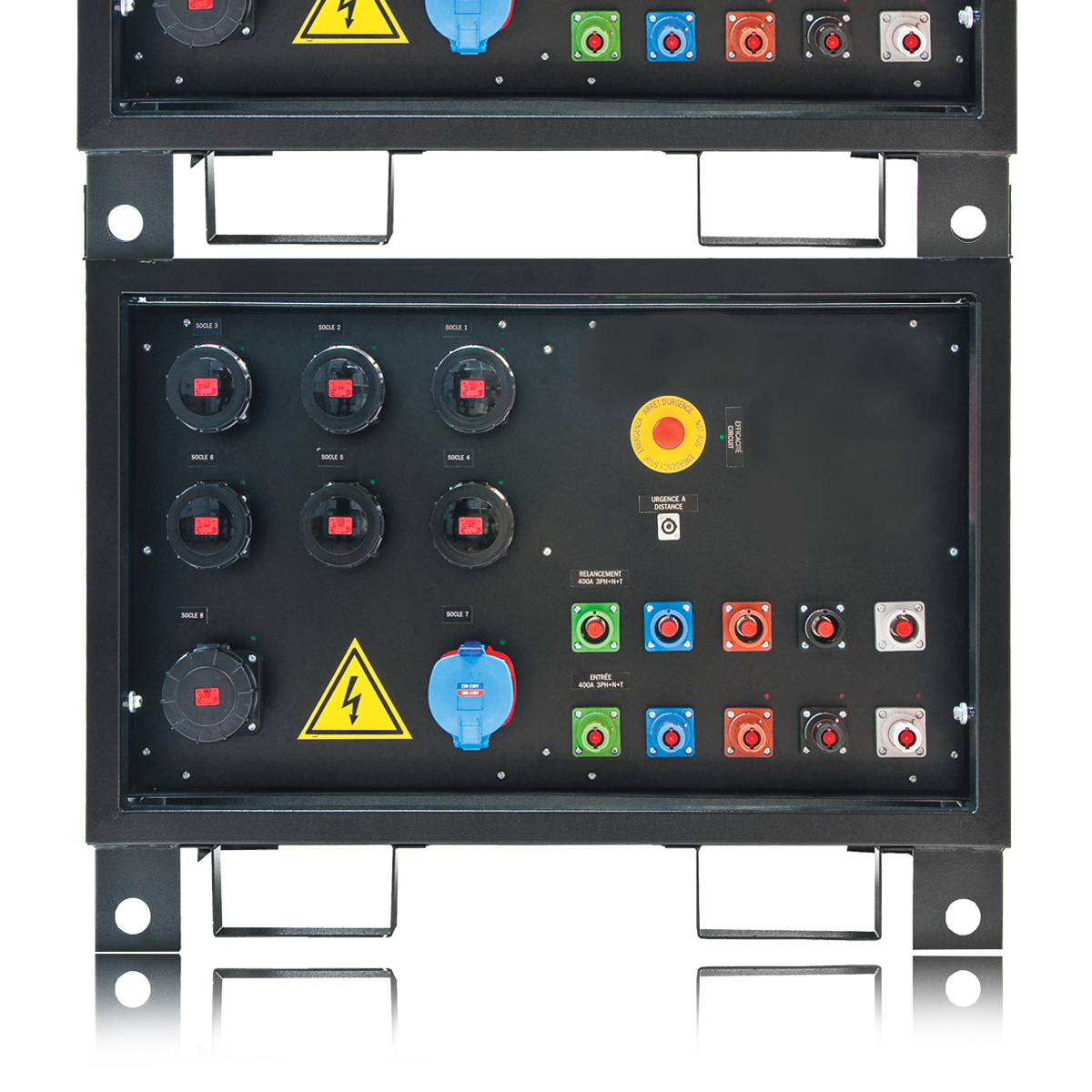

PowerBOX 400Amp 3PH+N+PE 400V HEAVY DUTY 2 x 24U Made of Steel
Our No: 10118
Manufacturer No: PBF400P224U-(3M13M26P23P33P4-L)
Call us for pricing and ordering
The PowerBox Heavy Duty distros are resistant and strong, so they are especially suited for broadcasting, sport events, fairs and any kind of outdoor applications. They are easy to move as the structure is designed to be stackable and allows usage of forklift or lifting cables. All components are fitted with screws resistant to vibrations, shocks and all forms of mechanical stress they might be exposed to, in order to ensure maximum safety over time. All the designs can be customized to the smallest detail: input and outputs, switches, protection devices, displays, connectors' colors etc. From 16 to 400 Amp or even higher current ratings, and several operating voltage options.
) PowerBOX 400A 3PH+N+PE 400/230V HEAVY DUTY 2x12U, p/n PBF400P212U-(3M13M26P23P33P4-L).
INCOMING :
5 x panel drain powerSYNTAX® 480A L1-BR L2-BK L3-GY N-BL PE-GN 400V IP67 with IP67 caps.
LOOP / THROUGH :
5 x panel source powerSYNTAX® 480A L1-BR L2-BK L3-GY N-BL PE-GN 400V IP67 with IP67 caps.
MAIN OUT : 1 MCCB 400A 4p 36kA.
OUTGOING :
3 x C-Form 16A 3p 230V IP44/54 blue panel socket / 3 x RCBO 16A 1pN-C 6.000A Idn30mA Type A.
3 x C-Form 32A 3p 230V IP44/54 blue panel socket / 3 x RCBO 32A 1pN-C 6.000A Idn30mA Type A.
6 x C-Form 32A 5p 400V IP44/54 red panel socket / 6 x MCB 32A 4p-C 6.000/10kA & RCCB 40A 4p Idn30mA Type A.
3 x C-Form 63A 5p 400V IP67 red panel socket / 3 x MCB 63A 4p-C 6.000/10kA & E/L Idn / delay adjustable Type A.
3 x C-Form 125A 5p 400V IP67 red panel socket / 3 x MCB 125A 4p-C 10.000/10kA & E/L Idn / delay adjustable Type A.
INSTALLED ACCESSORIES : 1 three-phase red led 1M Din + 1 analogic voltmeter + 1 selector switch (IN; 1 fuse switch 3pN),
1 LCD multimeter (OUT; 1 fuse switch),
1 earth stud.
1 E-STOP “pull to release” (front P-BOX), 1 powerCON TRUE1 with cap (for remote E-STOP).
TECHNICAL DATA : IEC 61439-1 & 2 / PSC, Un/Ue 400V 3PH+N+PE, fn 50Hz, InA 400A, Icc 6.000A, RDF 50/100, IP 44,
Electrical insulation class I (first).
Dimensions : W1.200 x D800 x H700mm.
Weight : 110kg.
) PowerBOX 400A 3PH+N+PE 400/230V HEAVY DUTY 2x12U, p/n PBF400P212U-(3M13M26P23P33P4-L).
INCOMING :
5 x panel drain powerSYNTAX® 480A L1-BR L2-BK L3-GY N-BL PE-GN 400V IP67 with IP67 caps.
LOOP / THROUGH :
5 x panel source powerSYNTAX® 480A L1-BR L2-BK L3-GY N-BL PE-GN 400V IP67 with IP67 caps.
MAIN OUT : 1 MCCB 400A 4p 36kA.
OUTGOING :
3 x C-Form 16A 3p 230V IP44/54 blue panel socket / 3 x RCBO 16A 1pN-C 6.000A Idn30mA Type A.
3 x C-Form 32A 3p 230V IP44/54 blue panel socket / 3 x RCBO 32A 1pN-C 6.000A Idn30mA Type A.
6 x C-Form 32A 5p 400V IP44/54 red panel socket / 6 x MCB 32A 4p-C 6.000/10kA & RCCB 40A 4p Idn30mA Type A.
3 x C-Form 63A 5p 400V IP67 red panel socket / 3 x MCB 63A 4p-C 6.000/10kA & E/L Idn / delay adjustable Type A.
3 x C-Form 125A 5p 400V IP67 red panel socket / 3 x MCB 125A 4p-C 10.000/10kA & E/L Idn / delay adjustable Type A.
INSTALLED ACCESSORIES : 1 three-phase red led 1M Din + 1 analogic voltmeter + 1 selector switch (IN; 1 fuse switch 3pN),
1 LCD multimeter (OUT; 1 fuse switch),
1 earth stud.
1 E-STOP “pull to release” (front P-BOX), 1 powerCON TRUE1 with cap (for remote E-STOP).
TECHNICAL DATA : IEC 61439-1 & 2 / PSC, Un/Ue 400V 3PH+N+PE, fn 50Hz, InA 400A, Icc 6.000A, RDF 50/100, IP 44,
Electrical insulation class I (first).
Dimensions : W1.200 x D800 x H700mm.
Weight : 110kg.
