PowerBOX 125Amp 3pH+N+E 400V 19”Mountable Steel Box with Shunt Release + Earth Leakage

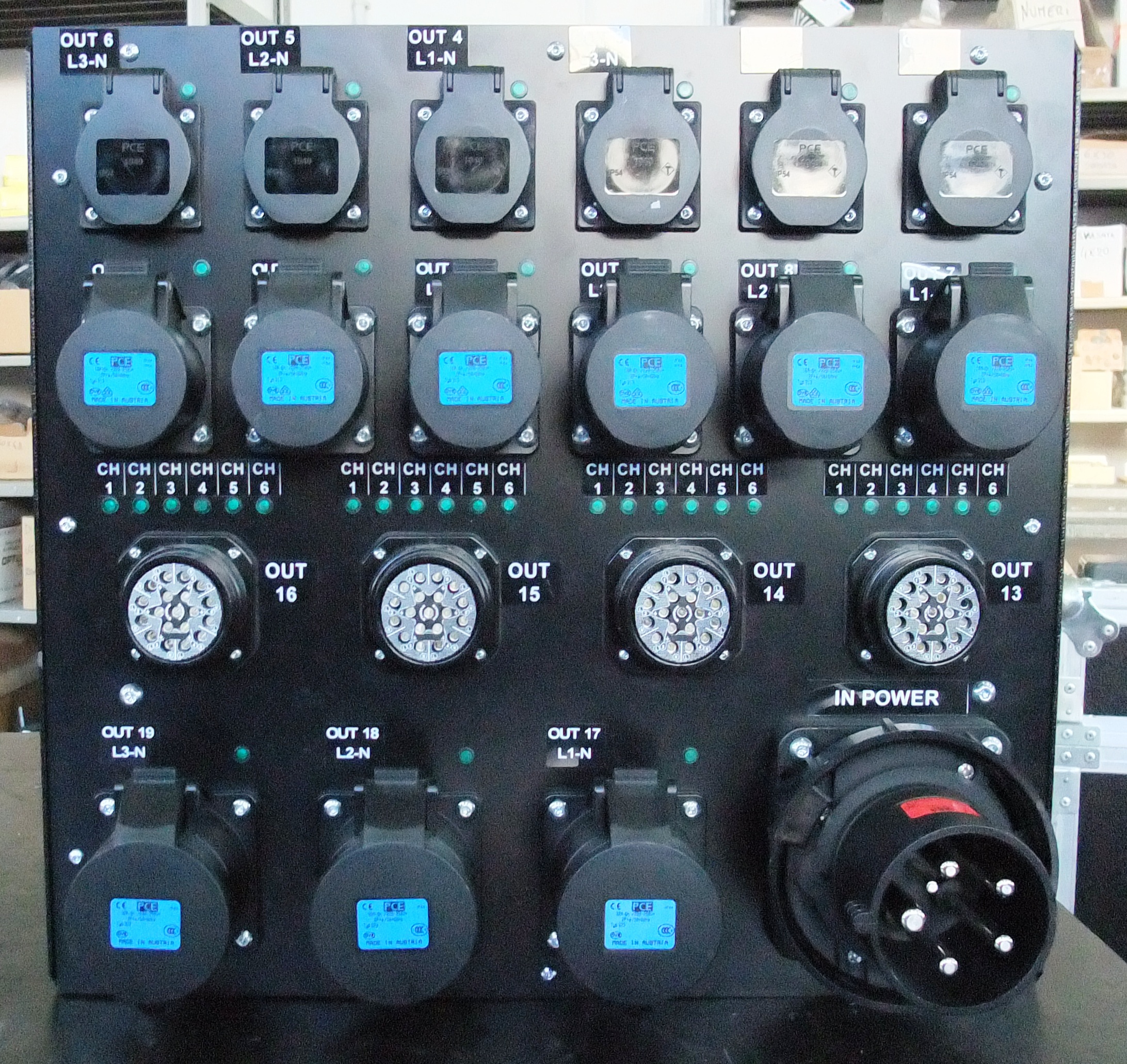

Image used for illustration purposes only

PowerBOX 125Amp 3pH+N+E 400V  19”Mountable Steel Box with Shunt Release + Electronic Earth Leakage

PowerBOX 19” mountable box ( made of steel, painted black color ), height 12U

1) PowerBOX 125Amp 3ph+N+E 400V “RACK 19” Rack Mountable Bespoke DISTRO 12U” series,
box:

• 1 rack 19” mountable box ( made of steel, painted black color ), height 12U.
• 2 x PVC-CAW panel front thickness 10mm., black color, ( insulating 39kv/mm ).
• Rear:
• 3 x 16Amp 1pH+N+E  6h 230V IP44 panel socket black color ( OUT ) + 3 x led green color.
• 6 x 32Amp 1pH+N+E  6h 230V IP44 panel socket black color ( OUT ) + 6 x led green color.
• 6 x 32Amp 3pH+N+E  6h 400V IP44 panel socket black color ( OUT ) + 6 x led green color.
• 2 x 63Amp 3pH+N+E  6h 400V IP67 panel socket black color ( OUT ) + 2 x led green color.
• 1 x 125Amp 3pH+N+E  6h 400V IP67 appliance inlet black color ( IN ).
• Front:
• 1 x  MCB 125Amp 4p-C 10kA ( MAIN ) + 1 shunt release 220/240V + 1 electronic earth leakage sensitivity and time delay adjustables
• 1 x emergency stop and yellow guard ring ( panic button ) .
• 3 x MCB 16Amp 1pN-C 4.5kA ( 3 x CEE 16amp single-phase ).
• 6 x MCB 32Amp 1pN-C 4.5kA ( 6 x CEE 32amp single-phase ).
• 6 x MCB 32Amp 3pN-C 6kA ( 6 x CEE 32amp three-phase ).
• 2 x MCB 63Amp 4p-C 6kA ( 2 x CEE 63amp three-phase ).
• notes:
• - 125Amp, 3pH+N+E 400V 50Hz, IP2x, Icc=10kA, insulation class I.
• - wired, tested and ready for the final installation.
•

Example built to order configuration below. Call us to build yours

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Made in Italy.

Also available in other configurations, please call for more information.


Image used for illustration purposes only.
