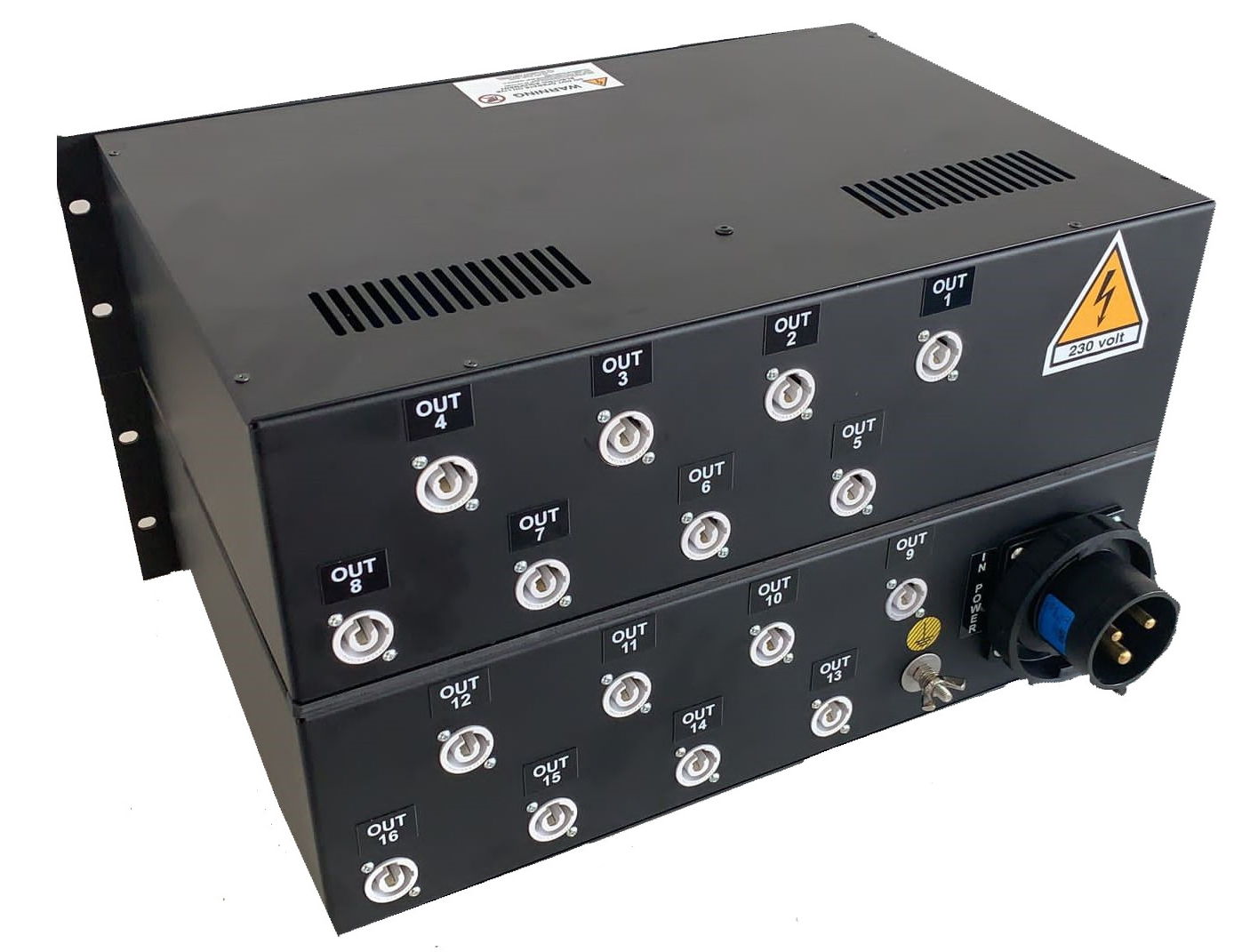

PowerBOX 32Amp 1pH+N+E 230V 19” Mountable Steel Box 6U 16 x Neutrik PowerCON Grey MCB
Our No: 9826
Manufacturer No: PBF32M16PC-R6U
£1,199.00
£1,438.80 (inc VAT)
P-BOX 32amp 1pH+N+PE 230V 19" RACK DISTRO BOX 6U,
box :
1 rack 19” mountable box (made of steel, painted black), height 6U, depth 300mm. (excluding installed components).
rear :
IEC 61439-1 & 2 / PSC, Un : 230V 1pH+N+PE, fn : 50Hz, InA : 32A, Icc : 6.000A, RDF : 12,5/100, IP : 2x, Electrical insulation class : I (first).
box :
1 rack 19” mountable box (made of steel, painted black), height 6U, depth 300mm. (excluding installed components).
rear :
- 1 CEE-P17 32amp 3p 6h 230V IP67 black appliance inlet (IN POWER).
- 16 x powerCON 20amp 3p 230V IP2x grey panel out connector (from OUT1 to OUT16).
- 1 earth stud.
- 1 fuse switch 1pN 10,3x38mm 1M DIN (F1) + 1 set incoming leds (L1-N-FAULT).
- 1 MCB 32amp 2p-D 10.000A 2M DIN (MAIN SWITCH).
- 10 x MCB 16amp 1pN-C 6.000A 1M DIN (from OUT1 to OUT10).
- 6 x MCB 16amp 2p-D 10.000A 2M DIN (from OUT11 to OUT16).
- 2 hinged windows DIN IP54.
IEC 61439-1 & 2 / PSC, Un : 230V 1pH+N+PE, fn : 50Hz, InA : 32A, Icc : 6.000A, RDF : 12,5/100, IP : 2x, Electrical insulation class : I (first).
Type:
PowerCON
Housing Material:
Metal
Format:
Rack Mountable (19")
Incoming Amperage:
32A
Number Of Phases (Incoming):
Single Phase (2P+E)
Incoming Protection:
MCB
Outgoing Protection:
MCB
Additional Features:
Earth Stud
Outgoing Sockets:
PowerCON Grey
