PowerBOX 32Amp 3pH+N+E 400V 19” Mountable Steel Box 3U PowerCON Grey + RCBO's

Power BOX 32amp 3pH+N+E 400V “RACK 19” DISTRO 3U” series, p/n DZ7956
box:
1 rack 19” mountable box (made of steel, painted black), height 3U, depth 300mm.
rear panel: Outgong Sockets

• 2 x CEE-17 32amp 1pH+N+E  6h 230V IP44 panel socket blue color (OUT 1&2 )
• 4 x PowerCON 20Amp 230V IP2x grey color panel connector (OUT 3, 4, 5 and 6; L3n).

front panel: Protection & Instrumentation

• 1 CEE-17 32amp 5p 6h 400V IP67 appliance inlet red color (IN) + 3 led red color (L1-L2-L3; incoming main led).
• 1 MCB 32amp 4p-C 6.000A (MAIN).
• 1 digital multimeter LCD graphic 4 DIN modules (MULTIMETER; DMG200 Lovato).
• 1 RCBO 32amp 1pN-C 6.000A IΔn=0,03A Type A (OUT 1; L1n).
• 1 RCBO 32amp 1pN-C 6.000A IΔn=0,03A Type A(OUT 2; L2n).
• 4 x RCBO 16amp 1pN-C 6.000A IΔn=0,03A Type A (OUT 3, 4, 5 and 6; L3n).
• Nominal data: Ue: 400V 3pH+N+E, fn=50Hz, InA=32amp, Icc=6.000A, RDF=50%, IP=2x, insulation class I.

Example built to order configuration below. Call us to build yours

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Made in Italy.

Also available in other configurations, please call for more information.

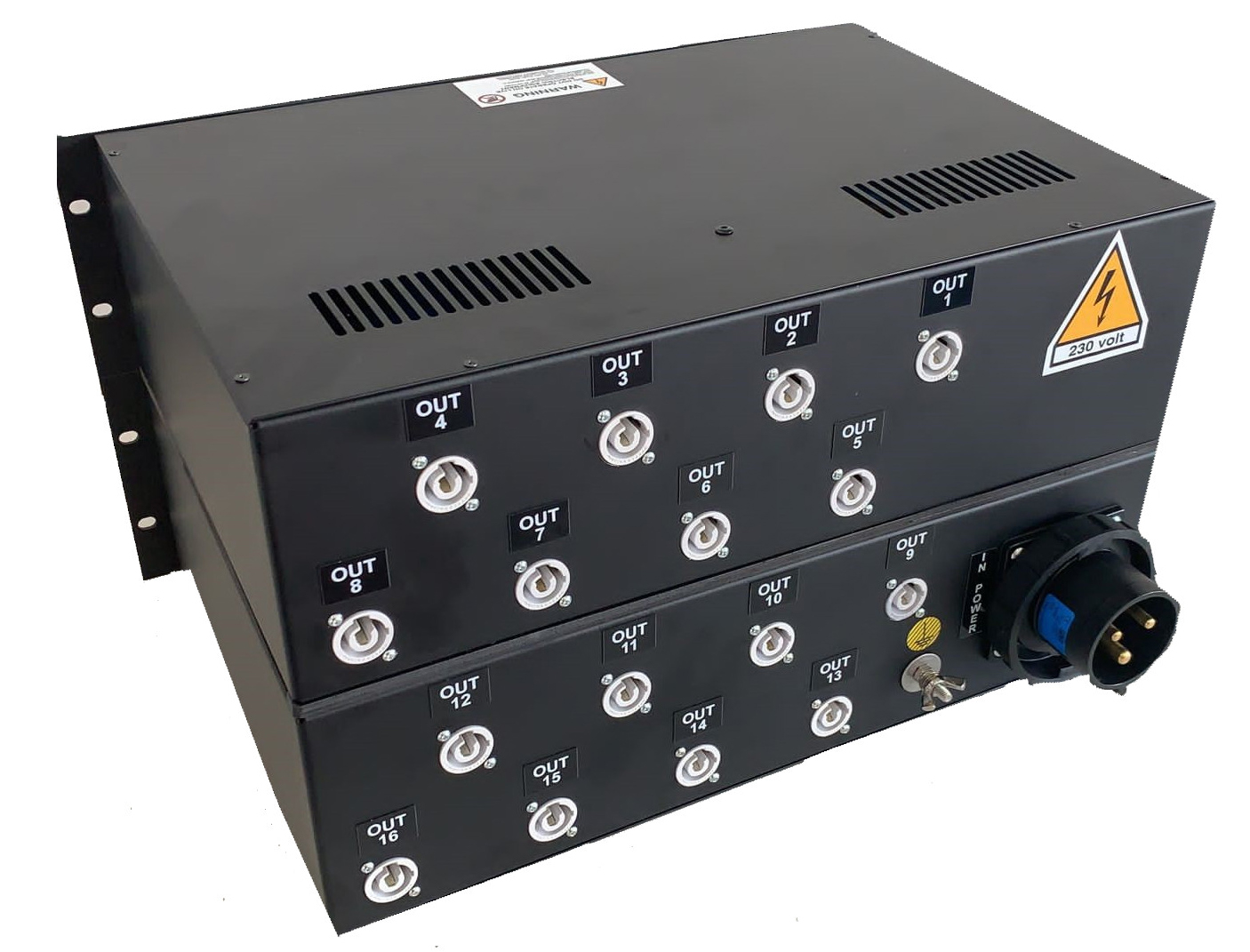

Image used for illustration purposes only.
