PowerBOX 63Amp 1pH+N+E 230V 19" Mountable Steel Box 5U 6 x Neutrik PowerCON Grey MCB

PowerBOX 19-Inch Rack Mount 5U Mains Distribution Unit 63A 2P+E 230V to 6 x  Neutrik PowerCON Grey

1) rack power device ( IP2x ) with:
- n. 1 Panel Standard Rack 19" height 5U in PVC-CAW ( thickness 10mm., black color, insulating 39kv/mm );

Incoming:
- n. 1 x 63Amp 2P+E 6h 230V IP67 appliance inlet ( IN );
Incoming Protection:
- n. 1 MCB 63Amp 2p-C 6kA 2U ( MAIN );
Outgoing:
- n. 6 x PowerCON 20A 3p 230V IP2X chassis connector ( power-out, grey color ).
Outgoing Protection:
- n. 6 x  MCBs 16Amp 1pN-C 4.5kA 1U;

- wired, tested and ready for the final installation.

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

Made in Italy.

Also available in other configurations, please call for more information.

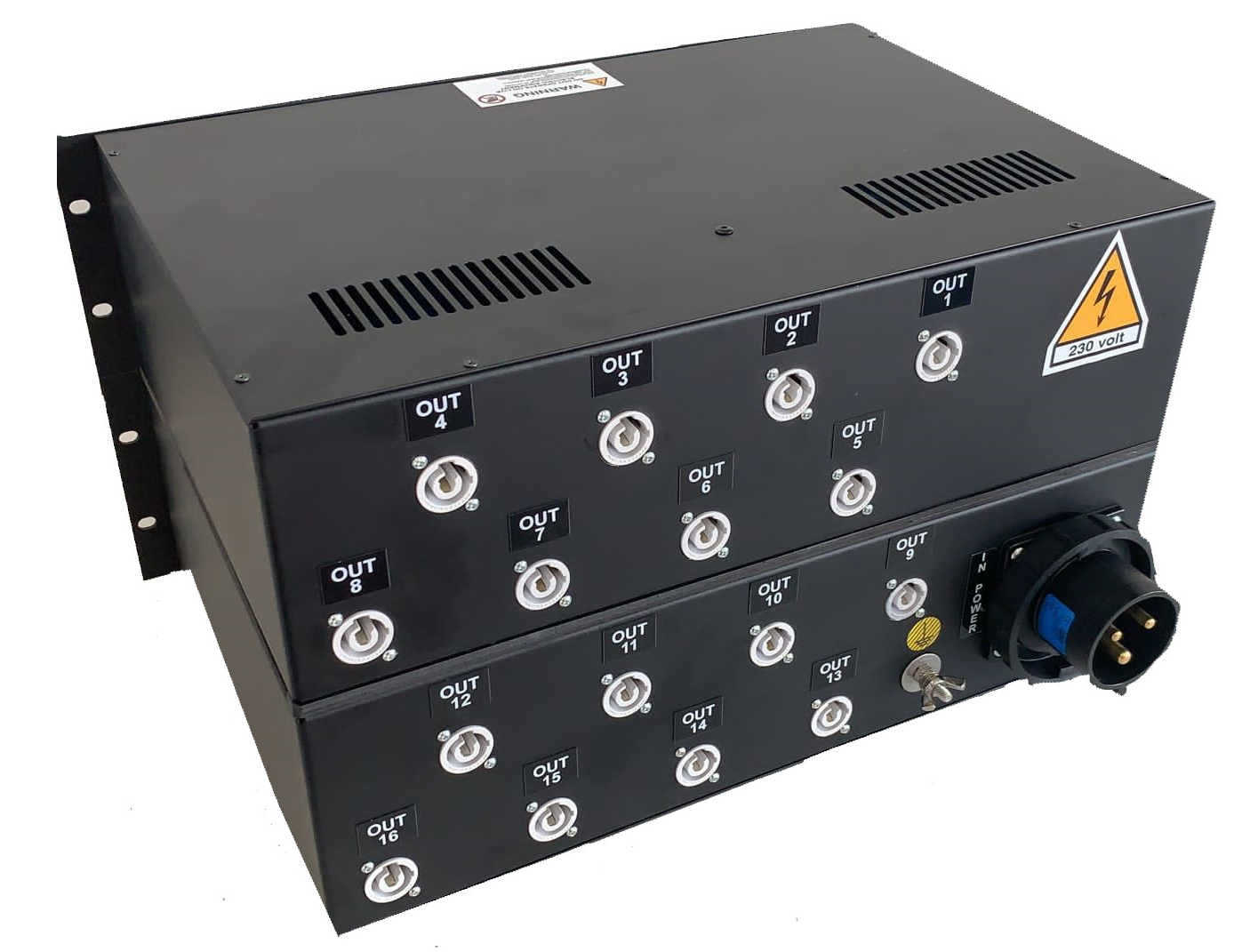

Image used for illustration purposes only.
