PowerBOX 63Amp 3pH+N+E 400V 19" Mountable Steel Box 6U 14 x Neutrik PowerCON Grey RCBO's

PowerBOX 63amp 3pH+N+E 400V “RACK 19” DISTRO 6U with 1 MCB 63Amp 4p-C 6kA ( MAIN ) + 1 shunt trip MX 220/415V + 1 electronic earth leakage sensitivity and time delay adjustable

PowerBOX 63Amp 3pH+N+E 400V “RACK 19” DISTRO 6U”, p/n PBF63P4BS14PC2M2-R6U.
box:
1 rack 19” mountable box ( made of steel, painted black ), height 6U, depth 30cm.
Rear:

• 2 x 32Amp 1pH+N+E  6h 230V IP44 panel socket black color ( OUT ).
• 14 x PowerCON 20amp 3p 230V IP2x panel connector grey color ( OUT ).
• 4 x BS 13amp 1pH+N+E  230V IP54 panel socket black color ( OUT ).

Front:

• 1 63Amp 3P+N+E 5p 6h 400V IP67 appliance inlet black color ( IN ).
• 1 fuse switch 3pN 10,3x38mm. ( F1 ) + 1 three-phase voltage indicator light red ( L1-L2-L3 ).
• 1 MCB 63Amp 4p-C 6kA ( MAIN ) + 1 shunt trip MX 220/415V + 1 electronic earth leakage sensitivity and time delay adjustable.
• 1 fuse switch 3pN 10,3x38mm. ( F2 ) + 1 multimeter LCD graphic ( MULTIMETER ).
• 2 x RCBO 32Amp 1pN-C 6kA IΔn=0,03A Type A ( 2 x CEE-17 32amp single-phase ).
• 14 x RCBO 16Amp 1pN-C 6kA IΔn=0,03A Type A ( 14 x PowerCON 20amp ).
• 4 x RCBO 10Amp 1pN-C 4.5kA IΔn=0,03A Type A ( 4 x BS 13amp ).
• notes:
• - IEC 61439-1 & 2, CE Marking, InA=63amp, Ue: 3pH+N+E 400V, fn=50Hz, IP=2x, Icc=6kA, insulation class I.
• - wired, tested and ready for the final installation.



- wired, tested and ready for the final installation.

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

Made in Italy.

Also available in other configurations, please call for more information.

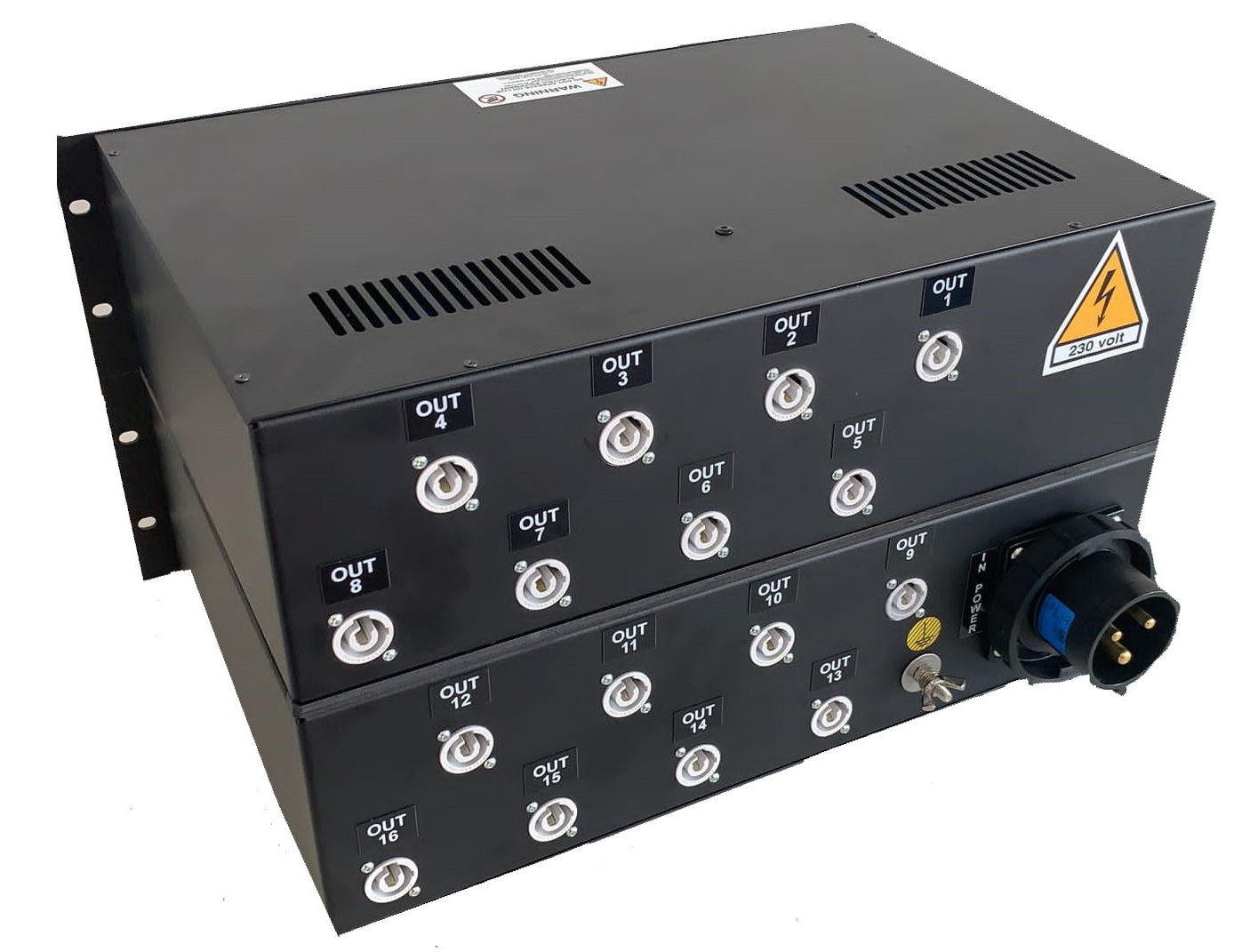

Image used for illustration purposes only.
