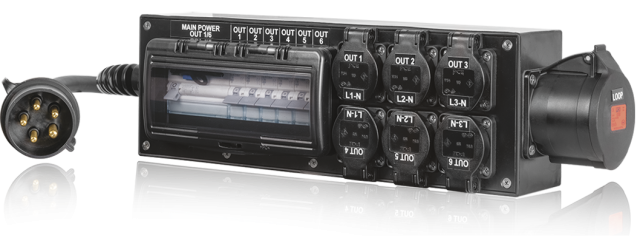

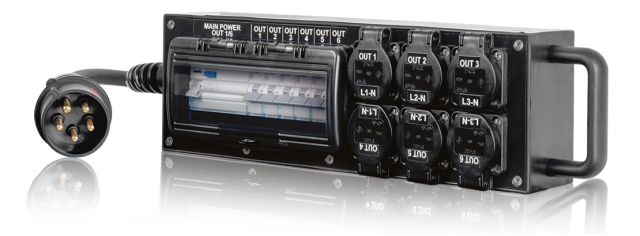

PowerBOX 32A 3pH+N+E 400V “BRICK Maxi Series 6 x Schuko Sockets + Loop
Our No: 12003
Manufacturer No: PBF32P6M1SRQC
£449.00
£538.80 (inc VAT)
PowerBOX 32A 3pH+N+E 400V “BRICK Maxi Series with 6 x Schuko Sockets
Incoming: 32A 5p 6h 400V IP44 black plug with 2m H07RN-F cable 5 cores 5G6mm²
Loop Through: 32A 5p 6h 400V IP44 black panel socket
Main Protection: 1 RCCB 40A 4p Idn 0,03A AC Inc 6.000A 4M
Outgoing Sockets:
6 x SCHUKO 16A 3p 230V IP54 black panel sockets IP54
Protection: 6 MCB C16 1pN 4.5kA 1M
Technical Data:
IEC 61439-1 & 2 / PSC, Un 400V 3PH+N+E, fn 50Hz, InA 32A, Icc 4,5kA, RDF 50/100, IP44
CE UKCA
Type:
Industrial Commando
Housing Material:
Rubber
Format:
Portable
Outgoing Sockets:
Schuko
Incoming Protection:
None
RCD
Outgoing Protection:
None
MCB
Additional Features:
Loop Through
Amperage:
32A
Pin Configuration:
3P+N+E (5 Pin)
Incoming Amperage:
32A
