Purchase options available:

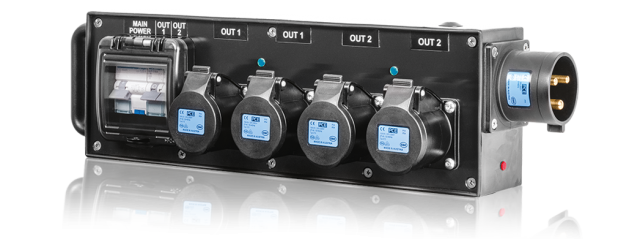

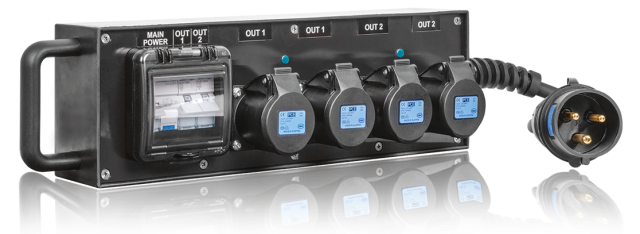

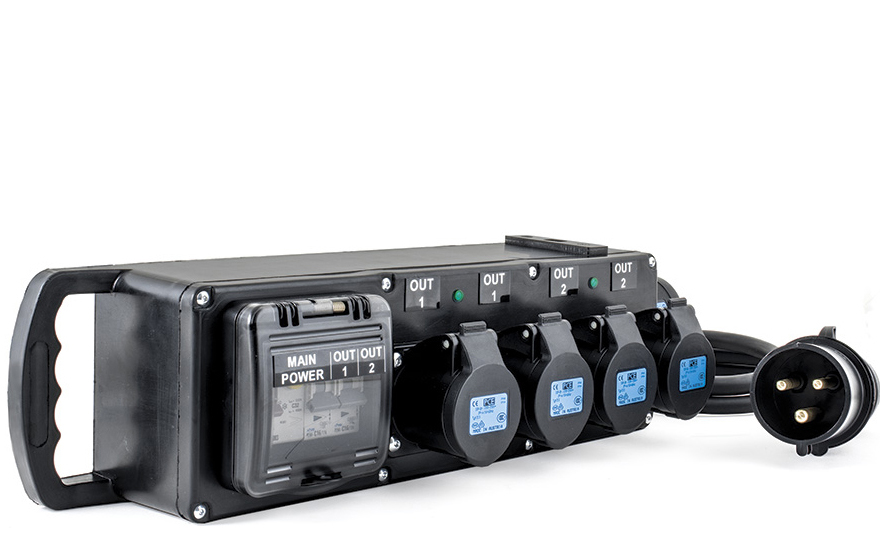

PowerBOX Rubber 32A 1pH+N+E 230V Brick PCE Midnight Series to 4 x 16A 1pH+N+E 4 x MCB
Our No: 8188
Manufacturer No: PBF32M4M1QC
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £235.60 |
£248.00
£297.60 (inc VAT)
- Box: enclosure in solid black rubber (GWT 960°C, IP54), dimensions W400 x D120 x H75mm.
- Incoming: 1 C-Form 32A 3p 6h 230V IP44 black plug with 2m H07RN-F cable 3 cores 6sqmm.
- Outgoing: 4 x C-Form 16A 3p 6h 230V IP44/54 black panel socket / 4 x MCB C16 1pN 4.5kA 1M.
- Installed accessories: 1 red led (IN), 4 green leds (OUT).
- Technical data: IEC 61439-1 & 2 / PSC, Ue / Un 230V 1PH+N+PE, fn 50Hz, InA 32A, Icc 4.500A, RDF 50/100, IP44, Electrical insulation class I (first).
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)
The CE marking is required for many products. It:
· shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
· is an indicator of a product’s compliance with EU legislation
· allows the free movement of products within the European market
Also available in other configurations, please call for more information.
Type:
Industrial Commando
Housing Material:
Rubber
Format:
Portable
Incoming Amperage:
32A
Number Of Phases (Incoming):
Single Phase (2P+E)
Outgoing Sockets:
16A (Single Phase 2P+E)
Incoming Protection:
None
Outgoing Protection:
MCB
Additional Features:
Supplied With Cable
