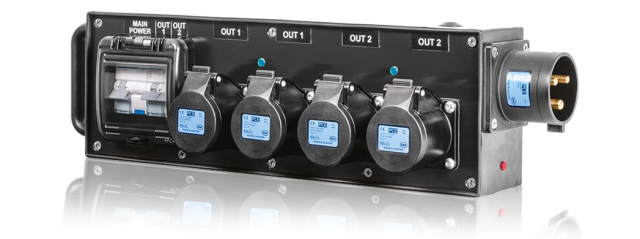

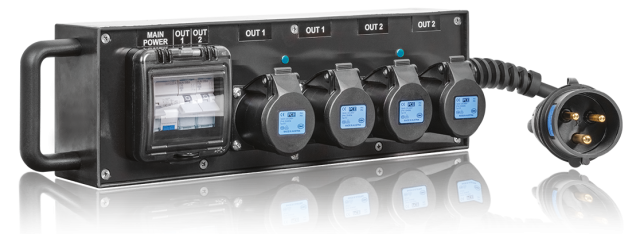

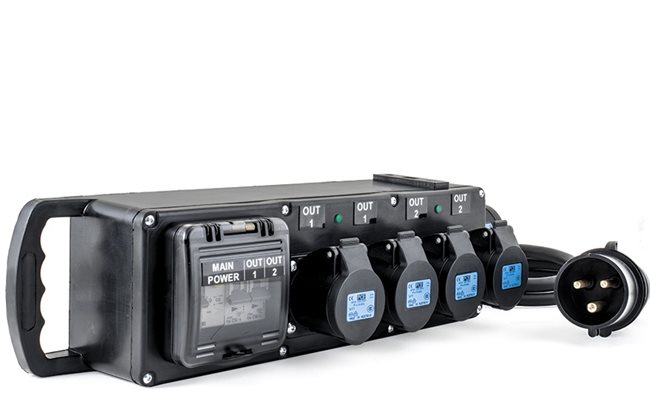

PowerBOX Rubber 32A 1pH+N+E 230V Brick PCE Midnight Series to 4 x 16A 1pH+N+E + 2 x MCB's

PowerBOX Rubber 32Amp 1pH+N+E 230V Brick PCE Midnight Series to 4 x 16A - 2 x MCB's
Example Video Only: We have produced this short video to show you the design and build quality, the specification in this video is different from the product on this page​

• Incoming:
• 32A 1pH+N+E 230V IP44 PCE Midnight Series plug (black colour) on a 1 Metre H07RN-F cable 3G6 mm²
• Protection: No protection on incoming
• 1 neon lamp red colour.
• Outgoing:
• 4 x 16A 1pH+N+E   6h 230V IP44 PCE Midnight Series sockets (black colour)
• Protection:
• 2 MCBs 16A 1pN-C 4.5kA ( OUT 1, 2 )
• 2 led green color(out)
• Hinged Window 2U IP54

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market



• Also available in other configurations; Single Phase or 3 Phase.
• Available with PCE Red and Blue Sockets if requested.
• Supplied as standard with PCE Midnight Series Plugs & Sockets
• Custom built to your chosen configuration in 7-10 days.
