PowerBOX Rubber 32A 1pH+N+E 230V Brick Series to 6 x PowerCON True with 1 x RCBO + 6 x MCB

Our No: 10135
Manufacturer No: PBF32M6PTQ
Stock Available: 3
Next Day Delivery

Volume Discounts

Units % Price per unit
2 7.5% £415.33
£449.00
£538.80 (inc VAT)

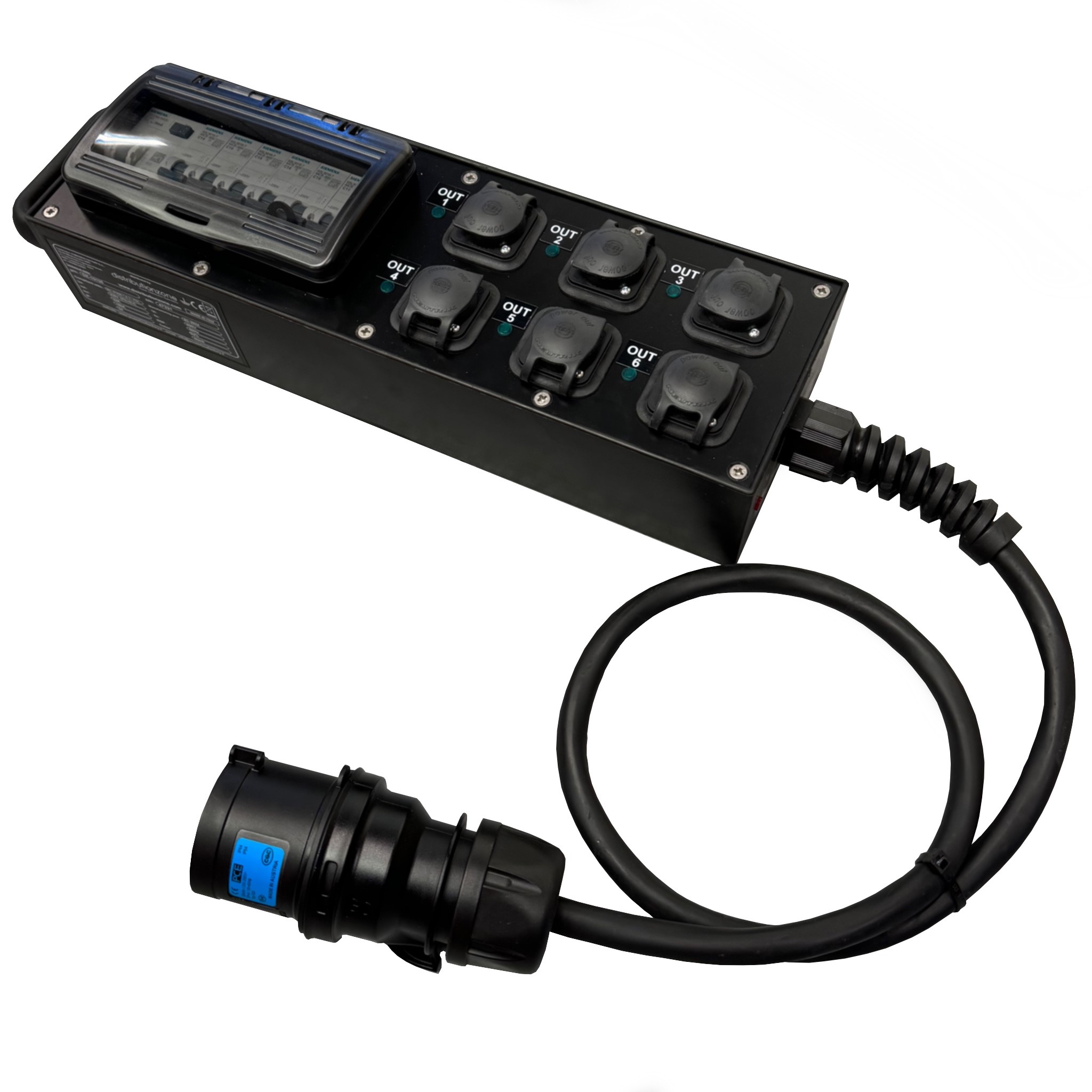

PowerBOX Rubber 32A 1pH+N+E 230V Brick Series to 6 x PowerCON True with 1 x RCBO Type A + 6 x MCB

Box: enclosure in solid black rubber (GWT 960 °C, IP54), handle for transport 1 hinged window IP54,
Incoming: 1 C-Form 32A 3p 6h 230V IP44 on a 1 Metre H07RN-F 6mm 3Core Cable

Main OUT: 1 x RCBO C32 1pN 4.500A Idn 0,03A type A 2M Din
Outgoing Sockets: 6 x powerCON TRUe1 TOP 16A 3p 230V IP65 appliance outlet connector (NAC3FPX-TOP) with sealing cover (SCNAC-FPX)
Protection: 6 x MCB C16 1pN 4.500A 1M Din C
Installed Accessories: 1 red LED (IN), 6 green LEDs (OUT), 1 earth stud.
Other Notes: Box dimensions W230 x D230 x H270mm, weight 6,00kg.
Technical Data: IEC 61439-1 & 2 / PSC, Ue 230V 1PH+N+PE, fn 50Hz, InA 32A, Icc 4.500A, RDF 33/100, IP54, Electrical insulation class I (first).

Type:

PowerCON

Housing Material:

Rubber

Format:

Portable

Incoming Amperage:

32A

Number Of Phases (Incoming):

Single Phase (2P+E)

Incoming Protection:

RCBO

Outgoing Protection:

MCB

Additional Features:

Supplied With Cable

Outgoing Sockets:

PowerCON True

Brand:

PowerBOX
