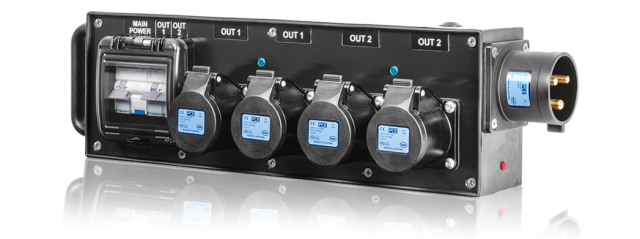

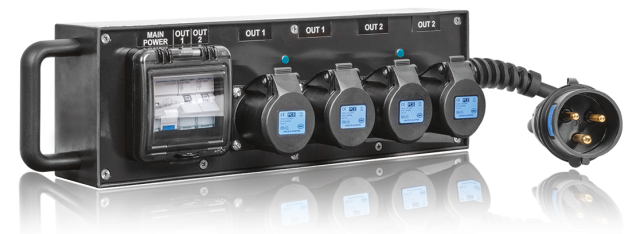

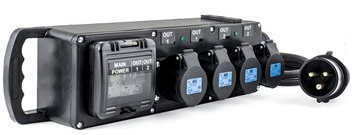

PowerBOX Rubber 32Amp 1pH+N+E 230V Brick Maxi PCE Midnight Series to 4 x 16A 1pH+N+E 4 x RCBO's

PowerBOX Rubber 32Amp 1pH+N+E  230V Brick Maxi PCE Midnight Series to 4 x 16A 1pH+N+E with 4 x RCBO's

Example Video Only: We have produced this short video to show you the design and build quality, the specification in this video is different from the product on this page​

Incoming:

• 32amp 1pH+N+E 230V 6h IP44 plug black color with 1m. cable H07RN-F 3G6mm²,
• Incoming Protection:
• None
• 1 neon lamp red colour.

Outgoing:

• 4 x 16A 1pH+N+E  6h 230V IP44 PCE Midnight Series Panel Sockets (black colour)
• Outgoing Protection:
• 4 x RCBOs 16Amp 1pN-C 4.5kA ( OUT 1, 2,3,4 ) Type A
• 3 x led green color(out)
• dimensions W400 x D120 x H75mm (excluding installed components).

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)
Also available in other configurations, please call for more information.

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market



• Also available in other configurations; Single Phase or 3 Phase.
• Available with PCE Red and Blue Sockets if requested.
• Supplied as standard with PCE Midnight Series Plugs & Sockets
• Custom built to your chosen configuration in 7-10 days.
