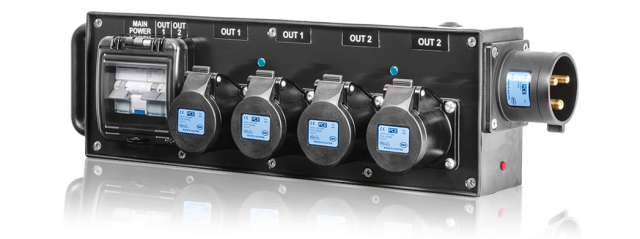

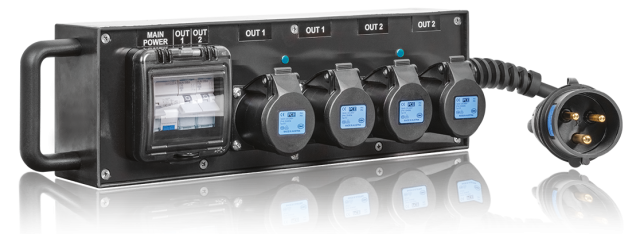

PowerBOX Rubber 32Amp 1pH+N+E 230V Brick PCE Midnight Series to 3 x 16A 1pH+N+E 3 x RCBO's

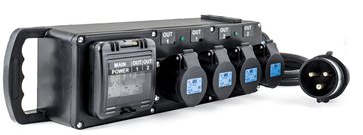

PowerBOX 32Amp 1pH+N+E  230V “Rubber BRICK” series Midnight Series with 1m. cable H07RN-F 3G6mm

Incoming:

• 32amp 1pH+N+E  230V 6h IP44 plug black color with 1m. cable H07RN-F 3G6mm²,

Incoming Protection:

• None
• 1 neon lamp red colour.

Outgoing:

• 3 x 16A 1pH+N+E   6h 230V IP44 PCE Midnight Series Panel Sockets (black colour)

Outgoing Protection:

• 3 x RCBOs 16Amp 1pN-C 4.5kA ( OUT 1, 2,3 ) Type A
• 3 x led green color(out)

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)
Also available in other configurations, please call for more information.

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market



• Also available in other configurations; Single Phase or 3 Phase.
• Available with PCE Red and Blue Sockets if requested.
• Supplied as standard with PCE Midnight Series Plugs & Sockets
• Custom built to your chosen configuration in 7-10 days.
