PowerBOX Rubber 32Amp 3pH+N+E 400V Turtle Box with PCE Midnight to 3 x 32A 1pH+N+E + 3 x 16A 6 x RCBO's Type A

PowerBOX Rubber 32Amp 3pH+N+E 400V Turtle Series with PCE Midnight Series Sockets to 3 x 32A 1pH+N+E + 3 x 16A 6 x RCBO's

Example Video Only: The specification in this video is different from the product on this page​

Incoming:
32A 400V 3P+N+E IP44 PCE APPLIANCE INLET Midnight Series (Cable sold separately)
No protection on incoming
Outgoing:

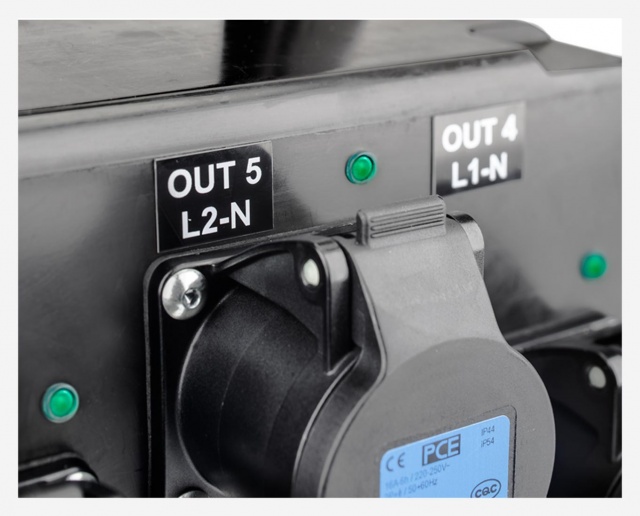

3 x 32A 230V 1pH+N+E IP44 PCE Commando CEE17 Midnight Series
3 x 16A 230V 1pH+N+E IP44 PCE Commando CEE17 Midnight Series
Protection:
3 x RCBO 16A 1pN 4.5kA Idn 0,03A Type A  1M Din Siemens
3 x RCBO C32 1pN 4.5kA Idn 0,03A Type A  2M Din Siemens

Technical data:

IEC 61439-1 & 2 / PSC, Ue : 400V 3pH+N+PE, fn : 50Hz, InA : 32A, Icc : 6.000A (IEC 60947-2), RDF : 66/100, IP : 44, Electrical insulation class : I (first).

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·is an indicator of a product’s compliance with EU legislation
·allows the free movement of products within the European market

Made in Italy
