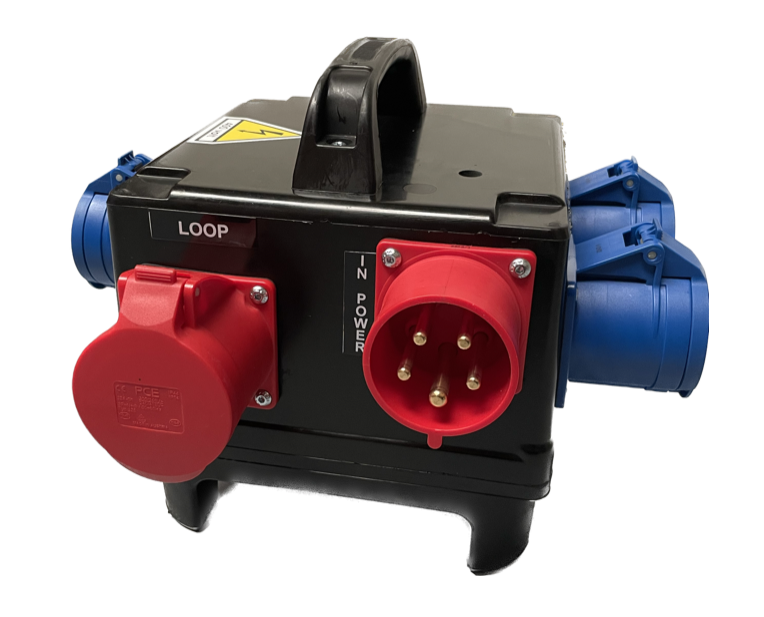

PowerBOX Rubber 32Amp 3pH+N+E 400V Turtle PCE Red/Blue to 3 x 32A 1pH+N+E 3 x RCBO's

PowerBOX Rubber 32Amp 3pH+N+E 400V Turtle PCE Red/Blue to 3 x 32A 1pH+N+E 3 x RCBO's

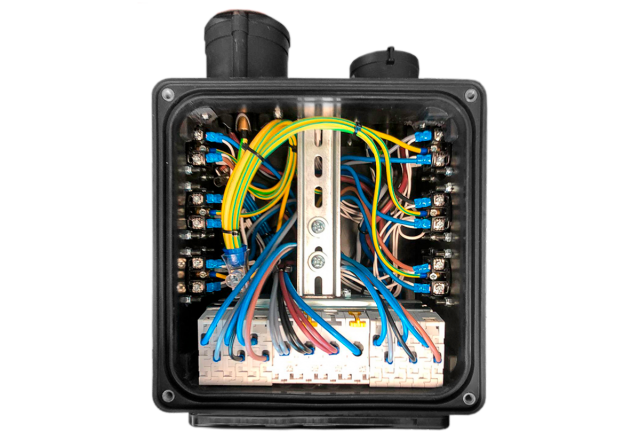

Example Video Only: We have produced this short video to show you the design and build quality, the specification in this video is different from the product on this page​

Input

• 32Amp 3pH+N+E 400V Appliance Inlet (Cable sold separately)
• Through Socket : 32Amp 3pH+N+E IP44 Panel Socket
• No protection on incoming

Output

• 3 x 32A 1pH+N+E 230V IP44 PCE Commando CEE17 Sockets
• Protection:
• 3 x RCBO 32A 1pN-C 4.500A Idn 0,03A type AC 2M DIN

Technical data : IEC 61439-1 & 2 / PSC, Ue : 400V 3pH+N+PE, fn : 50Hz, InA : 32A, Icc : 6.000A (IEC 60947-2), RDF : 66/100, IP : 44, Electrical insulation class : I (first).

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market
