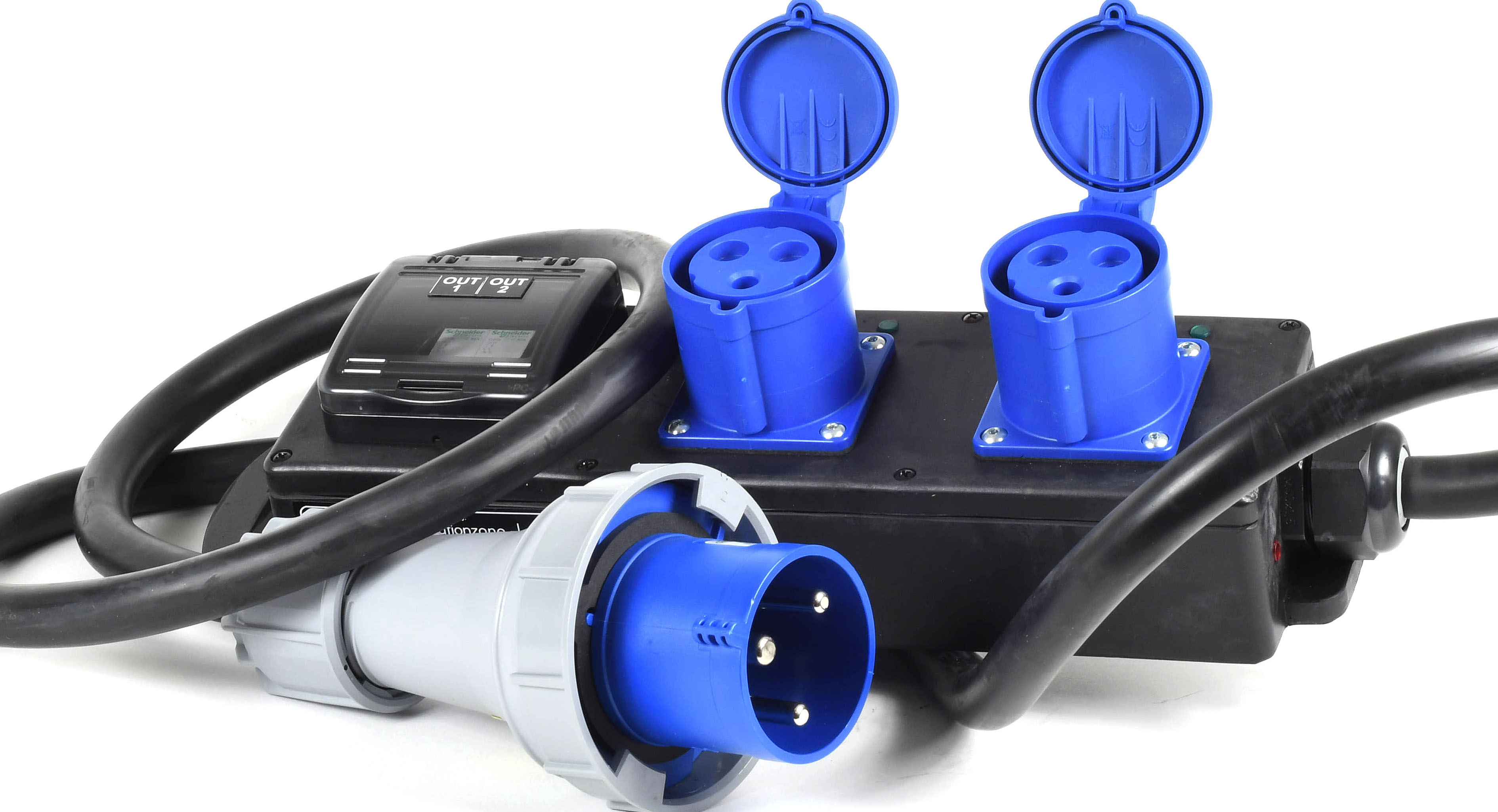

PowerBOX Rubber 63Amp 1pH+N+E 230V Turtle PCE Standard Blue to 3 x 32A 230V 3 x RCBO 's

PowerBOX 63A 1PH+N+E 230V TURTLE, p/n (PBF63M3M2T-1A) – with Main MCB.
box: enclosure in black rubber (GWT 960°C, IP65), transportable, stackable, dimensions W230 x D230 x H270mm.
Incoming: 1 C-Form 63A 3p 6h 230V IP67 black flanged plug.
Main OUT: 1 MCB C63 2p 6.000/10kA 2M Din.
Outgoing: 3 x C-Form 32A 3p 6h 230V IP44/54 black panel sockets
Protection: 3 x RCBO C32 1pN 4.500/6kA Idn 0,03A Type A 2M Din.
Installed accessories: 1 red lamp (IN), 3 green lamps (OUT), 1 hinged window 8M Din IP54.
Technical data: IEC 61439-1 & 2 / PSC, Un 230V 1PH+N+E, fn 50Hz, InA 63A, Icc 6.000A, RDF 33/100, IP44, Electrical insulation class I.

The images shown are for illustration purposes only and may not be an exact representation of the product.

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market
