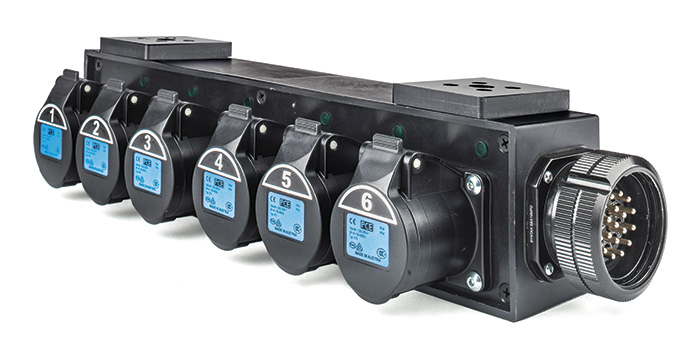

PowerBOX SOCAPEX BRICK With 6 x PCE Midnight Series 16A Panel Sockets M10 Fittings

SOCAPEX break out box with 6 PCE Panel-Mount Sockets 16A 2P+E 230V With Loop Through. Rubber power distribution box, SYNTAX SSX 19 Pin (standard Socapex)

Example Video Only: We have produced this short video to show you the design and build quality, the specification in this video is different from the product on this page​

• Ideal for the stage and events environment
• W400 x D120 x H75mm (excluding installed components). New Box 2023

This is a very robust unit, ideal for envirionments where the power distribution is on show, sleek and stylish, designed to impress.


Input

• SYNTAX SSX 19 Pin (standard Socapex)

Output

• 6 x 16 Amp 1pH+N+E  230V PCE Sockets [ Black ]
• 6 x Red LED Indicators
• SOCA loop Optional
• 2 x M10 threaded fittings ( Clamp not Supplied )
• Clamp-ready version
• Also available in PowerCON Grey or PowerCON True versions: Call

 SYNTAX® SSX 19 pin (standard Socapex) with ring for locking, contacts with silver finish. SYNTAX® PVC cable 19 x 2.5 mm² (sheath special PVC compound / rubber, black, flame retardant in accordance with CEI 20-22 / III)

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market


Made in Italy.
