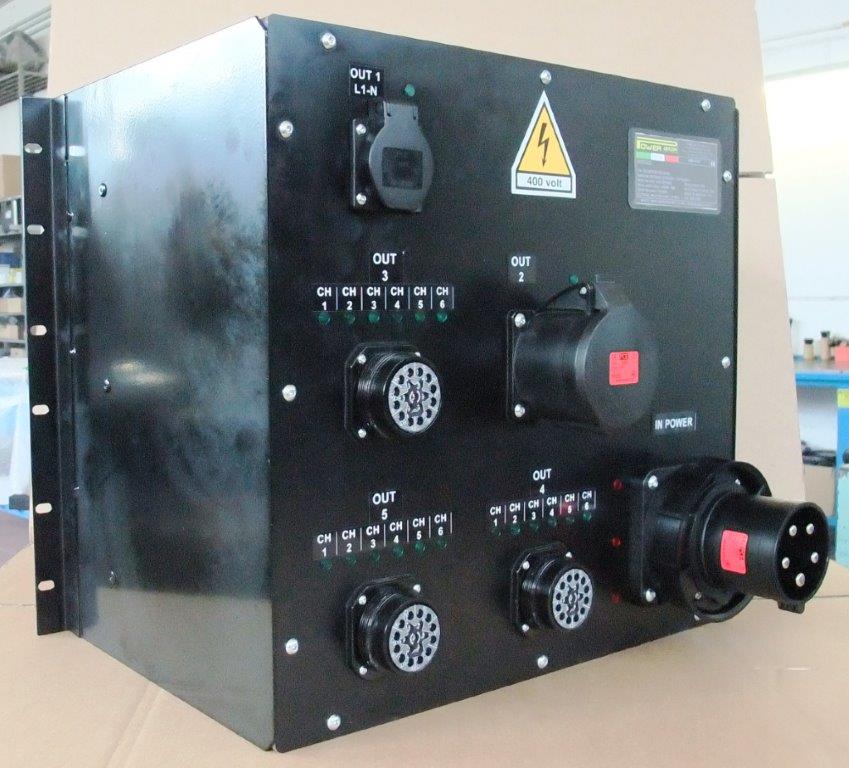

PowerBOX 63amp 3PH+N+E 400/230V 19” RACK BOX HE6U
Box: 1 rack 19” mountable box (made of steel, painted black),
height 6U, depth 300mm (excluding installed components).
Incoming: 1 C-Form 63amp 5p 6h 400V IP67 Black Appliance Inlet
Main OUT: 1 MCB C63 4p 6.000A 4M Din.
Outgoing:
2 x powerCON TRUE1 16amp 3p 230V IP65 black appliance outlet with cap
4 x SYNTAX SSX 19-pin IP67 (soca) female panel connector with cap /
Protection:
2 x RCBO C16 1pN 4.500/5kA Idn 0,03A Type A1M Din.
24 x RCBO C16 1pN 4.500/5kA Idn 0,03A Type A1M Din.
Installed accessories:
1 three-phase led 1M Din (IN, 1 fuse switch 3pN 10,3x38mm 3M Din),
1 earth stud.
Technical data: IEC 61439-1 & 2 / PSC, Un 400V 3PH+N+E, fn 50Hz, InA 63amp, Icc 6.000A, RDF 40/100, IP2X,
Electrical insulation class I (first).
Components arrangement:
Flanged plug (IN) and OUT connectors installed on the rear box.
Switches & Switchgear installed on the front box.
