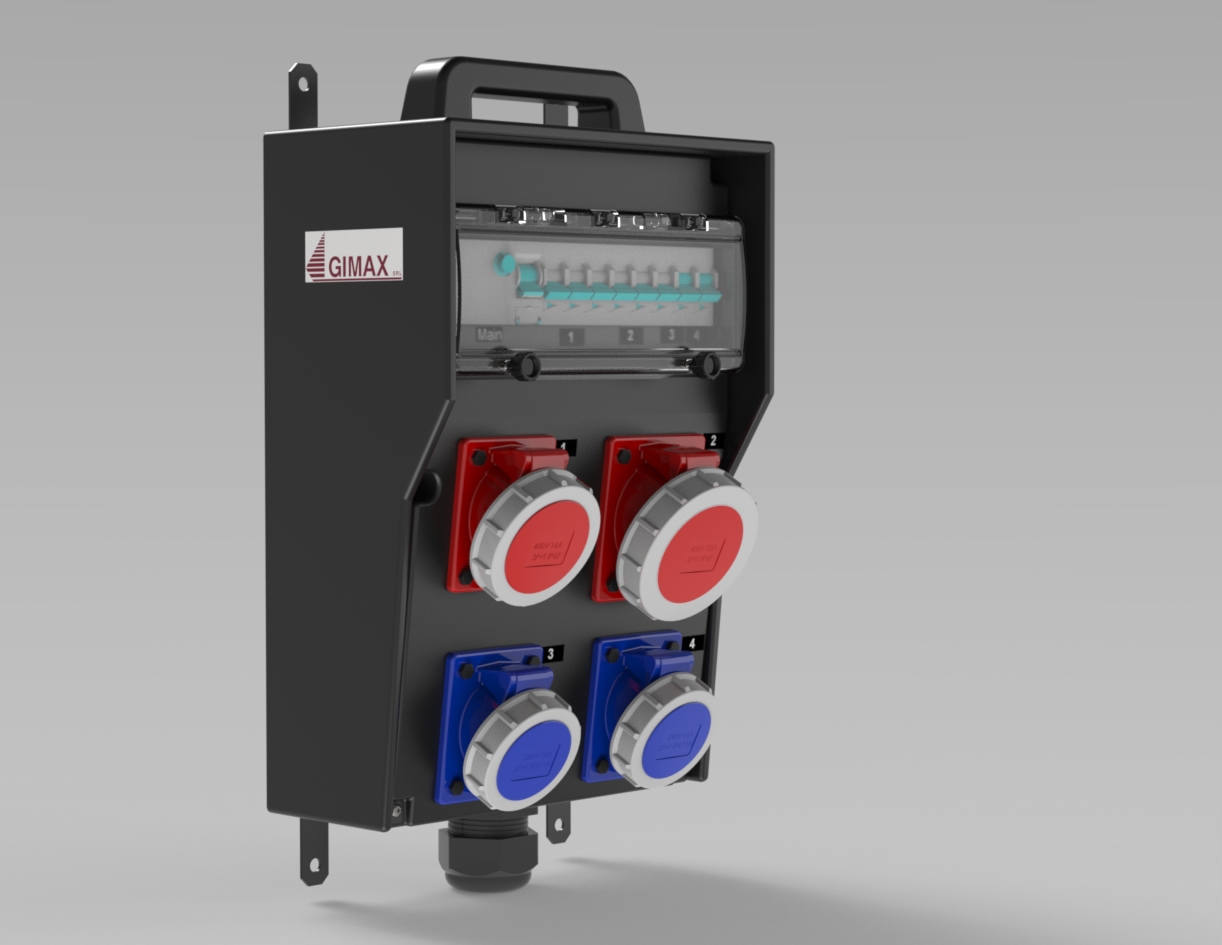

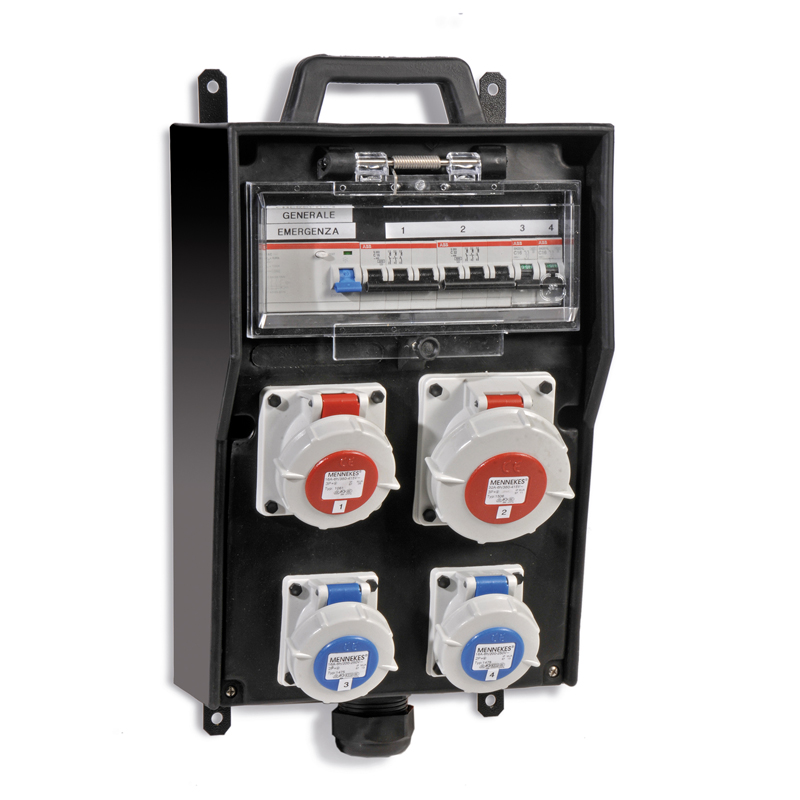

32Amp 3P+N+E 400V Wall mounting Series DELTA butyl rubber IP65

Wall mounting rubber distribution box 32Amp 3PH+N+E 400V. Series Delta

Box: enclosure in black rubber (GWT 960°C, IP65), 1 hinged window IP54.

Incoming: n. 1 cable gland PG36 (bottom of the enclosure)

• Outgoing:
• 1 x 16A 400V 3P+E IP67 PCE CEE P17
• 1 x 32A 400V 3P+E IP67 PCE CEE P17
• 2 x 16A 230V 1pH+N+E IP67 PCE CEE P17
  Protection:
  1 x RCD 4P 0.03A 40A
• 1 x MCB 16A 3p 6kA
• 1 x MCB 32A 3p 6kA
• 2 x MCB 16A 1p+N 6kA
• Available in many combinations, please call for more info.

Notes: box dimensions 260 x150 x 380 (h) mm

Technical data: IEC 61439-1 & 2 CE marking. Electrical insulation class II (second).

 Features

• Framework double insulated in hard butyl rubber, protection degree IP65.
• Brackets for wall-attachment in steel, painted and oven baked with polyester powder specifically for external use.
• Upper-handle in rubber to facilitate transport.
• Covers in unbreakable transparent polycarbonate with spring closure for modular switches.
• Access with cable glands IP68, internal modular terminal blocks.
• Distribution with sockets CEE P17 IP67.
• Manufactured according the regulations EN 61439-1 (CEI 17-113); EN61439-4 (CEI 17-117)
