Palazzoli Lewden Metal Weatherproof Distribution Unit - Custom Built to Order

Our No: 1886
Manufacturer No: DZ- M06
Stock Available: Out of Stock
Call

Call us for pricing and ordering

0118 932 6990

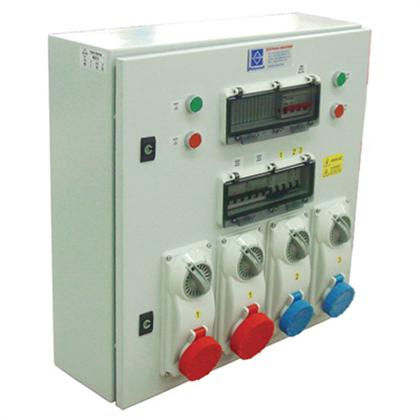

Palazzoli Lewden Metal Weatherproof Distribution Unit - Custom Built to Order

Heavy duty mild steel wall mounting enclosure with polyester powder coat finish to RAL7035

• Single lockable access door equipped with 2x double bar locks

• Smooth un-drilled walls. Bottom entry detachable gland plate

• IP65 ingress protection rating

• 1x 100A 4 pole mains isolation switch

• 1x 16A 400VAC 3P+N+E IP66/67 & 1x 16A 400VAC 3P+E IP66/67 switched interlocked socket

outlet, protected by one overall 16A 3 pole type C MCB to BS EN60898

• 2x 16A 230VAC 1P+N+E IP66/67 switched interlocked socket outlets, each protected individually

by a 16A 1 pole type C MCB to BS EN60898

• Socket outlets in accordance with IEC60309, IEC60529, IEC60947-3

• 2x Direct on line motor circuits for hard wiring, complete with start/stop pushbuttons.

Suitable for motor ratings: Circuit A = 4-6A / Circuit B = 17-24A

• Circuit protection devices located behind transparent polycarbonate hinged access windows

• Overall dimensions (not including plug) 600h x 600wx 273d (mm)



These units are built to order to your individual specification. Available in a number of configurations, please call or email for more information.



Brand:

Palazzoli

Type:

Industrial Commando

Housing Material:

Metal

Format:

Wall Mounted Distribution Panels

Incoming Amperage:

125A

Number Of Phases (Incoming):

Three Phase (3P+N+E)

Outgoing Sockets:

16A (Single Phase 2P+E)
32A (Single Phase 2P+E)

Incoming Protection:

MCB

Outgoing Protection:

MCB
