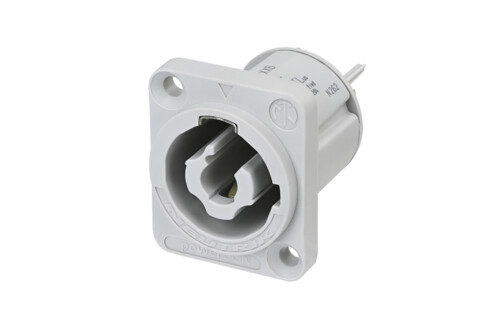

PowerCON Mains Output 3 Pin 20A Chassis Neutrik NAC3MPXXB Grey
Our No: 3085
Manufacturer No: NAC3MPB-1
| Units | % | Price per unit |
|---|---|---|
| 5 | 5% | £2.99 |
£3.15
£3.78 (inc VAT)
Chassis connector, power-out, 3/16'' flat tab terminals, grey
Available also without insulation divider ie needs soldering, see example below.
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
NAC3FCA and NAC3MPA are used for power in to a unit
NAC3FCB and NAC3MPB are used for power out of a unit
Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating. Branded with unique hologram - guarantees genuine and authentic Neutrik product.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Features & Benefits
- Locking 20 A / 250 V ac appliance coupler
- 3 contacts for line, neutral and premating safety ground
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Ergonomic design
- User friendly latch design for easy handling
- UL, cUL recognized components
VDE certified
SEV approved - Branded with unique hologram - guarantees genuine and authentic Neutrik product
