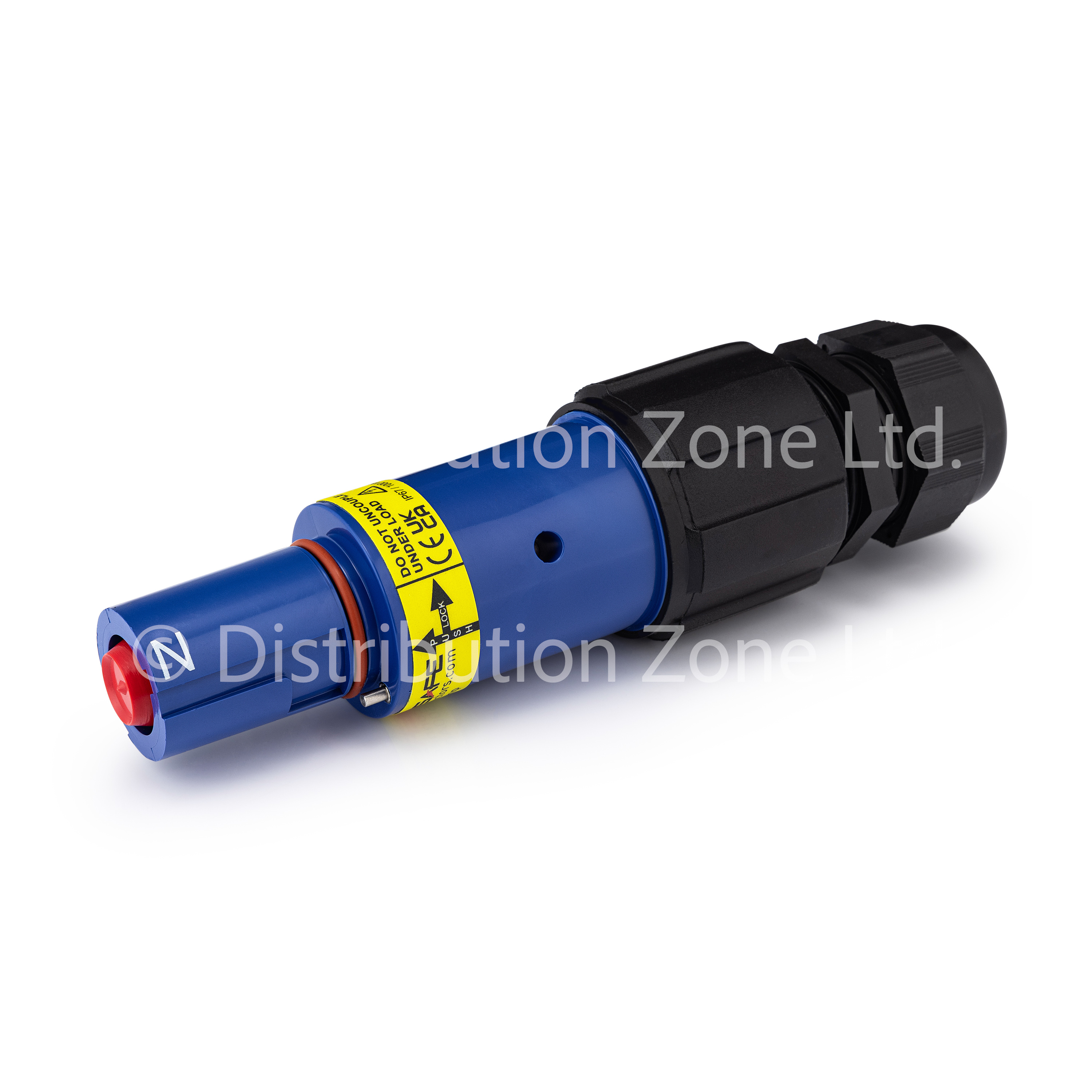

Powersafe Powerlock Connector 800A Line Drain Neutral Blue 300mm2 M40B

The 800A Line Drain Neutral Blue 300mm2 M40B Connector is designed to be used with 300mm2 cable only and terminates using a crimp contact.

Please note that a crimping tool and the appropriate die are required in order to terminate your cables. For more information please see the assembly guide.

About The Connectors
All Powersafe’s heavy duty industrial plugs are designed, assembled and manufactured in the UK with materials sourced from Europe and America. The conductive metals are always 99.9% pure materials and deliver the highest quality in the industry. All suppliers are ISO accredited businesses and products are UL, VDE and CE certified. Powersafe Powerlock connector sets come with a hand grip as standard to assure protection of the insulator and improve usability.

All source and drain connectors are fully compatible with Litton VEAM, T4 400 amp and T6 660 amp powerlock, ITT Cannon and other manufacturers.

Safety & Performance Features
• Mechanically keyed to eliminate the possibility of cross mating
• Secondary locking to prevent unintentional uncoupling under load
• Finger-proof protection against electric shock IP2X
• Waterproof & Dustproof to IP67 rated
• Colour coded for easy identification
• Innovative contact band allows higher rating (400A > 500A, 660A > 800A)
• Contact band cannot come out
• High impact insulator (no glass used & flame retardant)
• Field installation no special tools required
• Integral cable strain relief
• Daisy chain capability facilitates flexible stock cable lengths
• Large cable range 25mm² – 300mm²
