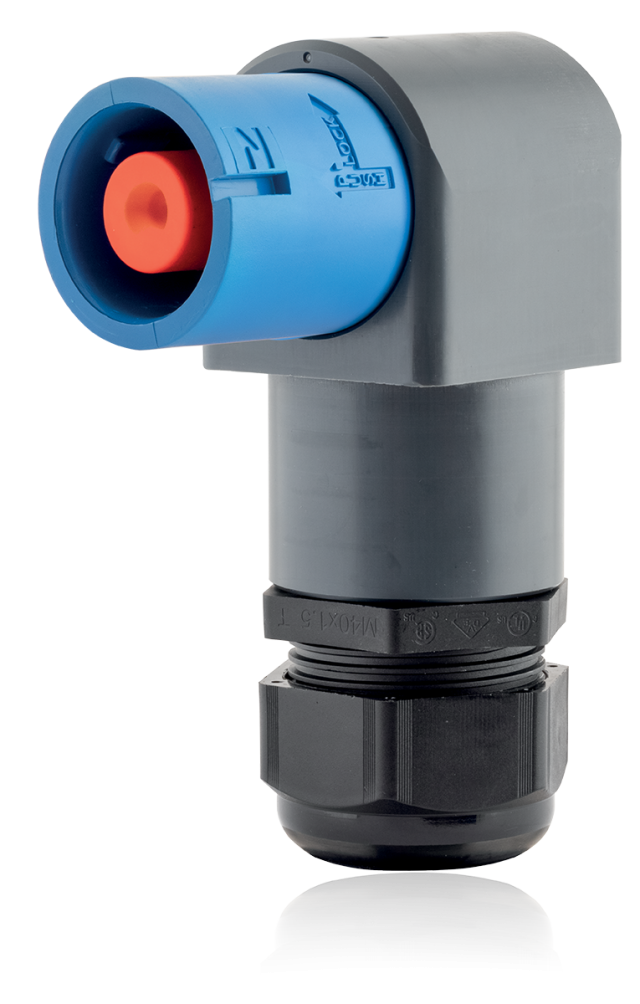

PowerSyntax 90° Angled Cable Connectors 480A Line Source Neutral Blue
Our No: 12162
Manufacturer No: SPX4LSNBLM1090MP
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £53.19 |
£55.99
£67.19 (inc VAT)
PowerSyntax 90° Angled Cable Connectors 480A Line Source Neutral Blue
Vertical PowerSyntax: The easiest way to save space
A new addition to the PowerSyntax family, a 90 degrees angled single pole cable connector, designed and built with great attention to every detail, like we always do. Source and drain versions available, for high currents up to 480amp or 750amp.
Bending the rules of connection
New 90 degree angled PowerSyntax cable connector

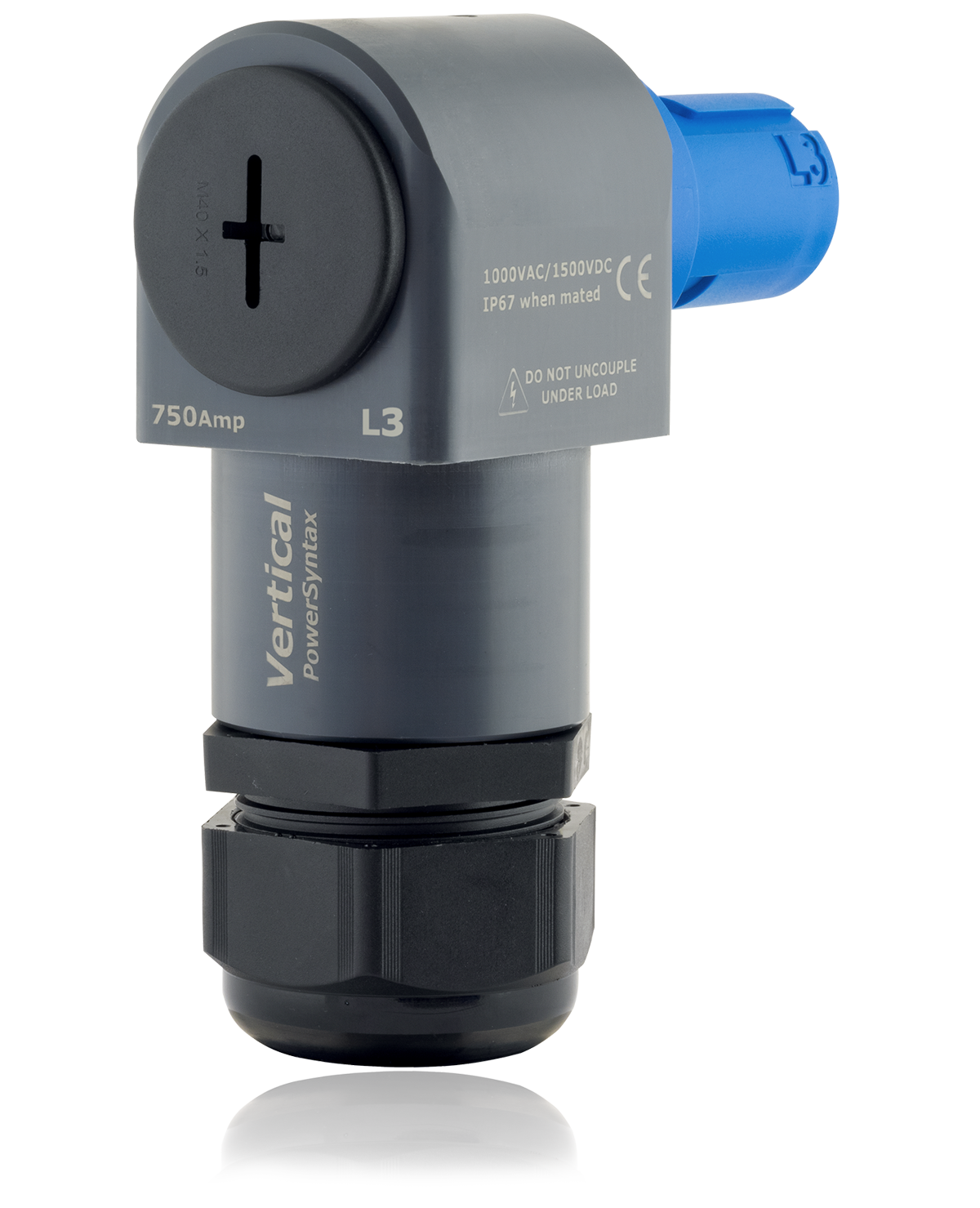

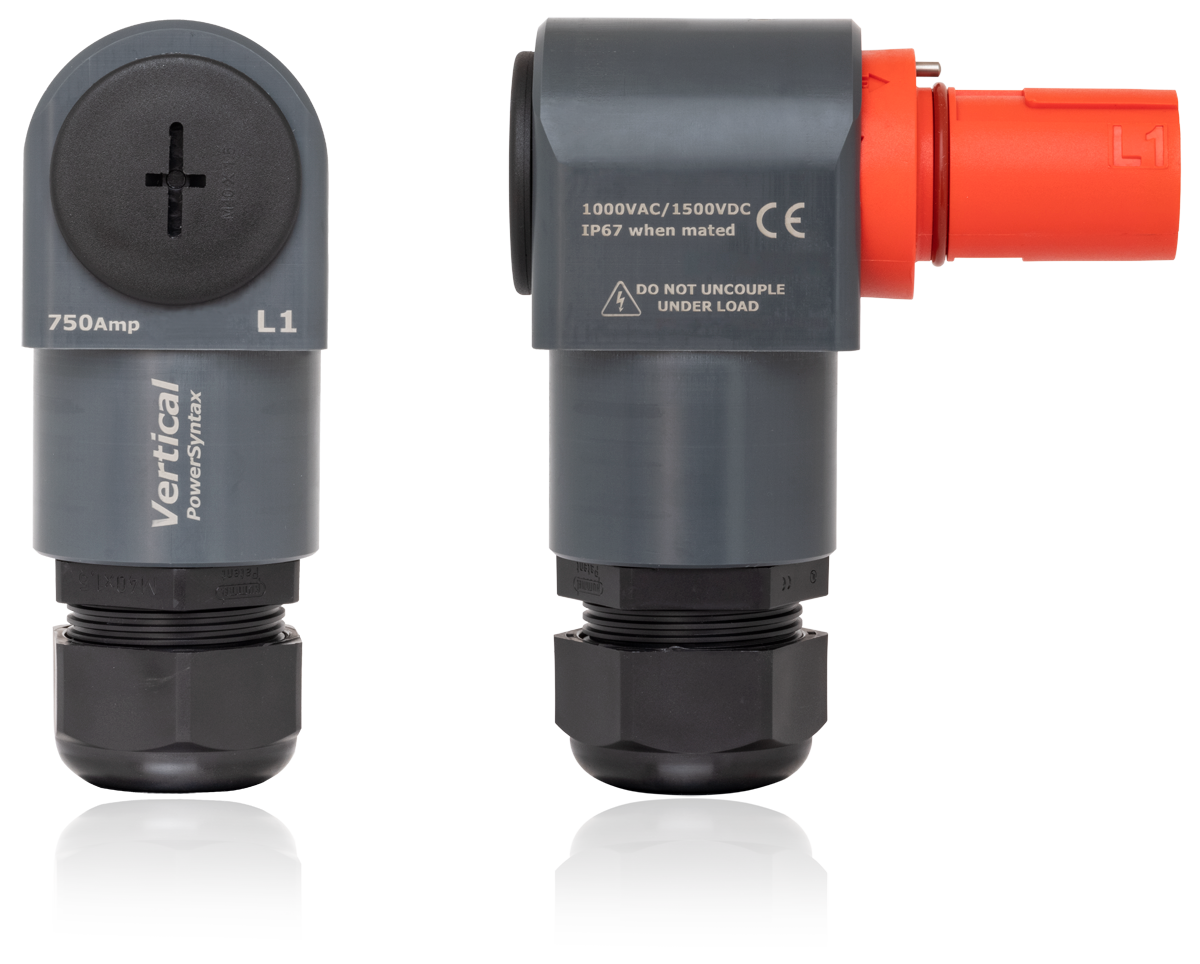

A new way to imagine single pole cable connectors, the newVertical PowerSyntax is the ideal solution when space saving is key. Vertical is a right-angled cable connector, fitted with a M10 threaded hole contact for currents up to 480 or 750 amp. IP2X protection through patented drain contact lock.Secondary locking safety system. M40 cable glands, available with 3 different clamping range options. Permanent phase identification and safety information markings engraved on connector’s body. No stickers applied. Drain and Source versions available.

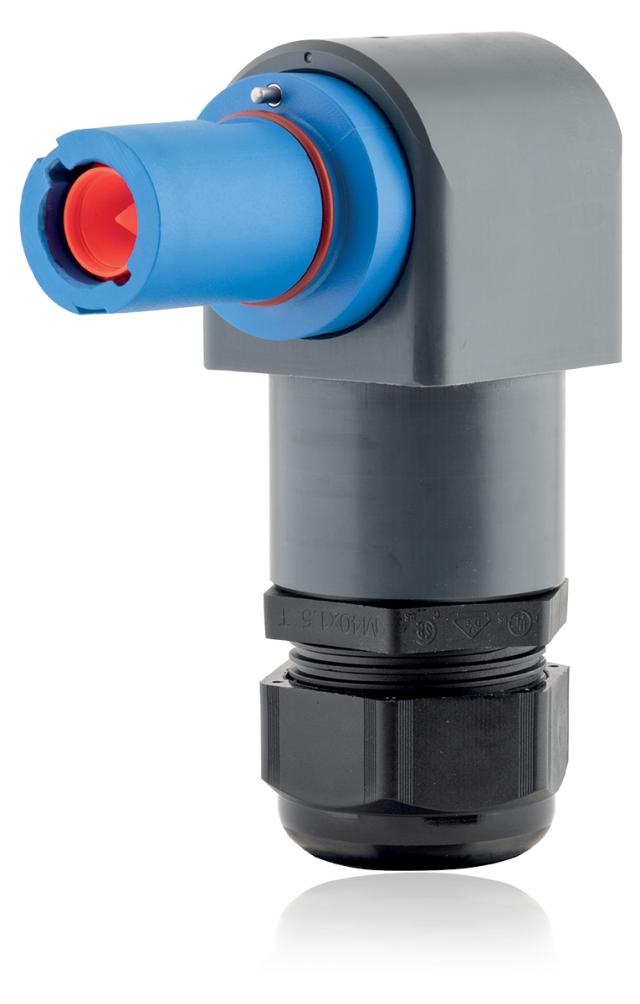

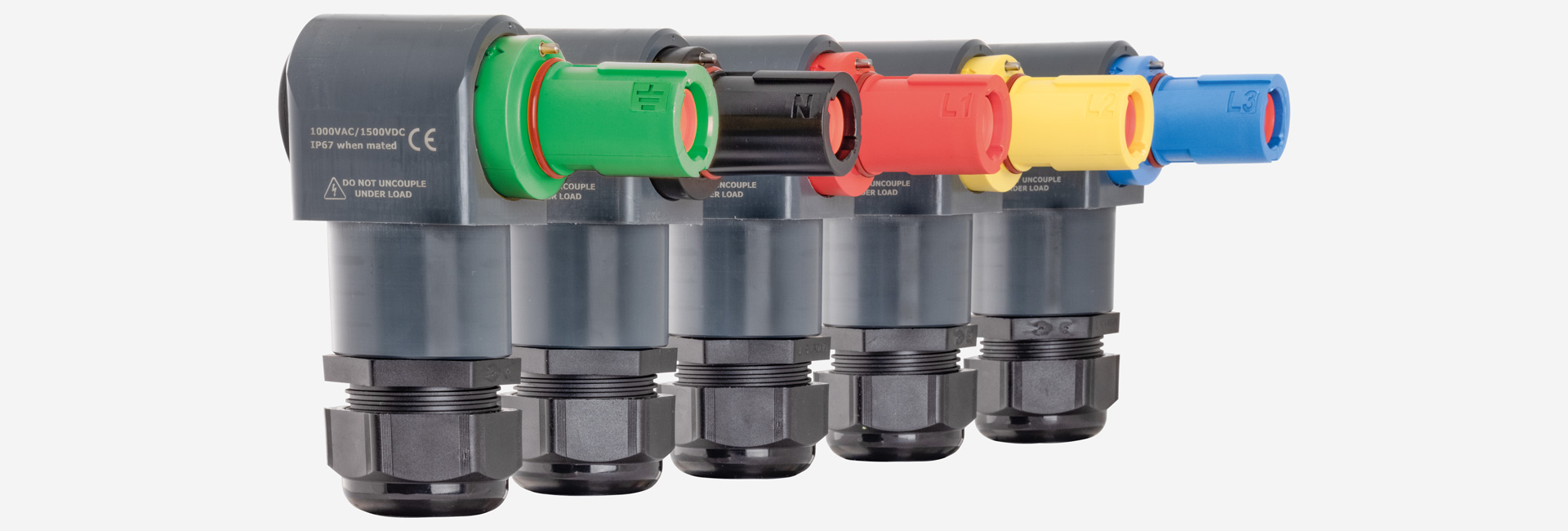

Our Vertical PowerSyntax, the right-angled single pole cable connector, is available in source and drain versions and in all standard regional pole/color combinations. It is designed to carry high currents up to 480amp or 750amp.
Lug compatibility chart Choose the right lug terminal
| Lug Type | B | Cable section (flex) | ∅i | d ∅ screw |
|---|---|---|---|---|
| C | 19,0 | 95 - 120 mm2 | 15,2 | 10 mm |
| C | 19,0 | 120 - 150 mm2 | 16,7 | 10 mm |
| C | 24,5 | 150 - 185 mm2 | 19,2 | 10 mm |
| C | 31,0 | 240 mm2 | 21,1 | 10 mm |
Amperage:
500A
Colour Group:
All
Commodity Code:
85366990
Mounting Style:
Angled
Brand:
PowerSyntax
Line:
Neutral
Gender:
Source
