PowerSyntax Basic Panel Drain Angled M12 threaded Hole SPX 45° 480A Earth Green T5
Our No: 8430
Manufacturer No: SPD0001
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £30.99 |
| 5 | 7.5% | £30.17 |
£32.62
£39.14 (inc VAT)

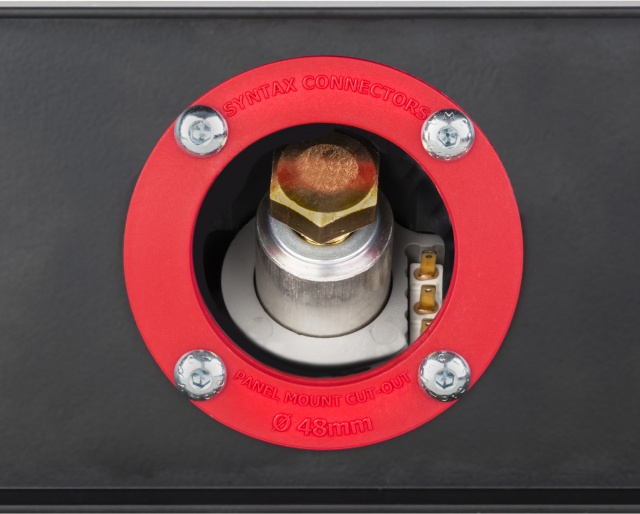

PowerSyntax Basic Panel Drain Angled M12 threaded Hole SPX 45° 480A Earth Green T5
Give your connections a whole new angle
New 45 degree angled PowerSyntax panel connector
Our PowerSyntax 45 is designed to provide new options for your operations and the way you manage single pole, Powerlock compatible, panel-mount connections. Thanks to its versatile design it is an ideal combo with our patented Chain Pilot models and with our Basic panel connectors as a further option. PowerSyntax 45 is available for high currents up to 480amp or 750amp, Source and Drain versions.
PowerSyntax 45 Drain and Source | 480 or 750 amp.
Extra grip on plastic materials thanks to A2 stainless steel screws with pan heads. Knurled brass threaded inserts providing secure fixing to panels. IP2X protection through patented drain contact lock. Secondary locking safety system. Permanent phase identification and safety information markings engraved on connector’s body. No stickers applied.

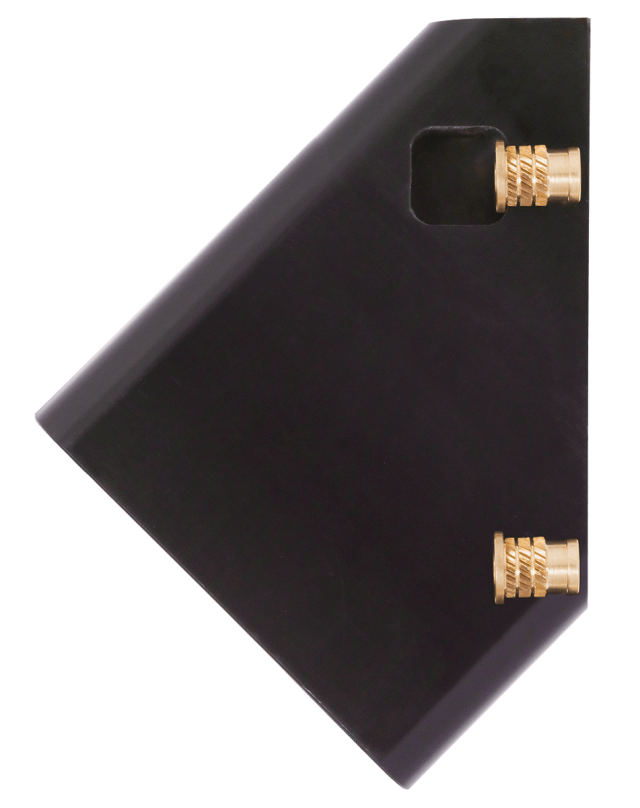

Knurled brass threaded inserts providing secure fixing to panels
The PowerSyntax 45 is attached to panels through special brass threaded inserts. Their knurled bands on the outside will grip the plastic of the base element as the screws are tightened into the insert.
Brand:
Powersafe
Type:
Panel Mount Drain Connectors
Amperage:
500A
Gender:
Drain
Line:
Earth
Colour Group:
All
Termination (Cable):
T5 Threaded Post Termination
Powerlock Colour:
Green
Commodity Code:
85366990
