PowerSyntax Basic Panel Source Angled M12 threaded Hole SPX 45° 480A L2 Black T5

PowerSyntax Basic Panel Source Angled M12 threaded Hole SPX 45° 480A  L2 Black T5

Give your connections a whole new angle

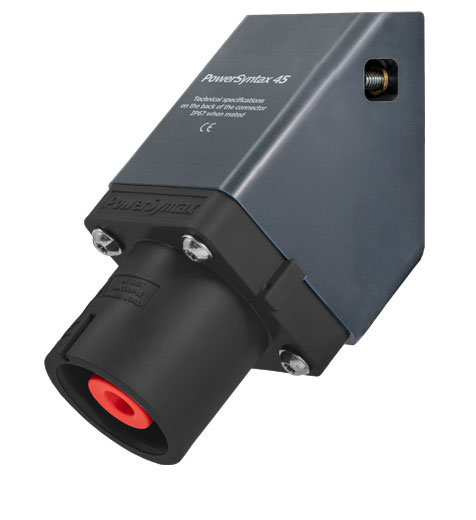

New 45 degree angled PowerSyntax panel connector

Our PowerSyntax 45 is designed to provide new options for your operations and the way you manage single pole, Powerlock compatible, panel-mount connections. Thanks to its versatile design it is an ideal combo with our patented Chain Pilot models and with our Basic panel connectors as a further option. PowerSyntax 45 is available for high currents up to 480amp or 750amp, Source and Drain versions.

PowerSyntax 45 Drain and Source | 480 or 750 amp.

Extra grip on plastic materials thanks to A2 stainless steel screws with pan heads. Knurled brass threaded inserts providing secure fixing to panels. IP2X protection through patented drain contact lock. Secondary locking safety system. Permanent phase identification and safety information markings engraved on connector’s body. No stickers applied.

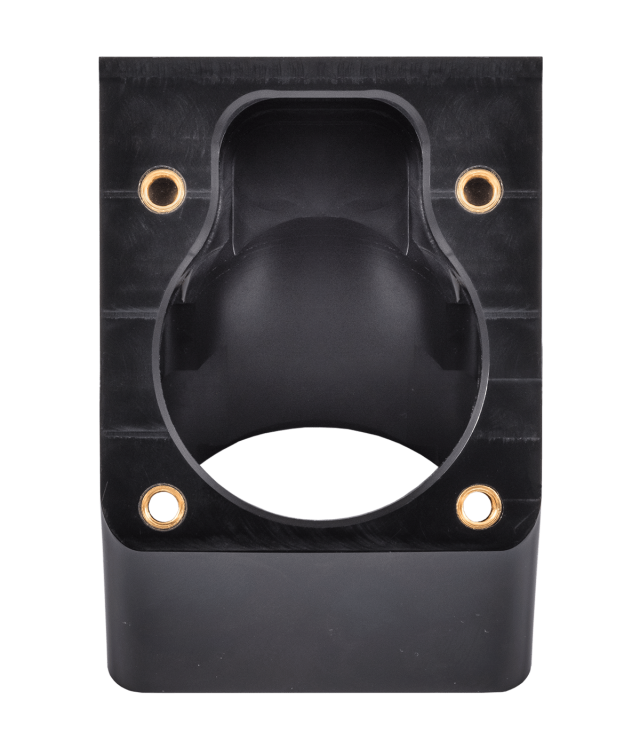

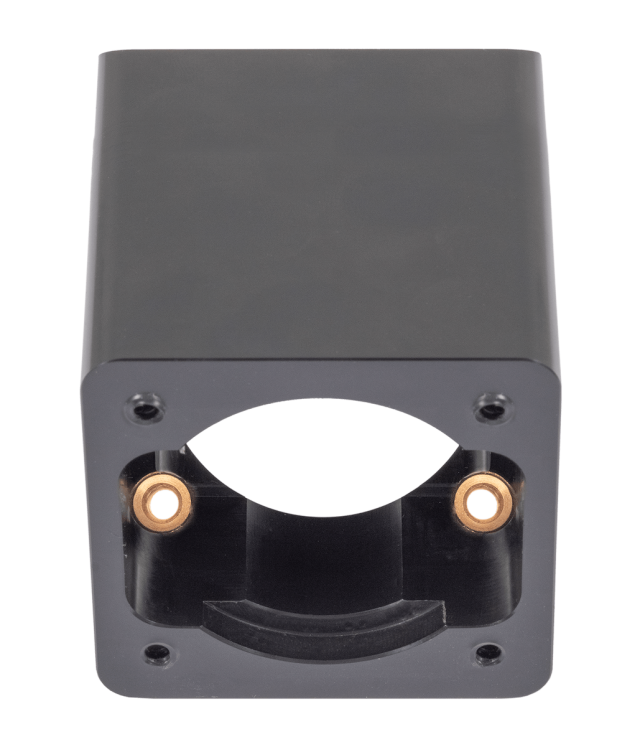

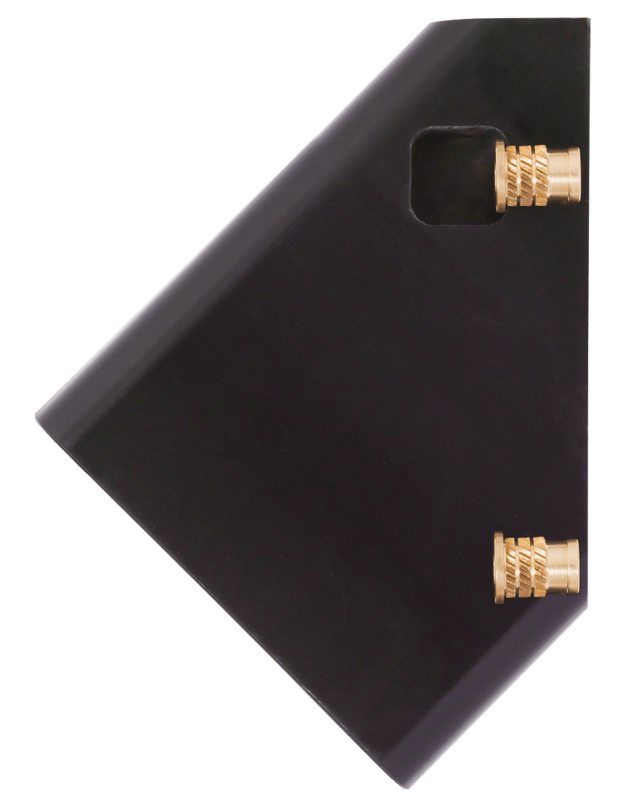

Knurled brass threaded inserts

Providing secure fixing to panels

The PowerSyntax 45 is attached to panels through special brass threaded inserts. Their knurled bands on the outside will grip the plastic of the base element as the screws are tightened into the insert.
