Powersafe Powerlock Full Set of 5 x 500 Amp Panel Mount Drain Connectors T5 (Old UK)

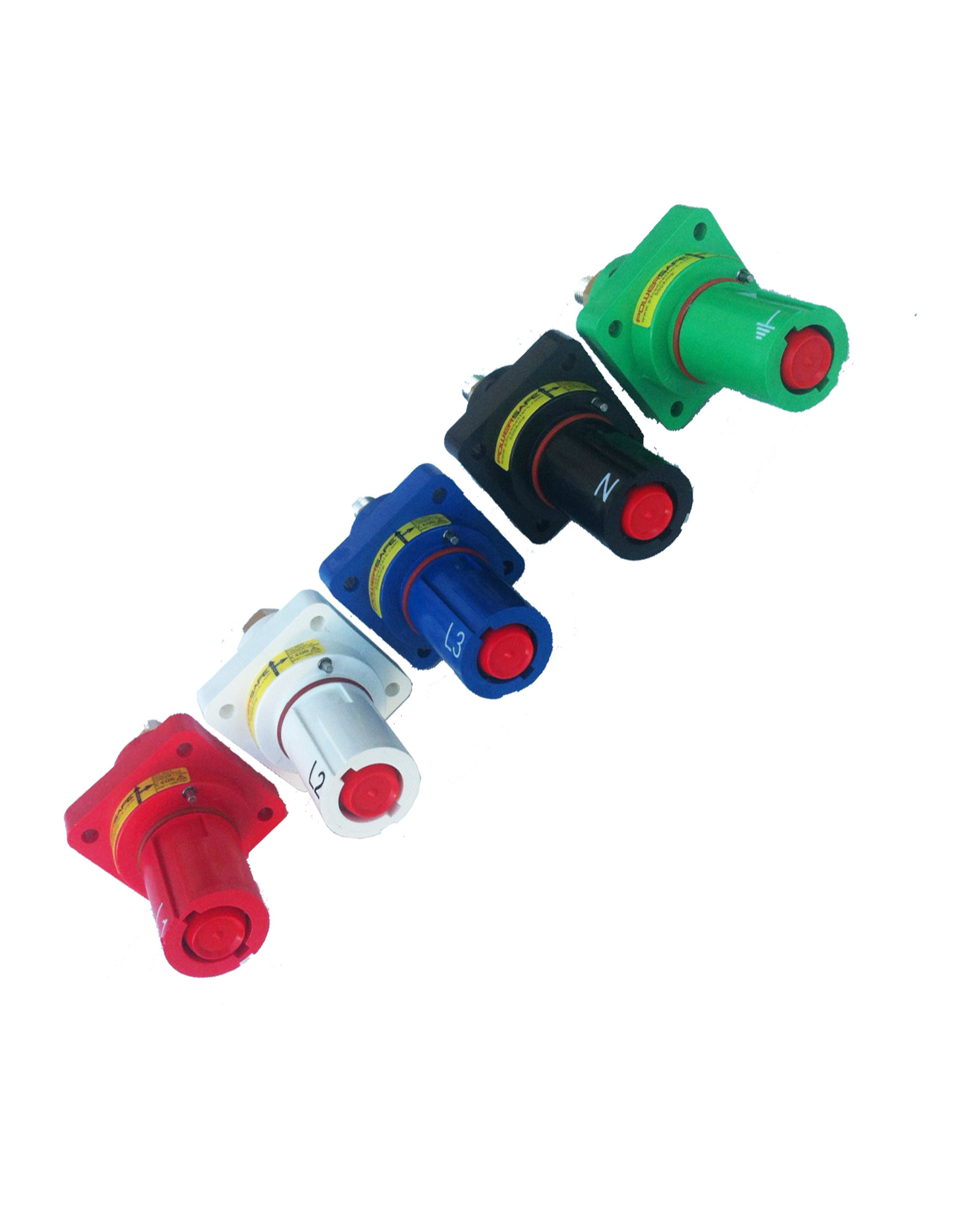

Powersafe Full Set (Old UK Colours) Image used for illustration purposes only**
5 x 500Amp Panel Mount Panel Drain T5
Part Code: SPD0001 Green Code 8430
Part Code: SPD0006 Neutral Black Code 9226
Part Code: SPD0007 Line1 Red Code 9500
Part Code: SPD0008 Line 2 Yellow Code 9501
Part Code: SPD0010 Line 3 Blue Code 9502

Powersafe are available in Source & Drain format. Powerlock source connector has a male pin and the drain connector has a female receptacle.

Powersafe Panel Mounts are electrical industrial sockets for generators, batteries, busbars, switchgear and power distribution boxes. The powerlock panel mounts are available for all three phases plus neutral and earth. Powersafe Sockets have the same mechanical locking system as their inline counterparts; secure coupling of plug and socket is achieved through an innovative mechanical locking system that disengages with a simple release key. The electrical industrial sockets are compatible with other manufacturer’s powerlock panel mount connectors.

Connections are secured with an M12 threaded post termination to a standard cable lug. The industrial sockets are rated either 500 amp (T5) or 800 amp (T8). The standard connector is mounted to a panel through 4 fixing holes on the flange, panel cut-out drawing details are available on the Technical Drawings tab. As an alternative, flange holes can be fitted with M6 threaded inserts for either front or rear fixing.

• 500A sockets are manufactured with brass with silver plating (400 amp - 500 amp)
• 800A sockets are manufactured using copper with silver plating (660 amp - 800 amp)
• Buy fully assembled with: gasket, M12 threaded post termination, M12 nut and spring washer.
