Powersafe Powerlock Full Set of 5 x 500Amp Line Drain Set Screw 120 mm2 M40A (Old UK)

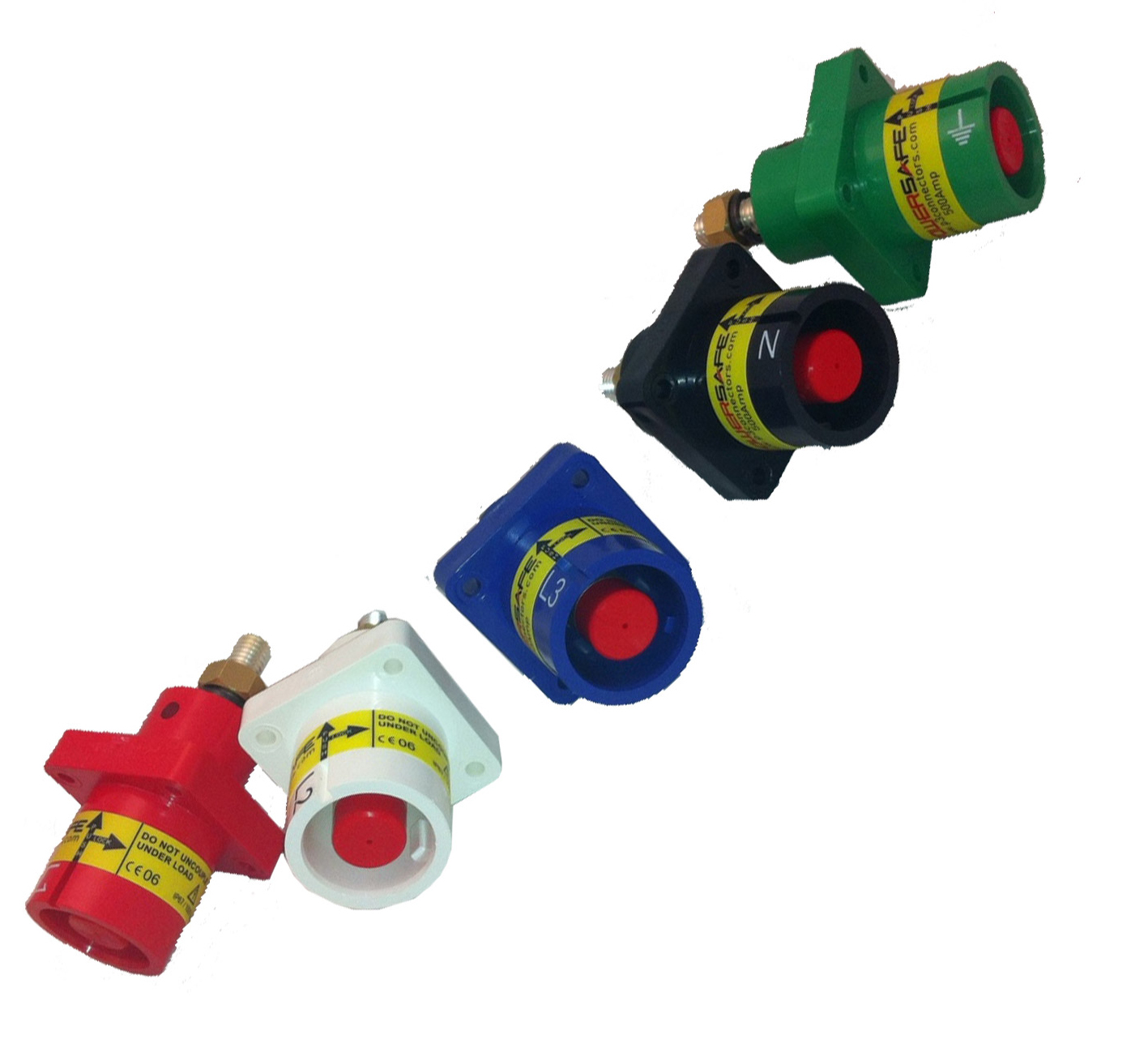

Powersafe Full Set (Old UK Colours) Image used for illustration purposes only**
5 x 500Amp Line Drain Powerlock compatible M40A 120 mm2 Set Screw Termination 120mm M40A (Reducers Available)

Item Code: SLD0005 Green Code: 8450
Item Code: SLD0006 Neutral Black Code: 9222
Item Code: SLD0007 Line 1 Red Code: 9223
Item Code: SLD0008 Line 2 Yellow Code: 10076
Item Code: SLD0010 Line 3 Blue Code: 10077

Powersafe is rated at 500A – higher than the usual 440A single pole device. 500A connectors are available with Set Screw Termination for power cables up to 150mm CSA. Powersafe also offers 800A connectors – higher than the standard 660A powerlock connectors. 800A industrial plugs are available with Crimp Termination for larger cable sections up to 300mm CSA



Phase 3’s Powerlock connectors are of the highest rated, safest and finest quality Powerlock type plug available. Powersafe are used by the power distribution, events, military and cable assembly industries worldwide. Powersafe Earth inline connectors easily terminate to copper cable using either industry standard crimp tools or set-screw contacts. Secure coupling of the three phase plugs and sockets is achieved through an innovative mechanical locking system that disengages with a simple release key.

Benefits of Powersafe Inline Connectors

• Mechanically Keyed to eliminate the possibility of cross mating
• Secondary Locking prevent unintentional uncoupling under load
• Finger-proof protection against electric shock IP2X
• Waterproof & Dustproof to IP67 rated
• Colour Coded for easy identification
• Innovative contact band allows higher rating (400A > 500A, 660A > 800A)
• Contact band cannot come out
• High Impact Insulator (no glass used & flame retardant)
• Field Installation no special tools required
• Integral Cable Strain Relief
• Daisy Chain Capability facilitates flexible stock cable lengths
• Large Cable Range 25mm² - 300mm²
